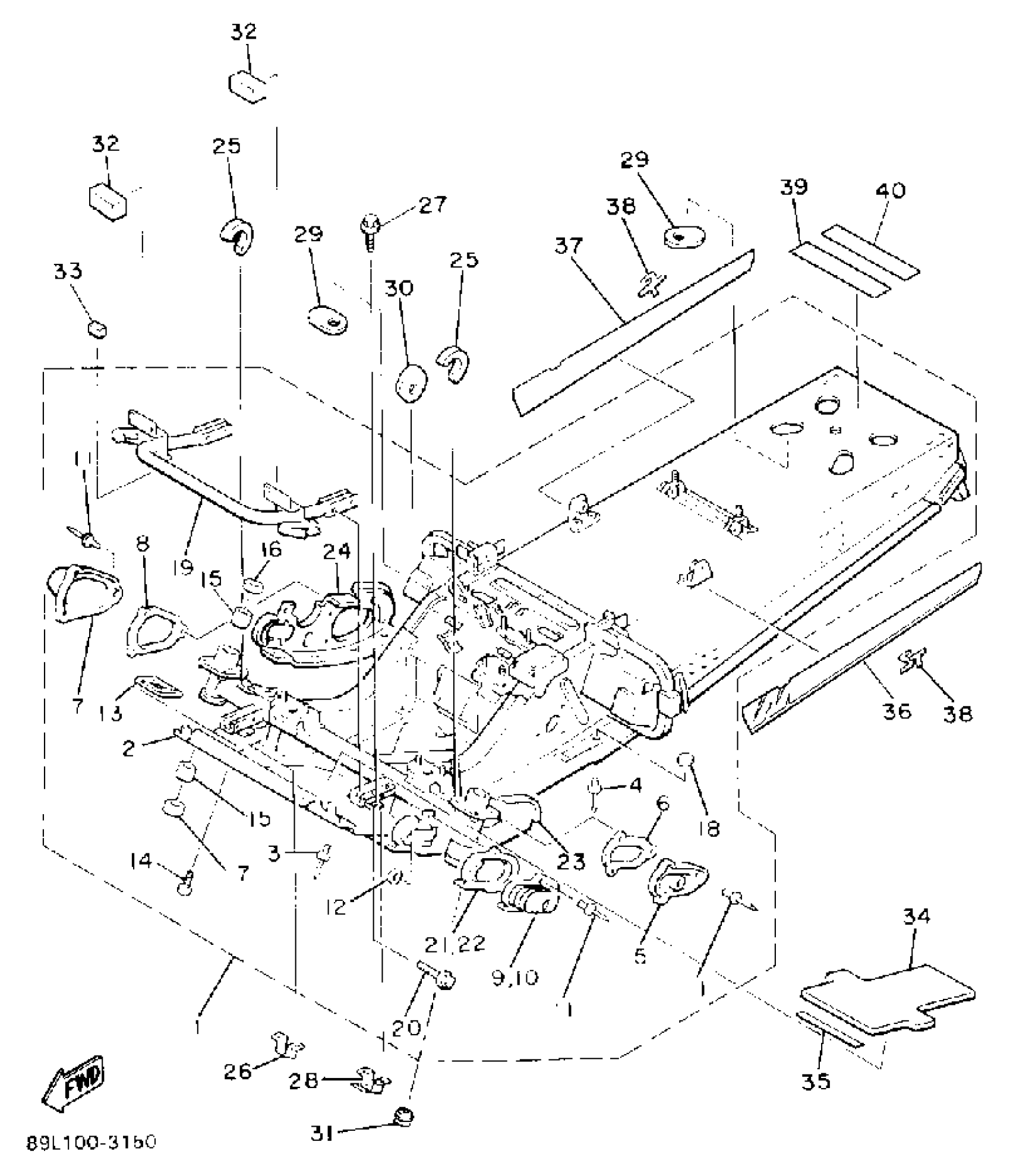

Yamaha EX570STT (EXCITER II ST) 1993 FRAME Diagram
#
1
FRAME
89L-21910-00-00
Unavailable
2
. PANEL, SUB FRAME 1
86M-21912-00-00
Unavailable
3
RIVET, BLIND
90267-48018-00
$9.49
4
RIVET, BLIND
90267-48060-00
$8.49
5
COVER 1
8M6-2198F-00-00
$31.99
6
SPACER
8M6-21998-00-00
$3.28
7
. COVER, STEERING
82M-23818-00-00
Unavailable
8
. WASHER 2
82M-77526-00-00
Unavailable
9
. COVER 1 (LH)
82M-2198F-00-00
Unavailable
10
. COVER 2 (RH)
82M-2198G-00-00
Unavailable
11
RIVET, BLIND (8K1)
90267-40076-00
$8.49
12
WASHER, PLATE
90201-04027-00
$3.02
13
PANEL, SUB FRAME 6
8M6-21917-00-00
Unavailable
14
SCREW, WITH WASHER
90159-05137-00
Unavailable
15
BUSH, BIMETAL FORMED (8M6)
90384-36134-00
$11.49
16
OIL SEAL (8M6)
93102-36232-00
Unavailable
17
OIL SEAL (8M6)
93103-36117-00
Unavailable
18
SPACER
80F-21998-00-00
Unavailable
19
. BUMPER, FRONT 2
84M-77512-01-00
Unavailable
20
BOLT, FLANGE
95817-08035-00
Unavailable
21
. PLATE, STRING BRACKET 1 (L, H)
82M-2195E-00-00
Unavailable
22
. PLATE, STRING BRACKET 2 (R, H)
82M-2195F-00-00
Unavailable
23
PANEL, SUB-FRAME 5 (L.H)
86N-21916-00-00
Unavailable
24
PANEL, SUB-FRAME 6 (R.H)
86M-21917-00-00
Unavailable
25
DAMPER, NOISE 17
82M-77277-00-00
Unavailable
26
REINFORCEMENT, SUB FRAME 2
82M-21938-00-00
Unavailable
27
BOLT, FLANGE
95812-06010-00
Unavailable
28
REINFCMNT,SUB.FR 2
84N-21938-01-00
Unavailable
29
PATCH 5
82M-21965-00-00
Unavailable
30
PATCH 5
88R-21965-00-00
Unavailable
31
PLUG(2GU)
90338-12192-00
Unavailable
32
PROTECTOR 5
84M-77555-00-00
Unavailable
33
TAPE, 5
85L-7717J-00-00
Unavailable
34
SHIELD, HEAT
86M-2199H-00-00
Unavailable
35
TAPE 3
8V0-7717G-00-00
Unavailable
36
EMBLEM 1
8AV-77351-00-00
Unavailable
37
EMBLEM 2
8AV-77352-00-00
Unavailable
38
EMBLEM 3
89L-77143-00-00
Unavailable
39
EMBLEM 1
89L-77351-00-00
Unavailable
40
LABEL, WARNING 2
88X-77762-10-00
Unavailable
