- EX570STT (EXCITER II ST) 1993
ENGINE BRACKET

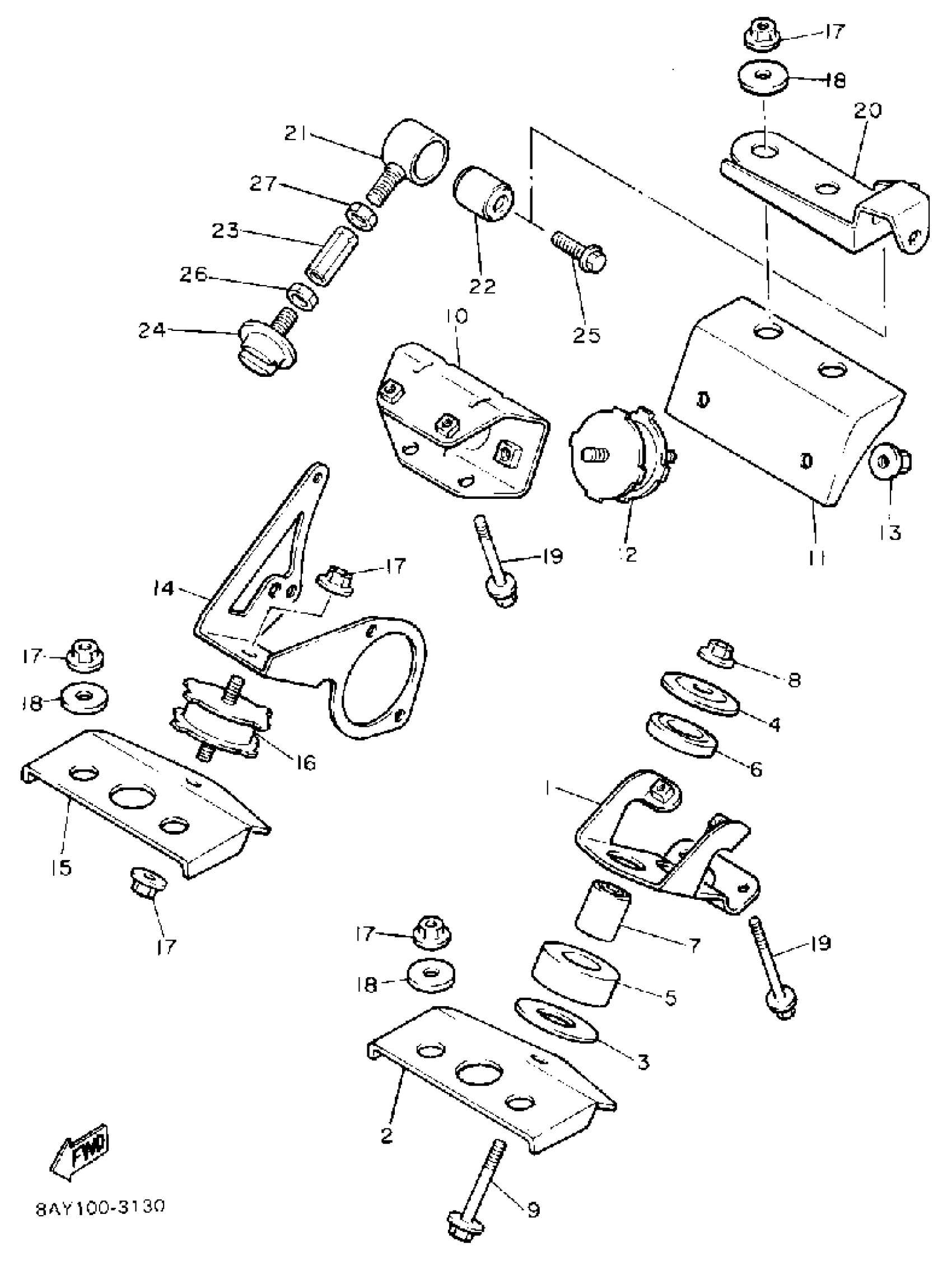

Yamaha EX570STT (EXCITER II ST) 1993 ENGINE BRACKET Diagram
#
Description
Price
1
BRACKET, FRONT UPPER 1
82M-21415-00-00
Unavailable
2
BRACKET, FRONT LOWER 1
82M-21417-00-00
Unavailable
3
WASHER (888)
90201-10151-00
Unavailable
4
WASHER, CONICAL SPRING
90208-10034-00
Unavailable
5
DAMPER, RUBBER 1
8U9-21485-00-00
Unavailable
6
DAMPER 2
8U9-21486-00-00
Unavailable
7
BUSH, SOLID
90380-10113-00
Unavailable
8
NUT, FLANGE(3BM)
95704-10500-00
$4.29
9
BOLT, FLANGE(87Y)
95817-10055-00
$5.60
10
BRACKET, REAR UPPER 1
82M-21425-00-00
Unavailable
11
BRACKET, REAR LOWER 1
82M-21427-01-00
Unavailable
12
DAMPER 2
8M6-21486-02-00
Unavailable
13
NUT, FLANGE(3BM)
95704-10500-00
$4.29
14
BRACKET, FRONT UPPER 2
82M-21416-00-00
Unavailable
15
BRACKET, FRONT LOWER 1
82M-21417-00-00
Unavailable
16
DAMPER 2
8M6-21486-02-00
Unavailable
17
NUT, FLANGE(3BM)
95704-10500-00
$4.29
18
WASHER, PLATE (856)
90201-10321-00
Unavailable
19
BOLT, FLANGE
95817-08075-00
Unavailable
20
BRACKET 1
8AY-2148U-00-00
Unavailable
21
BRACKET 2
8AY-2148V-00-00
Unavailable
22
DAMPER, RUBBER 1
89A-21485-00-00
Unavailable
23
SHAFT
8AY-2148A-00-00
Unavailable
24
DAMPER
8AY-21486-00-00
Unavailable
25
BOLT, FLANGE
95814-10040-00
Unavailable
26
NUT, FLANGE(3BM)
95704-10500-00
$4.29
27
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
