- EX570STT (EXCITER II ST) 1993
ELECTRICAL 1

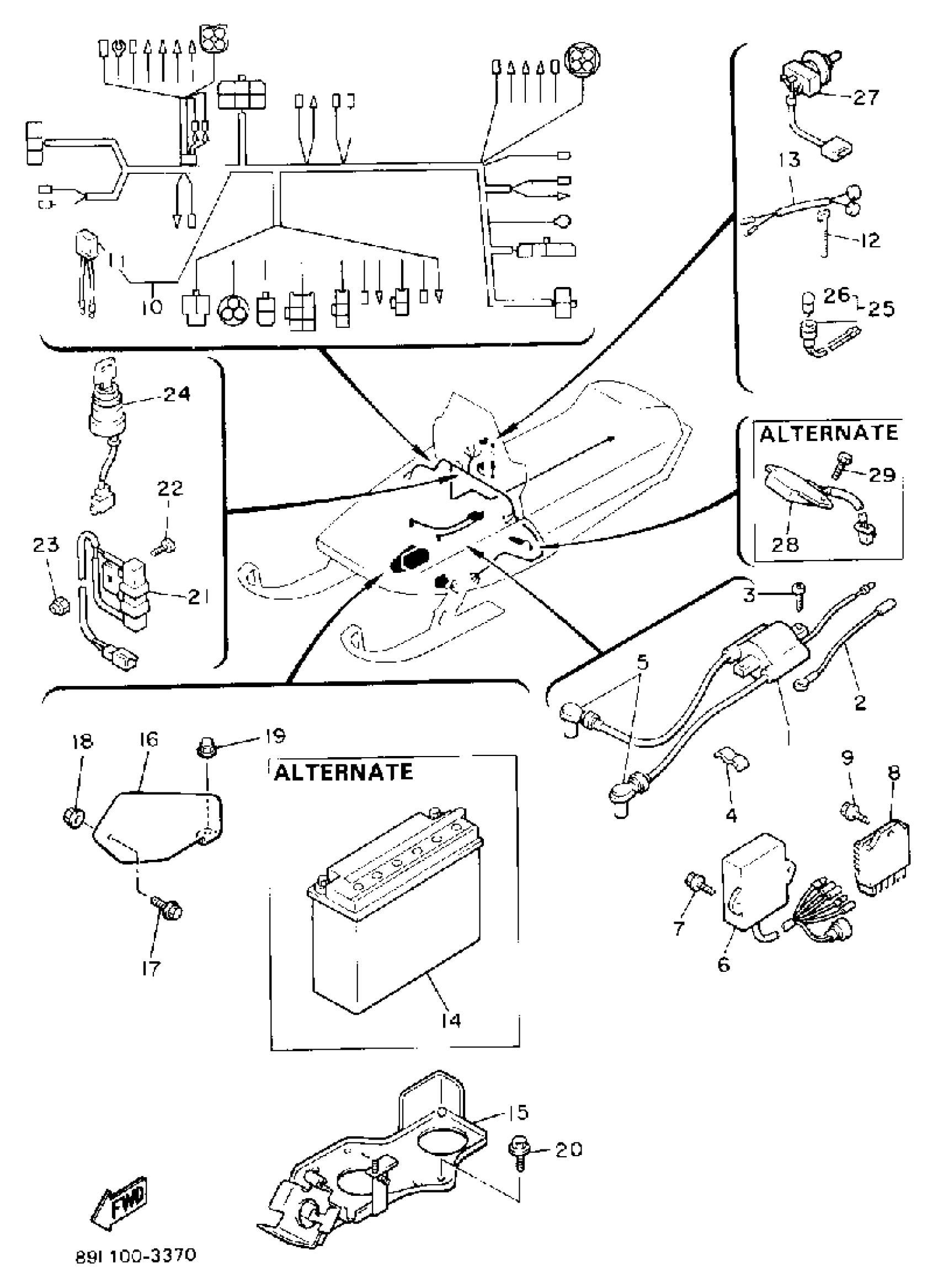

Yamaha EX570STT (EXCITER II ST) 1993 ELECTRICAL 1 Diagram
#
1
IGNITION COIL ASSY
85T-82310-06-00
$79.99
2
WIRE, SUB-LEAD
87D-82318-00-00
Unavailable
3
SCREW, TAPPING
97707-60525-00
$8.49
4
CLAMP, CORD
861-82361-00-00
Unavailable
5
PLUG CAP ASSY
8DG-82370-00-00
$49.99
6
C.D.I. UNIT ASSEMBLY
8AV-85540-00-00
Unavailable
7
BOLT, FLANGE
95817-06016-00
$2.75
8
RECTIFIER & REGULATOR ASSY
89A-81960-00-00
$95.99
9
BOLT, FLANGE
95817-06012-00
$1.43
10
WIRE HARNESS ASSEMBLY
8AW-82590-00-00
Unavailable
11
CHECKER, PILOT LAMP
38W-85774-00-00
Unavailable
12
BAND, SWITCH CORD
25G-83936-01-00
$4.78
13
WIRE, SUB-LEAD
80N-82319-00-00
Unavailable
14
YB16ALA2 YUASA BATTERY
YB1-6ALA2-00-00
Unavailable
15
BRACKET, BATTERY
88S-2199G-00-00
Unavailable
16
. SHIELD, HEAT
88S-2199H-01-00
Unavailable
17
BOLT, FLANGE
95812-06010-00
Unavailable
18
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
19
NUT, U FLANGE
95604-06200-00
Unavailable
20
BOLT, FLANGE
95812-06010-00
Unavailable
21
RESISTOR ASSEMBLY
88T-85370-00-00
Unavailable
22
SCREW, BIND (705)
98980-06016-00
Unavailable
23
NUT, NYLON
95707-06300-00
Unavailable
24
MAIN SWITCH ASSY
8K1-82510-21-00
Unavailable
25
PILOT LIGHT ASSEMBLY 1
8V0-84301-00-00
Unavailable
26
. BULB (12V5W)
8V0-85353-00-00
Unavailable
27
SWITCH
88H-82917-00-00
Unavailable
28
VOLTAGE REGULATOR ASSY
82M-81910-A0-00
Unavailable
29
BOLT, HEXAGON
97017-06030-00
Unavailable
