Description

Price

1

BUMPER, FRONT 1

82M-77511-00-00

Unavailable

2

SCREW, W/WASHER (4L0)

90159-06060-00

$8.49

3

BUMPER, REAR 1

89L-77541-00-00

Unavailable

4

SCREW,FLAT

98707-08025-00

Unavailable

5

NUT, FLANGE

95704-08500-00

$8.49

6

END, BUMPER

8N8-77523-00-00

Unavailable

7

END, BUMPER

8N8-77524-00-00

Unavailable

8

SCREW, PAN

98507-06014-00

$8.49

9

WASHER, SPRING

92995-06100-00

Unavailable

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

BUSH, RUBBER 2

89L-77516-00-00

Unavailable

12

FLAP

8V9-77595-00-00

Unavailable

13

RIVET, BLIND (8R6)

90267-48086-00

$4.14

14

PROTECTOR 1

82M-77551-00-00

Unavailable

15

RIVET (8M6)

90269-04025-00

$8.49

16

PROTECTOR 4

82M-77554-01-00

Unavailable

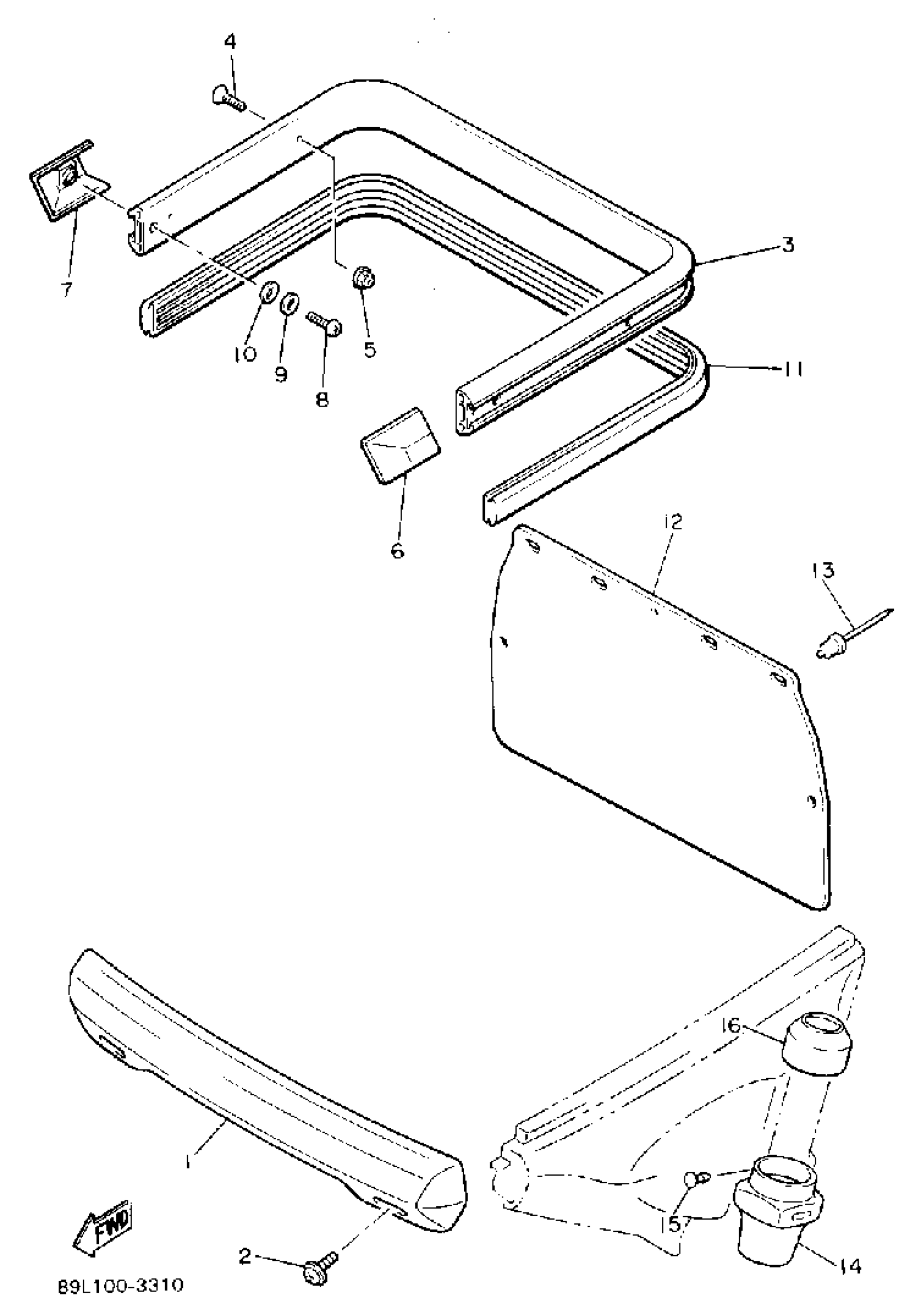

Yamaha EX570STT (EXCITER II ST) 1993 BUMPER Diagram

BUMPER, FRONT 1

SCREW, W/WASHER (4L0)

BUMPER, REAR 1

SCREW,FLAT

NUT, FLANGE

END, BUMPER

END, BUMPER

SCREW, PAN

WASHER, SPRING

WASHER, PLAIN (646)

BUSH, RUBBER 2

FLAP

RIVET, BLIND (8R6)

PROTECTOR 1

RIVET (8M6)

PROTECTOR 4
