Description

Price

1

ELECTRIC START KIT

89L-W8180-01-KT

Unavailable

2

HOSE (L340)

90445-08684-00

$4.29

3

GROMMET 152845180000

90480-12013-00

$8.49

4

. PLATE, BATTERY FITTING

84N-82136-00-00

Unavailable

5

. SCREW, FITTING

84N-82133-00-00

Unavailable

6

NUT, NYLON

95707-06300-00

$3.50

7

WIRE PLUS LEAD

84N-82115-00-00

Unavailable

8

SEAT, BATTERY

84N-82122-00-00

$6.99

9

. SHIELD, HEAT

88S-2199H-01-00

Unavailable

10

. BRACKET, BATTERY

8V0-82128-00-00

Unavailable

11

BOLT (682)

97095-05010-00

Unavailable

12

WASHER, PLAIN (646)

92990-05600-00

$0.80

13

FUSE HOLDER ASSY

1E6-82150-00-00

Unavailable

14

FUSE (10A)

1E6-82151-00-00

$7.99

15

. STARTER RELAY ASSY

8J9-81940-10-00

Unavailable

16

WASHER, SPRING

92995-06100-00

Unavailable

17

NUT, HEXAGON

95380-06600-00

Unavailable

18

STARTING MOTOR ASSY

8BB-81800-02-00

Unavailable

19

BOLT, FLANGE(JF2)

95817-08080-00

Unavailable

20

. WIRE, MINUS LEAD

8AW-82116-00-00

Unavailable

21

WIRE,LEAD

8CL-82117-00-00

Unavailable

22

INDICAT0R 1

8V0-77741-20-00

Unavailable

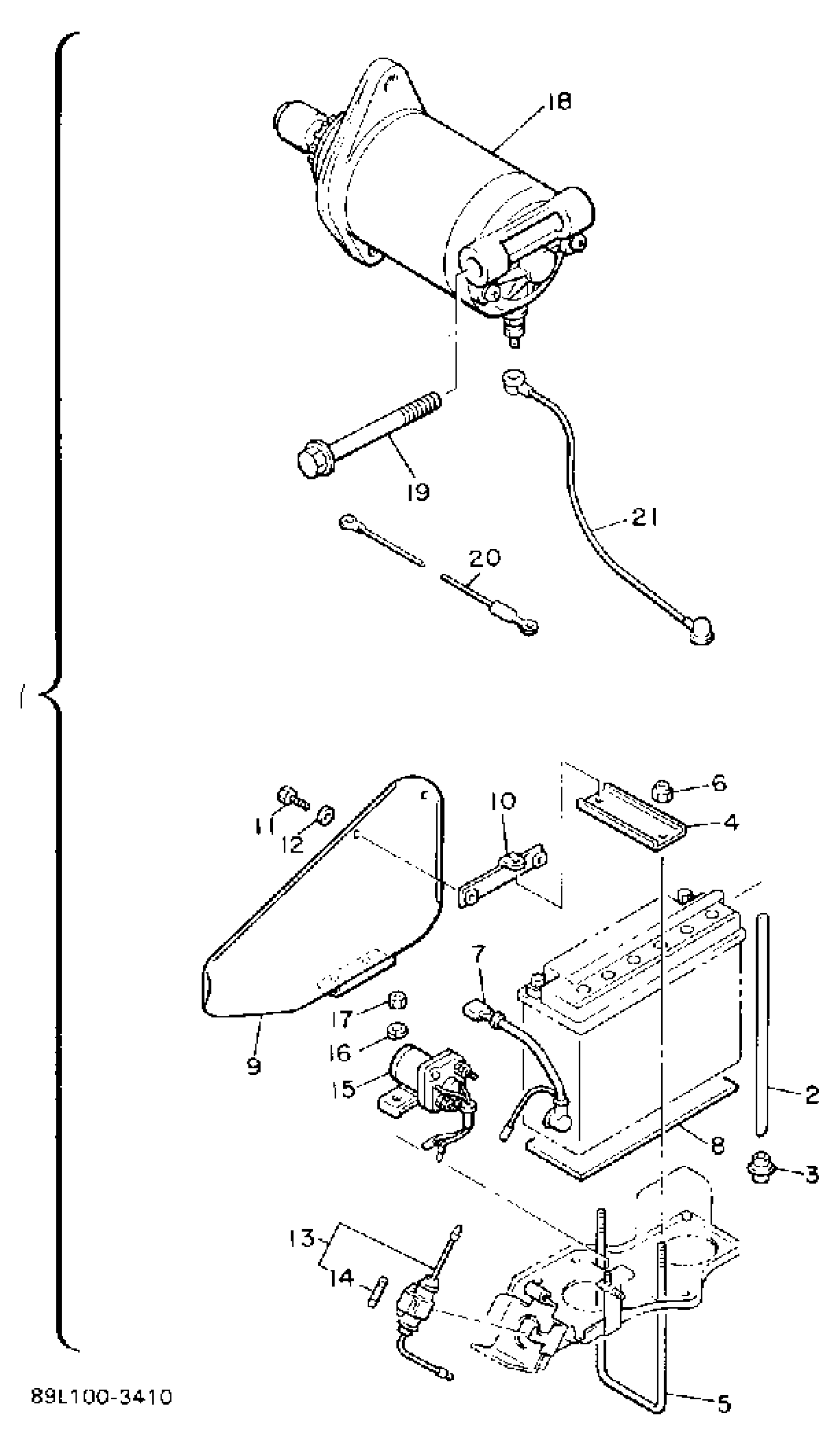

Yamaha EX570STT (EXCITER II ST) 1993 ALTERNATE ELECTRIC STARTER KIT Diagram

ELECTRIC START KIT

HOSE (L340)

GROMMET 152845180000

. PLATE, BATTERY FITTING

. SCREW, FITTING

NUT, NYLON

WIRE PLUS LEAD

SEAT, BATTERY

. SHIELD, HEAT

. BRACKET, BATTERY

BOLT (682)

WASHER, PLAIN (646)

FUSE HOLDER ASSY

FUSE (10A)

. STARTER RELAY ASSY

WASHER, SPRING

NUT, HEXAGON

STARTING MOTOR ASSY

BOLT, FLANGE(JF2)

. WIRE, MINUS LEAD

WIRE,LEAD

INDICAT0R 1
