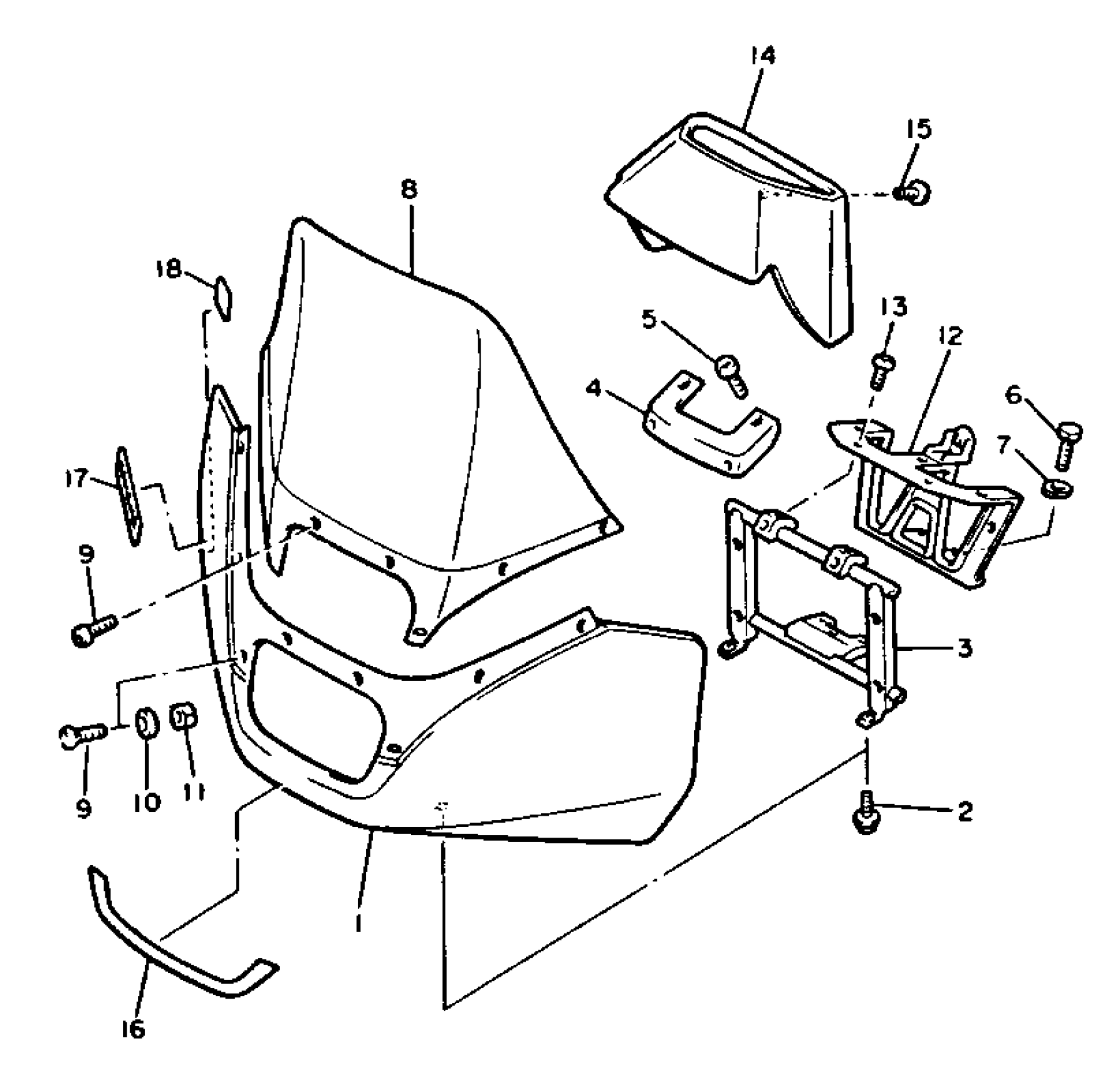

Yamaha EX570S (EXCITER II) 1992 WINDSHIELD Diagram

#

Description
Price

1

FAIRING

88R-77231-00-00

Unavailable

2

SCREW, WITH WASHER(35R)

90159-06093-00

$8.49

3

SRAY, FAIRING

88R-77241-00-00

Unavailable

4

BRACKET, WINDSHIELD (L.H)

88R-77221-00-00

Unavailable

5

SCREW, BINDING

98907-06008-00

$8.49

6

BOLT, HEXAGON

97017-06030-00

$3.61

7

WASHER, SPRING

92907-06100-00

$4.25

8

WINDSHIELD COMP.

88R-77210-00-00

Unavailable

9

SCREW, ROUND HEAD(88R)

90150-05028-00

$4.29

10

WASHER, PLATE 8067717800

90201-05029-00

$8.49

11

NUT, HEXAGON

95317-05600-00

$2.34

12

BRACKET, METER

82M-83519-01-00

Unavailable

13

SCREW, BINDING

98907-06008-00

$8.49

14

COVER, HEADLIGHT

88R-77251-00-00

Unavailable

15

SCREW, BINDING

98907-05016-00

$8.49

16

STRIPE 1

88R-77281-00-00

Unavailable

17

EMBLEM 16

89F-77372-00-00

Unavailable

18

INDICATOR, COCK

86M-24153-00-00

Unavailable
