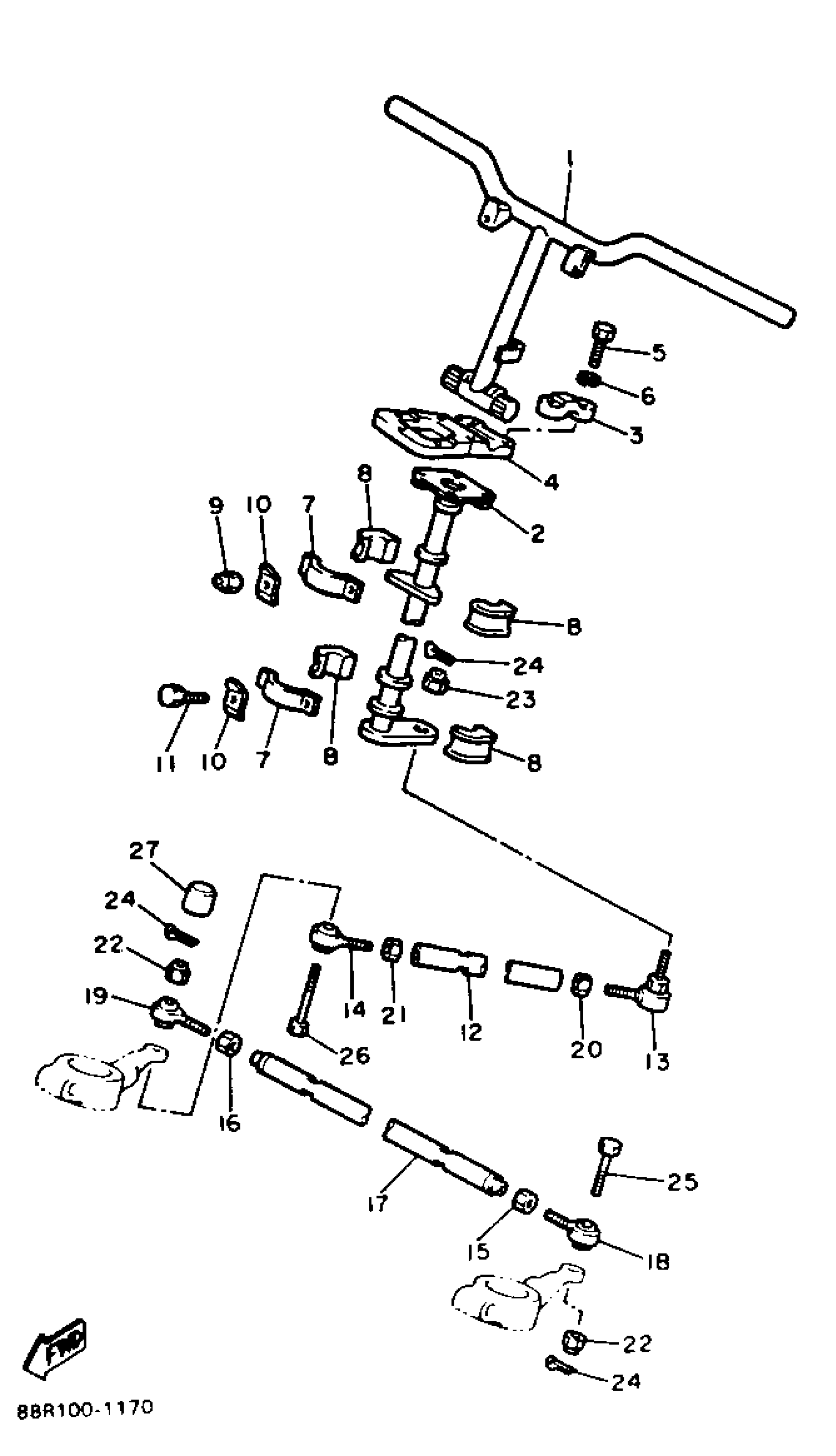

Find the part on the Steering diagram for your 1992 Yamaha Exciter Ii (EX570S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha Exciter Ii (EX570S) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

88R-23811-00-00

1
Out of stock

2

COLUMN, STEERING 2

8AY-23813-00-00

1
Out of stock

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

1
Out of stock

4

HOLDER, HANDLE UPPER

8V0-23814-01-00

1
Out of stock

5

BOLT, HEXAGON

97017-08055-00

1
Out of stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

7

BRACKET, STEERING LOWER

84M-23868-00-00

—
Out of stock

8

BEARING, STEERING

8F3-23812-00-00

1
Out of stock

9

NUT, NYLON

95717-08300-00

1
Out of stock

10

WASHER, LOCK 1

8AC-23894-01-00

1
Out of stock

11

BOLT, HEXAGON

97017-08020-00

1
Out of stock

12

ROD, STEERING RELAY

82M-23821-00-00

1
Out of stock

13

JOINT, UNIVERSAL 1

86X-23841-00-00

1
Out of stock

14

JOINT, UNIVERSAL 3

87S-23847-01-00

1
Out of stock

15

NUT (682)

95380-10700-00

1
Out of stock

16

NUT, HEXAGON (8A5)

90170-10186-00

—
Out of stock

17

ROD,TIE

89X-23831-00-00

1
Out of stock

18

JOINT, UNIVERSAL 2

87S-23845-01-00

—
Out of stock

19

JOINT, UNIVERSAL 3

87S-23847-01-00

1
Out of stock

20

NUT (682)

95380-10700-00

1
Out of stock

21

NUT, HEXAGON (8A5)

90170-10186-00

—
Out of stock

22

NUT, NYLON

95707-10300-00

—
Out of stock

23

NUT, SELF-LOCKING (8J8)

90185-10085-00

—
Out of stock

24

PIN, COTTER

91490-25020-00

—
Out of stock

25

BOLT, WITH HOLE

90102-10031-00

—
Out of stock

26

BOLT

90109-10767-00

1
Out of stock

27

SPACER

82M-23858-00-00

1
Out of stock
