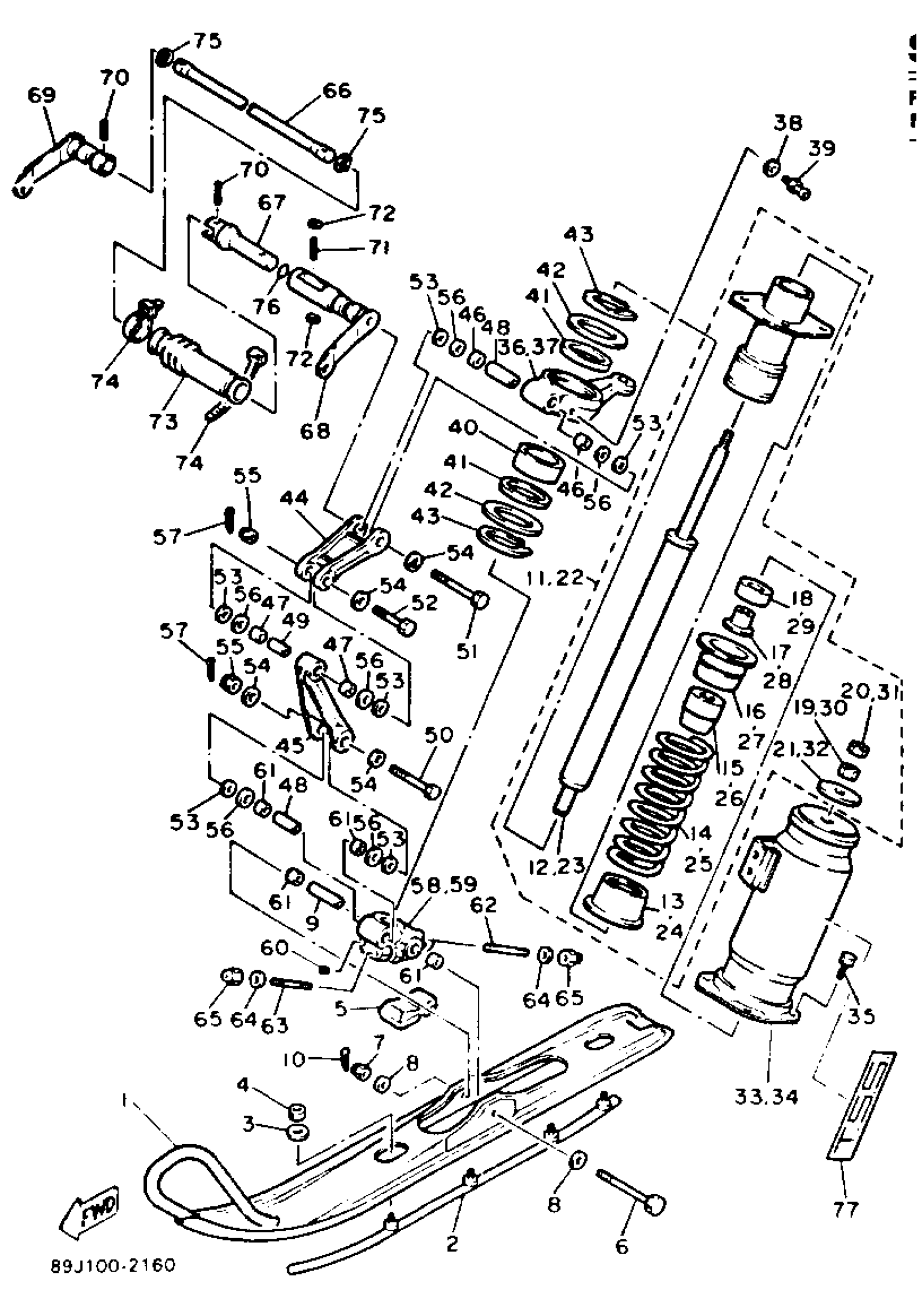

Find the part on the Ski diagram for your 1992 Yamaha Exciter Ii (EX570S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha Exciter Ii (EX570S) Ski Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1 (88F-23710-00-00)

88F-23710-01-00

1
Out of stock

2

SKI RUNNER,1

VMX-23731-01-XX

1
Out of stock

3

.. WASHER, PLATE

92990-08600-00

1
Out of stock

4

NUT, U

95617-08100-00

1
Out of stock

5

STOPPER 1

88T-23743-00-00

1
Out of stock

6

BOLT, WITH HAUL (31A)

90102-10050-00

1
Out of stock

7

NUT, NYLON

95707-10300-00

1
Out of stock

8

WASHER(6TA)

92907-10600-00

1
Out of stock

9

COLLAR (8V0)

90387-106J3-00

1
Out of stock

10

PIN, COTTER

91490-20025-00

1
Out of stock

11

ABSORBER ASSEMBLY 1

88R-2376A-00-00

1
Out of stock

12

DAMPER SUB ASSY

8AV-22401-00-00

1
Out of stock

13

SEAT, SPRING 2

82M-23777-00-00

—
Out of stock

14

. SPRING, COMPRESSION

90501-703G8-00

1
Out of stock

15

. BUMP, STOP

87F-22493-00-00

1
Out of stock

16

PLATE, BACK UP

8AB-23788-00-00

1
Out of stock

17

COLLAR(82M)

90387-084R1-00

—
Out of stock

18

WASHER

82M-23779-00-00

—
Out of stock

19

. NUT

90170-08220-00

1
Out of stock

20

NUT(6L2)

95333-08600-00

—
Out of stock

21

WASHER, PLATE(82M)

90201-080L1-00

—
Out of stock

22

ABSORBER ASSEMBLY 2

88R-2377A-00-00

1
Out of stock

23

DAMPER SUB ASSY

8AV-22401-00-00

1
Out of stock

24

SEAT, SPRING 2

82M-23777-00-00

—
Out of stock

25

. SPRING, COMPRESSION

90501-753G9-00

1
Out of stock

26

. BUMP, STOP

87F-22493-00-00

1
Out of stock

27

PLATE, BACK UP

8AB-23788-00-00

1
Out of stock

28

COLLAR(82M)

90387-084R1-00

—
Out of stock

29

WASHER

82M-23779-00-00

—
Out of stock

30

. NUT

90170-08220-00

1
Out of stock

31

NUT(6L2)

95333-08600-00

—
Out of stock

32

WASHER, PLATE(82M)

90201-080L1-00

—
Out of stock

33

HOLDER, ABSORBER (L.H)

87F-2376J-00-00

1
Out of stock

34

HOLDER, ABSORBER 2 (R.H)

87F-2377J-00-00

1
Out of stock

35

BOLT, HEXAGON

97017-06020-00

—
Out of stock

36

ARM, OUTSIDE 1

82M-23851-00-00

—
Out of stock

37

ARM, OUTSIDE 2 (R, H)

82M-23852-00-00

1
Out of stock

38

WASHER, PLATE (8U7)

90201-067F9-00

—
Out of stock

39

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

40

BUSH, BIMETAL FORMED (8U7)

90384-53175-00

—
Out of stock

41

OIL SEAL (8U7)

93109-53036-00

—
Out of stock

42

WASHER, PLATE(8W1)

90201-535H6-00

—
Out of stock

42

WASHER, PLATE (8L9)

90201-536A1-00

—
Out of stock

43

CIRCLIP (8L9)

93410-52061-00

—
Out of stock

44

ARM, FRONT 1

8M6-2382E-00-00

1
Out of stock

45

ARM, FRONT 2

8M6-2382F-00-00

1
Out of stock

46

BUSH, BIMETAL FORMED (8L0)

90384-14091-00

—
Out of stock

47

BUSH, BIMETAL FORMED (8L0)

90384-14096-00

—
Out of stock

48

COLLAR(89A)

90387-101Y9-00

—
Out of stock

49

COLLAR (8L0)

90387-100A4-00

—
Out of stock

50

BOLT, WITH HOLE

90102-10074-00

1
Out of stock

51

BOLT

90101-10040-00

1
Out of stock

52

BOLT, W/HOLE

90102-10073-00

1
Out of stock

53

WASHER, PLATE (8M6)

90201-105A8-00

—
Out of stock

54

WASHER, PLATE (8M6)

90201-115A7-00

—
Out of stock

55

NUT, NYLON

95707-10300-00

1
Out of stock

56

WASHER(82M)

90209-14296-00

—
Out of stock

57

PIN, COTTER

91490-20025-00

1
Out of stock

58

BRACKET 1

84M-2376E-00-00

—
Out of stock

59

BRACKET 2

84M-2377E-00-00

—
Out of stock

60

BOLT, SET (8K2)

90113-06039-00

—
Out of stock

61

BUSH, BIMETAL FORMED (8L0)

90384-14091-00

—
Out of stock

62

BOLT, STUD 3

95617-08655-00

—
Out of stock

63

BOLT, STUD 3

95617-08640-00

—
Out of stock

64

.. WASHER, PLATE

92990-08600-00

1
Out of stock

65

NUT, NYLON

95717-08300-00

—
Out of stock

66

BAR, STABILIZER FRONT

87F-2386E-00-00

1
Out of stock

67

LINK, STABILIZER FRONT

82M-2386F-00-00

1
Out of stock

68

JOINT, STABILIZER 1

82M-2385L-00-00

1
Out of stock

69

JOINT, STABILIZER 2

82M-2385M-00-00

1
Out of stock

70

PIN, DOWEL

93605-20225-00

1
Out of stock

71

PIN, DOWEL

93605-25223-00

1
Out of stock

72

SLIDER

82M-2386R-00-00

1
Out of stock

73

COVER, STABILIZER FRONT

82M-2386H-00-00

1
Out of stock

74

BAND

1UA-82591-00-00

—
Out of stock

75

CIRCLIP (4H7)

93410-23056-00

—
Out of stock

76

O-RING

93210-15751-00

1
Out of stock

77

EMBLEM 15

89F-77371-00-00

1
Out of stock
