Description

Price

1

STEERING GATE COMP.

88R-23870-00-00

Unavailable

2

BOLT, FLANGE

95817-08012-00

$5.49

3

BOLT, FLANGE

95817-06030-00

$4.29

4

NUT, NYLON

95707-06300-00

$3.50

5

CLAMP

90465-06013-00

Unavailable

6

PAD, STEERING

82M-23815-01-00

Unavailable

7

PAD,STEERING

80L-23817-02-00

Unavailable

8

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

9

WASHER(3SX)

92907-05100-00

$8.49

10

WASHER, PLAIN LARGE

92907-05200-00

$4.46

11

SCREW, PAN HEAD

98517-05030-00

$10.49

12

WASHER(3SX)

92907-05100-00

$8.49

13

WASHER(1RW)

92907-05600-00

$3.78

14

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

15

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

16

WASHER, PLAIN (646)

92990-05600-00

Unavailable

17

SPACER

8V0-23858-00-00

Unavailable

18

GROMMET

90480-17165-00

Unavailable

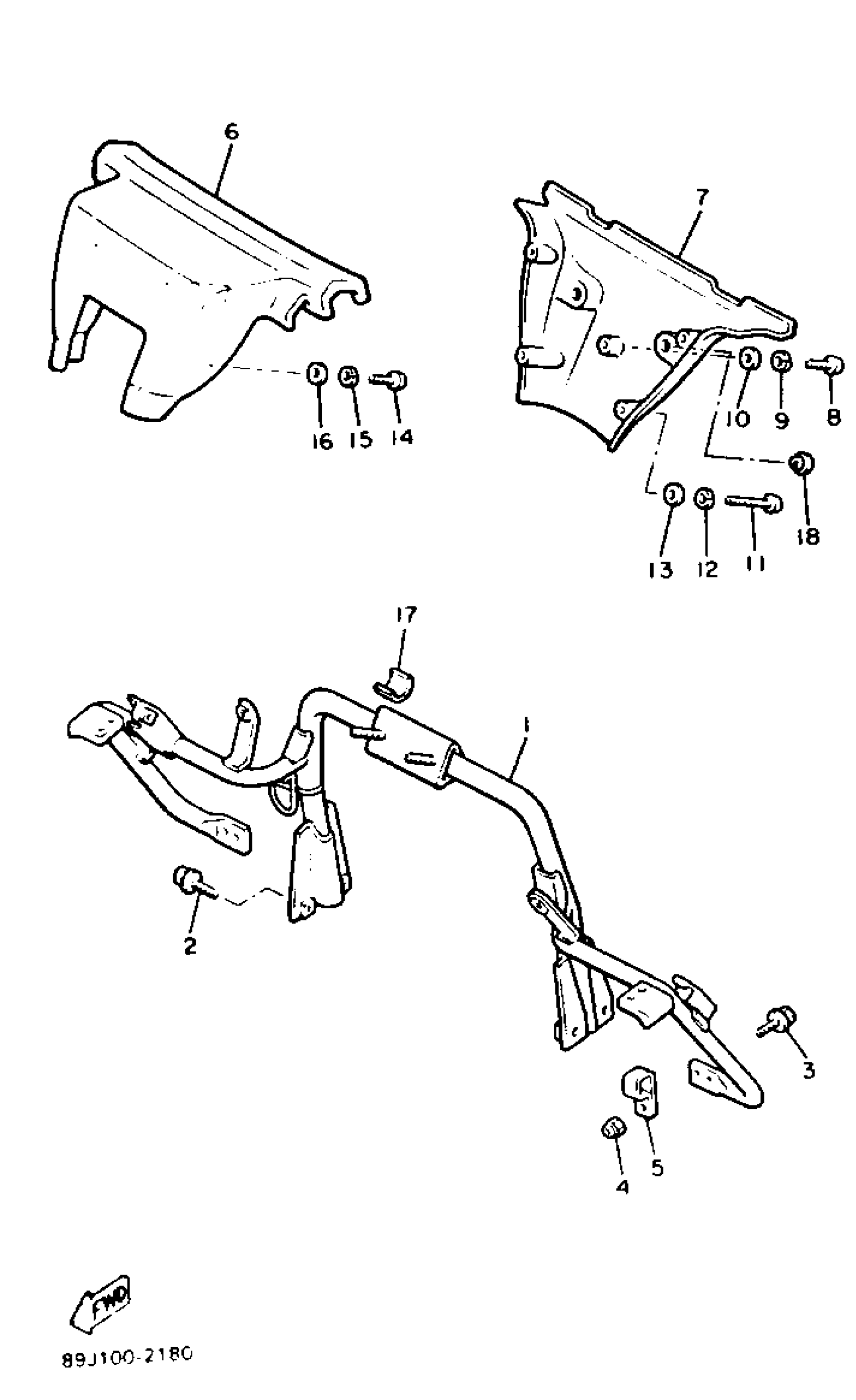

Yamaha EX570S (EXCITER II) 1992 STEERING GATE Diagram

STEERING GATE COMP.

BOLT, FLANGE

BOLT, FLANGE

NUT, NYLON

CLAMP

PAD, STEERING

PAD,STEERING

SCREW, PAN HEAD(3LA)

WASHER(3SX)

WASHER, PLAIN LARGE

SCREW, PAN HEAD

WASHER(3SX)

WASHER(1RW)

SCREW,PAN HEAD (646)

YBS67-5 WASHER, SPRING

WASHER, PLAIN (646)

SPACER

GROMMET
