RADIATOR HOSE

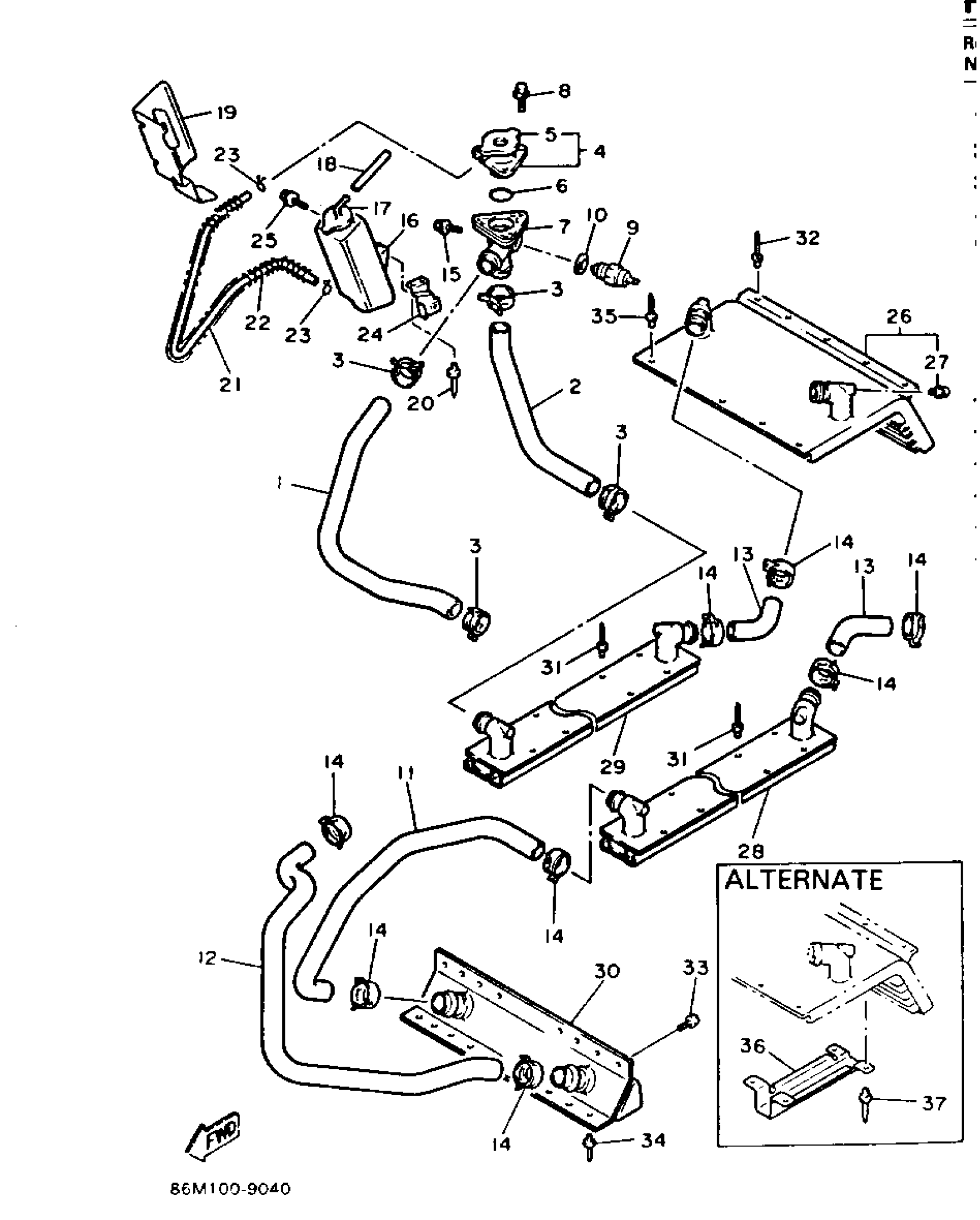

Yamaha EX570S (EXCITER II) 1992 RADIATOR HOSE Diagram
#
1
PIPE 2
86M-12482-00-00
Unavailable
2
PIPE 3
82M-12483-00-00
Unavailable
3
CLIP (8M6)
90467-28046-00
$16.99
4
SUPT, FILLER NECK
1FK-12591-00-00
Unavailable
5
CAP, RADIATOR
1B3-12462-00-00
$67.99
6
O-RING(1KT)
93210-27778-00
$8.49
7
JOINT, HOSE 1
86M-12581-00-00
Unavailable
8
BOLT, FLANGE
95817-06016-00
$2.75
9
THERMO SWITCH ASSEMBLY
83M-82560-01-00
Unavailable
10
GASKET (716)
90430-16152-00
Unavailable
11
PIPE 4
82M-12484-00-00
Unavailable
12
PIPE 5
82M-12485-01-00
Unavailable
13
PIPE 6
82M-12476-00-00
Unavailable
14
CLIP (8M6)
90467-28046-00
$16.99
15
BOLT, FLANGE
95817-06016-00
$2.75
16
TANK, RECOVERY
82M-21871-00-00
Unavailable
17
CAP
81E-21815-00-00
Unavailable
18
HOSE (L70)
90445-112E0-00
Unavailable
19
BRACKET, RECOVERY TANK
82M-21873-00-00
Unavailable
20
RIVET, BLIND
90267-48125-00
Unavailable
21
HOSE (L420)
90445-092K1-00
Unavailable
22
SPRG., COMPRESSION (8BY1)
90501-083J9-00
Unavailable
23
CLIP (8A1)
90467-09026-00
Unavailable
24
BRACKET 1
89J-1244E-00-00
Unavailable
25
BOLT, WITH WASHER(8V7)
90119-06108-00
Unavailable
26
HEAT EXCHANGER ASY
82M-12440-02-00
Unavailable
27
SCREW, BREED
82M-1247H-00-00
Unavailable
28
HEAT EXCHANGER
82M-1240E-01-00
Unavailable
29
HEAT EXCHANGER
82M-1240F-02-00
Unavailable
30
HEAT EXCHANGER ASSEMBLY 4
82M-1241A-00-00
Unavailable
31
RIVET, BLIND
90267-48060-00
Unavailable
32
RIVET, BLIND
90267-47197-00
Unavailable
33
SCREW, BINDING
98907-06012-00
Unavailable
34
RIVET, BLIND
90267-48018-00
Unavailable
35
RIVET, BLIND
90267-48117-00
Unavailable
36
PROTECTOR, FRAME
82M-21978-00-00
Unavailable
37
RIVET, BLIND
90267-48060-00
Unavailable
