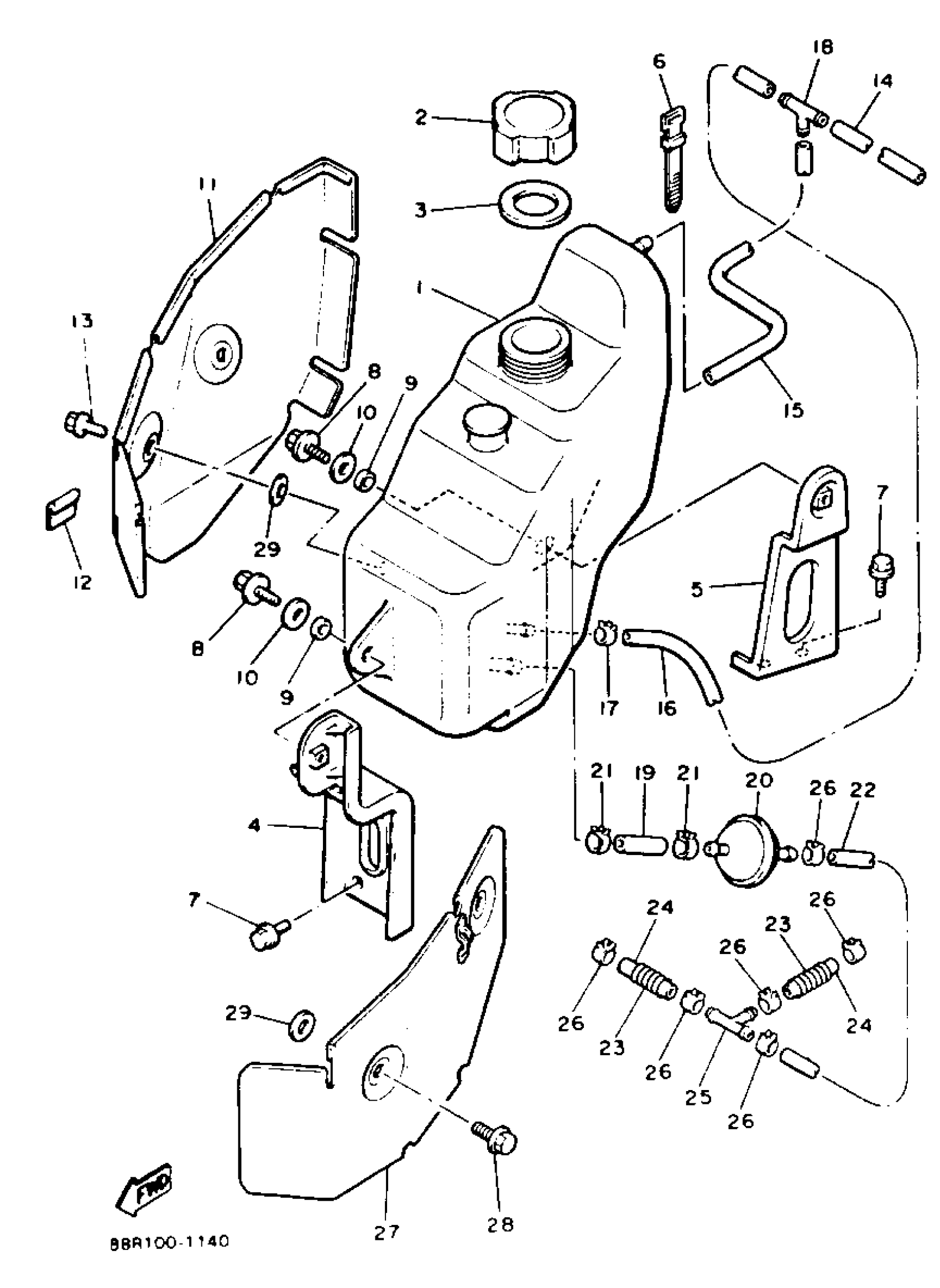

Yamaha EX570S (EXCITER II) 1992 OIL TANK Diagram
#
Description
Price
1
TANK, OIL
88R-21751-00-00
Unavailable
2
BODY, CAP
8LU-21771-00-00
$31.99
3
GASKET, TANK (867)
90430-31003-00
$10.49
4
BRACKET, OIL TANK 1
82M-2193E-00-00
Unavailable
5
BRACKET, OIL TANK 2
82M-2193F-00-00
Unavailable
6
BAND, SWITCH CORD
25G-83936-01-00
$4.78
7
BOLT, FLANGE
95817-06012-00
$1.43
8
BOLT
90109-06757-00
Unavailable
9
COLLAR
90387-06704-00
Unavailable
10
WASHER, PLATE
90201-06380-00
$0.60
11
PLATE
84M-2176E-00-00
Unavailable
12
COVER, FLANGE
88R-2175N-00-00
Unavailable
13
BOLT, FLANGE
95817-06012-00
$1.43
14
HOSE
90446-09353-00
Unavailable
15
TUBE,FLEXIBLE VINYL(85R)
91A30-05080-00
$18.99
16
HOSE
90446-09262-00
Unavailable
17
CLIP (8A1)
90467-09026-00
Unavailable
18
PIPE, JOINT
801-24376-00-00
Unavailable
19
HOSE
91A30-07036-00
Unavailable
20
HOUSING STRAINER ASSY
8G8-13410-00-00
Unavailable
21
CLIP (7K7)
90467-11044-00
Unavailable
22
TUBE, FLEXIBLE VINYL(8AK)
91A30-05039-00
Unavailable
23
SPRG., COMPRESSION (8BY1)
90501-083J9-00
Unavailable
24
TUBE,FLEXIBLE VINYL(85R)
91A30-05080-00
$18.99
25
PIPE, JOINT
801-24376-00-00
Unavailable
26
CLIP (8A1)
90467-09026-00
Unavailable
27
COVER
8AY-2172W-00-00
Unavailable
28
BOLT, FLANGE
95817-06012-00
$1.43
29
WASHER, SPECIAL 1
84M-21715-00-00
Unavailable
