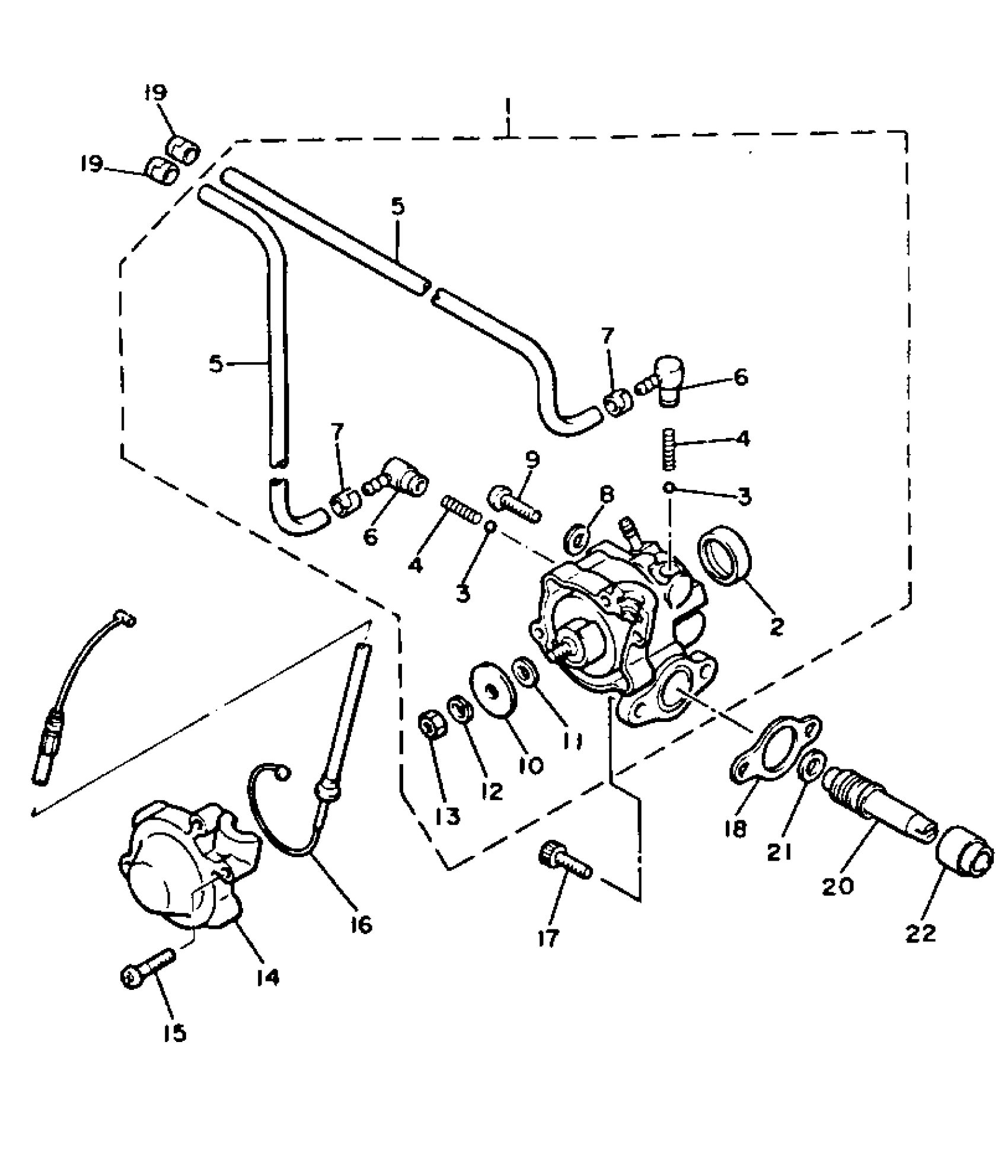

Yamaha EX570S (EXCITER II) 1992 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

88R-13101-00-00

Unavailable

2

. PLUG

90338-21100-00

Unavailable

3

BALL

93505-32002-00

$2.90

4

SPRING (278-13169-00)

90501-02018-00

$7.58

5

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$8.73

6

NOZZLE

353-13552-01-00

$8.31

7

CLIP (2A6)

90468-02025-00

$6.67

8

GASKET 137131870000

90430-04004-00

$6.53

9

SCREW, BINDING

98907-04020-00

Unavailable

10

PLATE, ADJUSTING

137-13138-01-00

Unavailable

11

SHIM,PLUNGER

137-13137-00-03

$5.27

11

SHIM,PLUNGER

137-13137-00-05

$5.24

11

SHIM,PLUNGER

137-13137-00-10

$6.12

12

YBS67-5 WASHER, SPRING

92990-05100-00

$1.49

13

NUT, HEXAGON (663)

95380-05600-00

Unavailable

14

COVER, ADJUST PULLEY

8A5-13146-01-00

Unavailable

15

SCREW, PAN HEAD

98507-04018-00

Unavailable

16

PUMP CABLE ASSEMBLY

84M-26320-01-00

Unavailable

17

BOLT, SOCKET

91317-05016-00

Unavailable

18

GASKET, PUMP CASE

126-13116-01-00

Unavailable

19

CLIP (2A6)

90468-02025-00

$6.67

20

SHAFT, WORM

82M-13175-00-00

Unavailable

21

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

22

METAL, WORM SHAFT OUTER

821-13176-00-00

Unavailable
