1992 Yamaha Exciter II (EX570S) Meter Diagram

← All diagrams

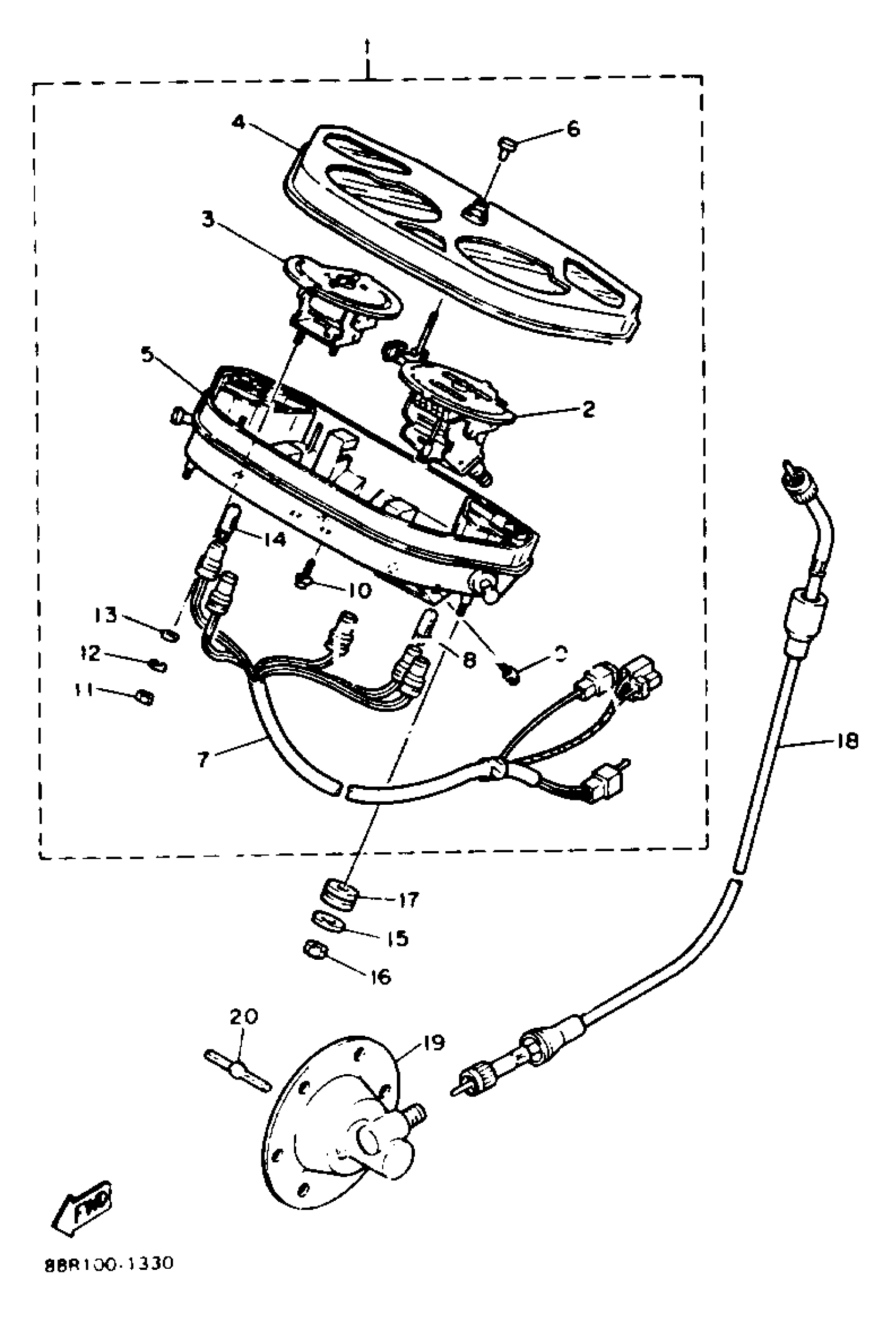

Find the part on the Meter diagram for your 1992 Yamaha Exciter II (EX570S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha Exciter II (EX570S) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COMBINATION METER ASSEMBLY

88R-83500-40-00

1
Out of stock

2

SPEEDOMETER ASSY

8CR-83580-40-00

1
Out of stock

3

TACHOMETER ASSEMBLY

88R-83540-20-00

1
Out of stock

4

COVER,METER

88R-83559-20-00

1
Out of stock

5

CASE, INNER

82M-8353H-01-00

1
Out of stock

6

KNOB, TRIP METER

29L-83578-00-00

—

$24.29

In stock

7

SOCKET CORD ASSY

88R-83509-20-00

1
Out of stock

8

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

9

SCREW, PAN HEAD (31A)

90167-04021-00

—

$1.95

In stock

10

SCREW, TAPPING (10M)

90164-04009-00

1
Out of stock

11

NUT(6TA)

95307-04600-00

1

$6.69

In stock

12

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

13

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

14

BULB (6V 3W)

4N0-83516-00-00

1
Out of stock

15

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

16

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

17

DAMPER

5J0-83513-00-00

—
Out of stock

18

SPEEDOMETER CABLE ASSEMBLY

82M-83550-00-00

1
Out of stock

19

METER GEAR HOUSING COMP.

8L9-47700-00-00

—

$68.52

In stock

20

JOINT

8K4-47715-00-00

—

$4.60

In stock
