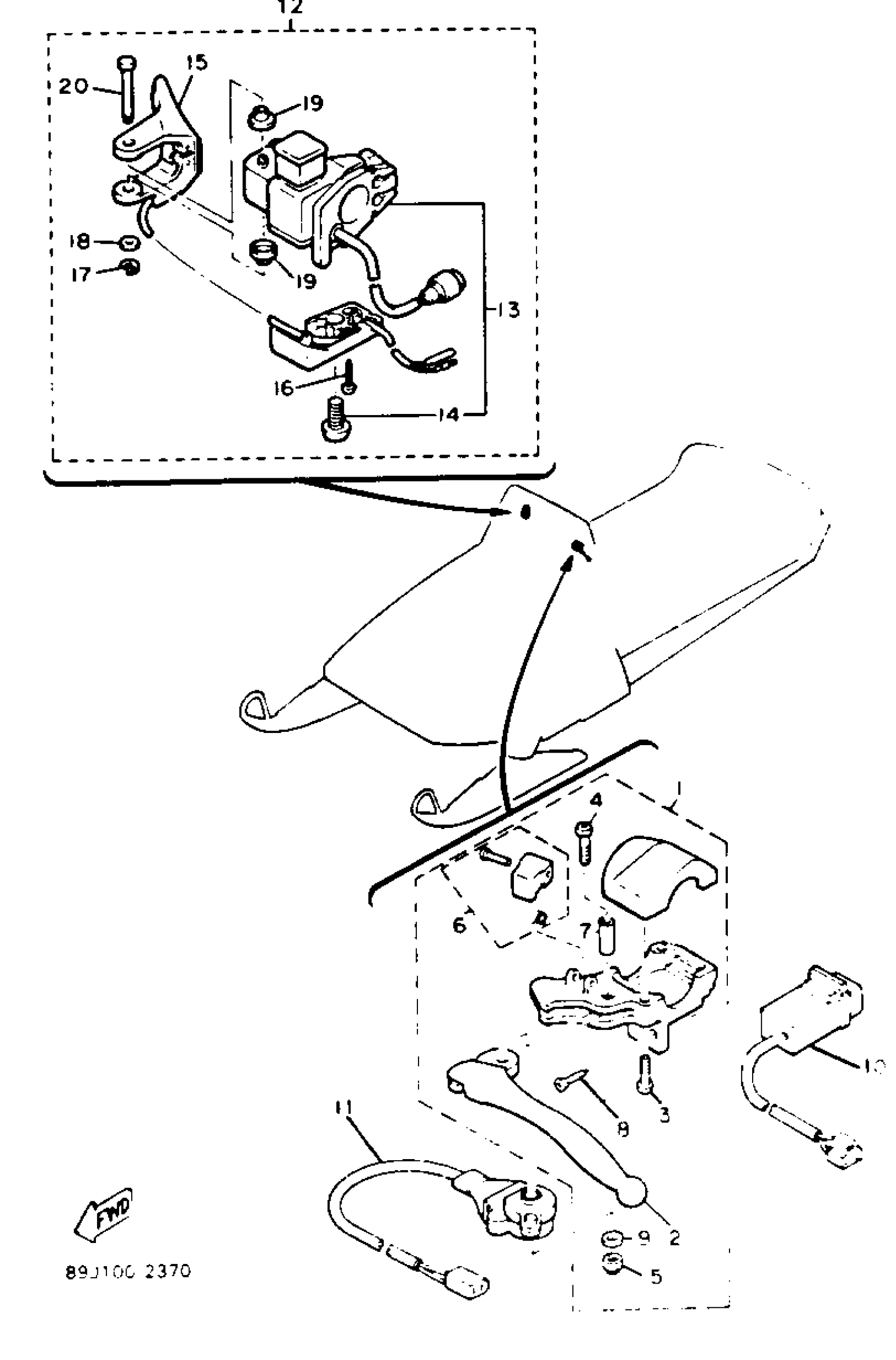

Find the part on the Electrical 2 diagram for your 1992 Yamaha Exciter Ii (EX570S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha Exciter Ii (EX570S) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASSY (LEFT)

88R-W8291-00-00

1
Out of stock

2

LEVER 1

8H8-83912-00-00

1
Out of stock

3

SCREW, PAN HEAD(41N)

90157-05057-00

—
Out of stock

4

SCREW

8R4-82113-00-00

—
Out of stock

5

NUT, NYLON

95707-05300-00

1
Out of stock

6

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

82A-83930-00-00

1
Out of stock

7

COLLAR, LEVER

802-83913-00-00

—
Out of stock

8

. SCREW, TAPPING

97780-30312-00

1
Out of stock

9

. WASHER, PLAIN

92990-05200-00

1
Out of stock

10

BEAM SWITCH ASSY

8H8-83950-01-00

1
Out of stock

11

STOP SWITCH ASSY

88R-82530-00-00

1
Out of stock

12

LEVER HOLDER ASSY, 2

89A-82720-03-00

1
Out of stock

13

. SWITCH, HANDLE 3 (RIGHT)

84M-83963-00-00

1
Out of stock

14

SCREW, ADJUSTING

84M-83928-00-00

1
Out of stock

15

THUMB WARMER ASSY

89A-82970-03-00

1
Out of stock

16

SCREW, TAPPING(3NX)

97707-30514-00

—
Out of stock

17

CIRCLIP (EU0)

99080-04600-00

1
Out of stock

18

WASHER, SPECIAL

85G-83663-00-00

—
Out of stock

19

CAP 1

85G-83956-00-00

—
Out of stock

20

SHAFT

8R6-8399F-00-00

—
Out of stock
