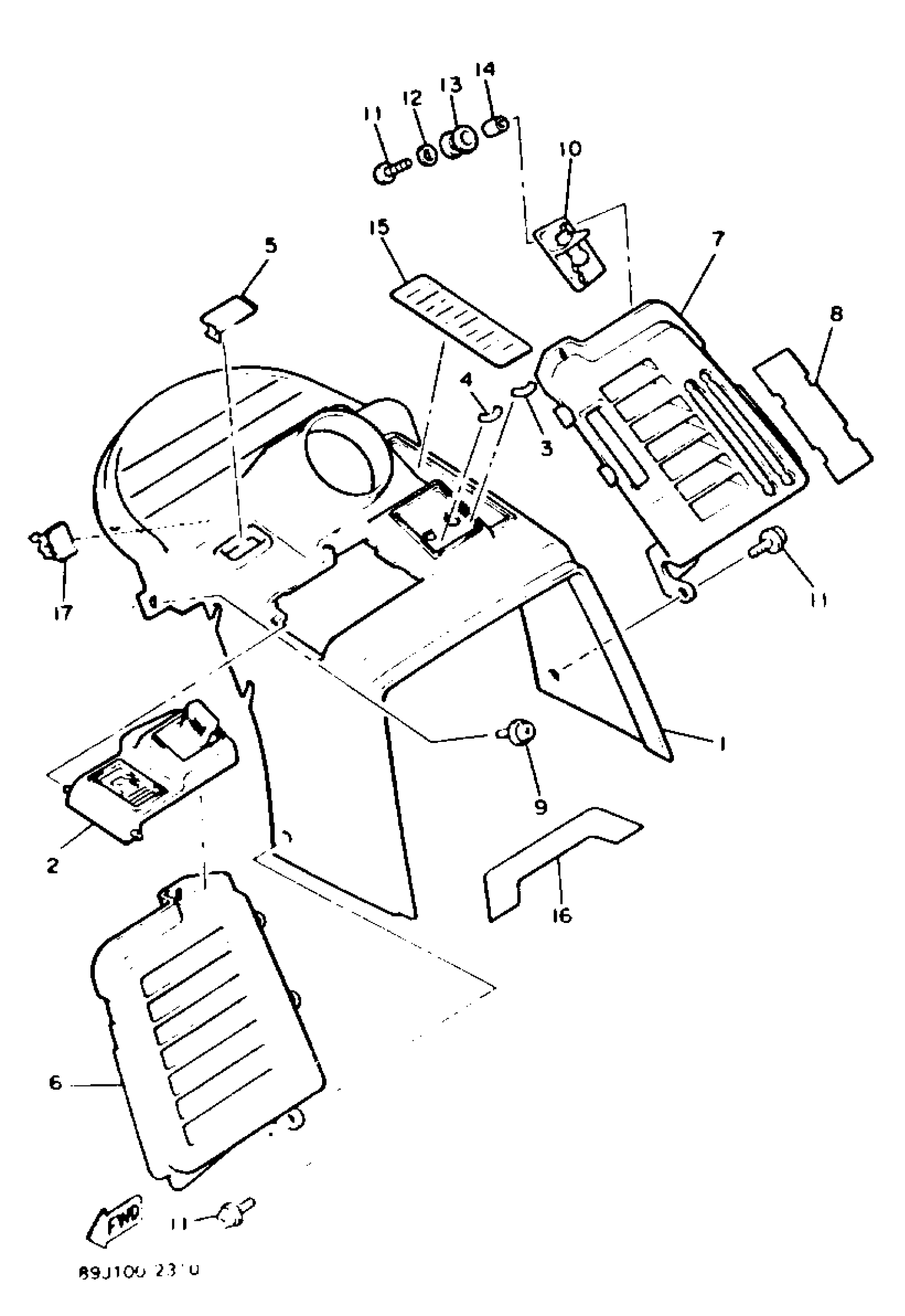

Yamaha EX570S (EXCITER II) 1992 INSTRUMENT PANEL Diagram

#

Description
Price

1

PANEL, INSTRUMENT

8X9-77711-01-00

Unavailable

2

PANEL, INSTRUMENT

8X9-77712-01-00

Unavailable

3

INDICATOR 1

8U9-77741-00-00

Unavailable

4

INDICATOR 2

8U9-77742-00-00

Unavailable

5

GROMMET, INSTRUMENT PANEL

8X9-77740-00-00

Unavailable

6

LOUVER 1

8X9-77131-00-00

Unavailable

7

LOUVER 2

8X9-77132-00-00

Unavailable

8

REFLECTOR 1

8V0-7716E-00-00

Unavailable

9

SCREW, WITH WASHER

90159-05137-00

Unavailable

10

BRACKET 1

80L-77721-00-00

Unavailable

11

SCREW, PAN TAP.2 SLIT

97707-50620-00

$8.49

12

WASHER PLATE 829771780000

90201-05033-00

$10.49

13

GROMMET

90480-13014-00

$8.49

14

COLLAR(82M)

90387-050T5-00

$7.49

15

LABEL,WARNING 1

87M-77761-10-00

Unavailable

16

DAMPER, NOISE 16

82M-77276-00-00

Unavailable

17

CLAMP(3YL)

90464-25160-00

Unavailable
