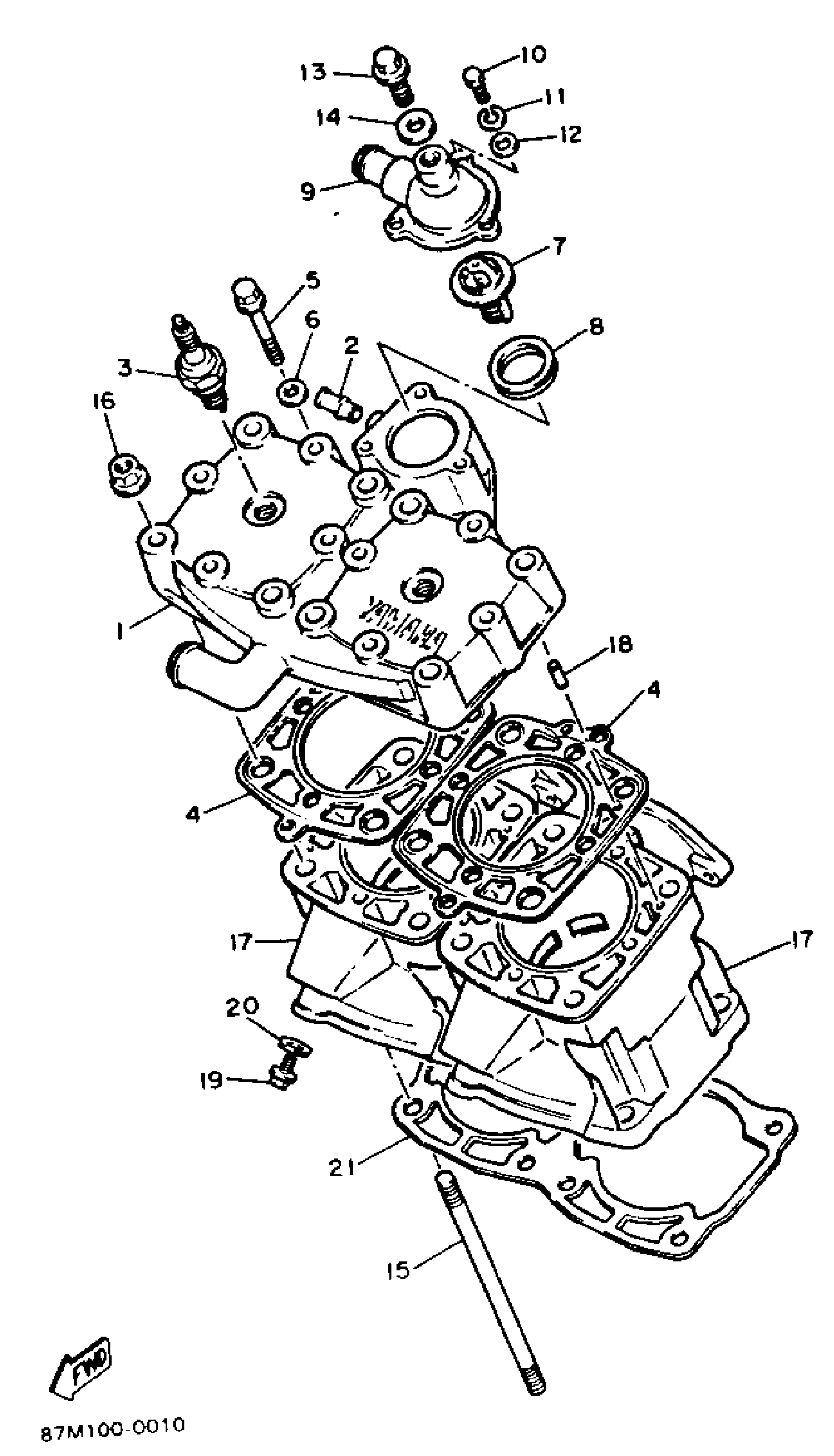

Yamaha EX570S (EXCITER II) 1992 CYLINDER HEAD CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

82M-11111-00-00

Unavailable

2

JOINT

8A7-12499-00-00

Unavailable

3

BR9ES NGK SOLID TOP PLUG 4PK

BR9-ES01P-C0-00

$3.50

4

GASKET, CYLINDER HEAD 1

88R-11181-00-00

Unavailable

5

BOLT, FLANGE

95817-08060-00

$3.11

6

WASHER, PLATE

90201-080L7-00

$3.26

7

THERMOSTAT

82M-12411-00-00

$60.87

8

SEAL, THERMOSTAT

8A7-12412-01-00

$13.61

9

COVER, THERMOSTAT

82M-12413-00-00

Unavailable

10

BOLT, HEXAGON

97017-06025-00

$2.84

11

WASHER, SPRING

92995-06100-00

$2.83

12

WASHER, PLAIN (646)

92990-06600-00

$2.43

13

BOLT, FLANGE

95817-06012-00

$1.49

14

GASKET (4V2)

90430-06166-00

$3.39

15

BOLT, CYLINDER HOLDING 1

8M6-11361-00-00

Unavailable

16

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

17

CYLINDER 1

88R-11311-00-00

Unavailable

18

PIN,DOWEL (168)

93604-12037-00

Unavailable

19

BOLT, FLANGE

95026-10016-00

Unavailable

20

WASHER PLATE 341839090000

90201-10128-00

Unavailable

21

GASKET, CYLINDER

87M-11351-02-00

Unavailable
