- EX570S (EXCITER II) 1992
CARBURETOR

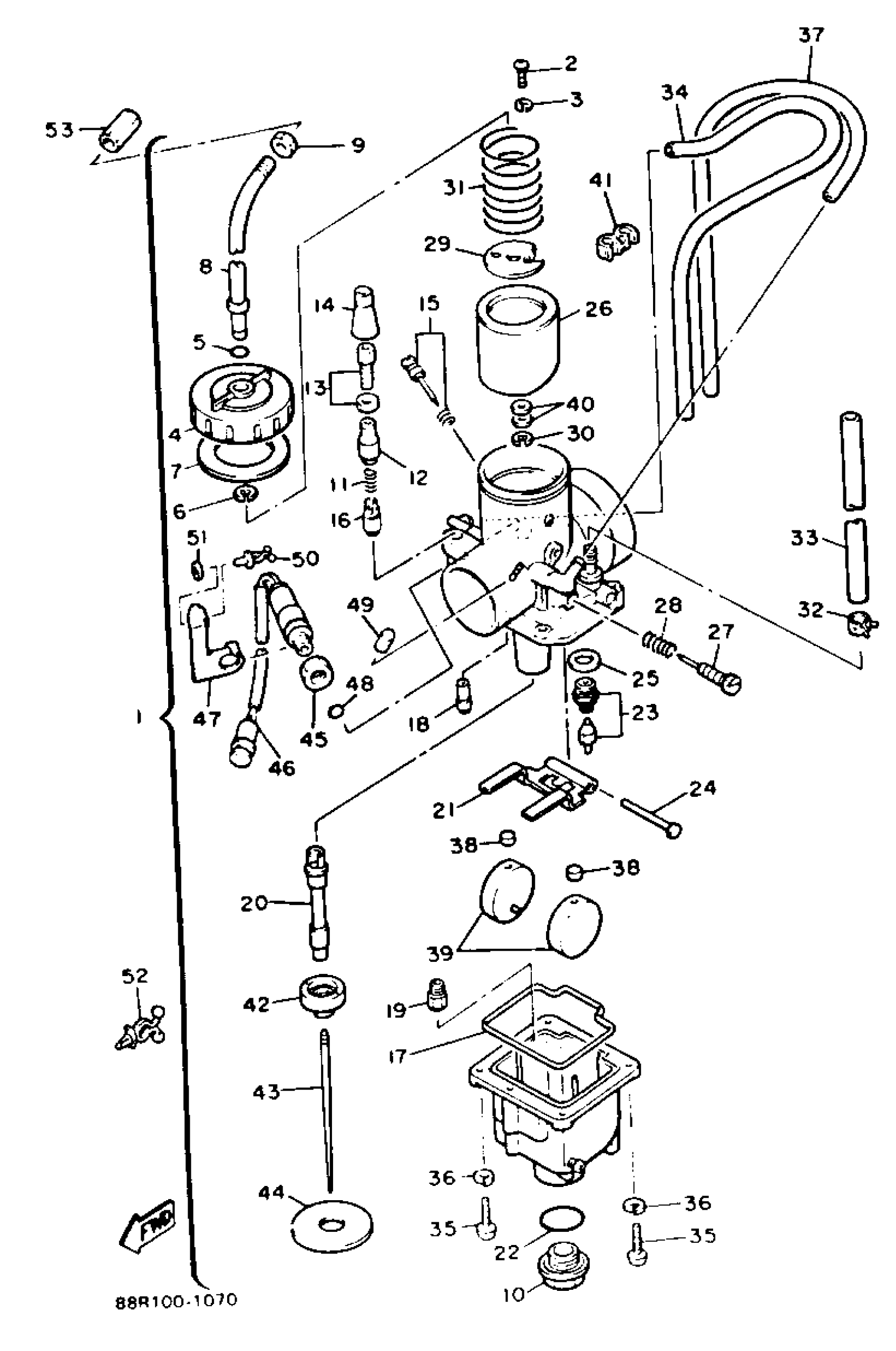

Yamaha EX570S (EXCITER II) 1992 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1 (L.H)
88R-14101-00-00
Unavailable
1
CARBURETOR ASSEMBLY 2 (R.H)
88R-14102-00-00
Unavailable
2
SCREW, PAN HEAD (713)
98580-04008-00
$5.60
3
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
4
. CAP, MIXING CHAMBER
87M-14168-00-00
Unavailable
5
O-RING
8F2-14147-00-00
$2.96
6
CLIP
363-14137-00-00
$10.99
7
. GASKET
363-14126-00-00
Unavailable
8
. GUIDE, CABLE
88R-14155-00-00
Unavailable
9
NUT, WIRE ADJUSTING
127-14161-00-00
$7.99
10
PLUG, SCREW
500-14115-00-00
$29.99
11
SPRING, PLUNGER
127-14135-00-00
$7.99
12
CAP, PLUNGER
8U9-14174-00-00
$22.99
13
CABLE ADJUST SCREW SET
12G-14106-00-00
$19.99
14
CAP
8A7-14169-00-00
$18.49
15
AIR SCREW SET
23X-14104-00-00
Unavailable
16
PLUNGER, STARTER
8U9-14171-00-00
Unavailable
17
. GASKET, FLOAT BOWL
88R-14229-00-00
Unavailable
18
. JET, PILOT #40
193-14142-40-A1
Unavailable
18
. JET, PILOT (#425)
193-14142-42-00
Unavailable
18
. JET, PILOT (#45)
193-14142-45-A1
Unavailable
19
JET, MAIN #240
137-14143-48-A1
Unavailable
19
JET, MAIN #250
137-14143-50-A1
Unavailable
19
JET, MAIN #260
137-14143-52-00
Unavailable
19
JET, MAIN #270
137-14143-54-A1
Unavailable
19
JET, MAIN #280
137-14143-56-A0
Unavailable
19
JET, MAIN #290
137-14143-58-A1
Unavailable
19
JET, MAIN #300
137-14143-60-A0
Unavailable
19
JET, MAIN #310
137-14143-62-A1
Unavailable
19
JET, MAIN #320
137-14143-64-00
Unavailable
20
. NOZZLE, MAIN
510-14141-46-00
Unavailable
21
. ARM, FLOAT
363-14187-00-00
Unavailable
22
O-RING (541)
558-14147-00-00
Unavailable
23
VALVE SEAT ASSY (1.5)
500-14190-15-00
Unavailable
24
PIN, FLOAT
537-14186-00-00
Unavailable
25
WASHER,VALVE SEAT
239-14195-00-00
Unavailable
26
. VALVE, THROTTLE 1
84M-14112-30-00
Unavailable
27
. SCREW, THROTTLE
40T-14122-00-00
Unavailable
28
SPRING, THROTTLE STOP
137-14133-00-00
Unavailable
29
. SEAT, SPRING
3V3-14136-00-00
Unavailable
30
CLIP
3FA-14137-00-00
Unavailable
31
. SPRING, THROTTLE VALVE
363-14131-00-00
Unavailable
32
CLIP (8A1)
90467-09026-00
Unavailable
33
TUBE, FLEXIBLE VINYL(8AK)
91A20-05080-00
Unavailable
34
. HOSE (87M-14987-00-00)
87M-12484-00-00
Unavailable
35
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
36
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
37
. HOSE (87M-14987-00-00)
87M-12484-00-00
Unavailable
38
CAP
214-14118-00-00
Unavailable
39
. FLOAT
214-14185-00-00
Unavailable
40
. WASHER, NEEDLE
2H0-14235-00-00
Unavailable
41
CLIP
87M-14137-00-00
Unavailable
42
. WASHER, MAIN JET
2X8-14153-00-00
Unavailable
43
. NEEDLE
239-14116-82-00
Unavailable
44
. PLATE
88R-14146-00-00
Unavailable
45
. NUT, CABLE ADJUSTING
80N-14161-00-00
Unavailable
46
. SWITCH, CARBURETOR
80N-8259A-01-00
Unavailable
47
. PLATE
84M-14146-00-00
Unavailable
48
. O-RING
80N-14147-00-00
Unavailable
49
CAP
84M-14169-00-00
Unavailable
50
CLAMP(81K)
90464-07078-00
Unavailable
51
. WASHER
80N-14285-00-00
Unavailable
52
CLAMP(81K)
90464-07078-00
Unavailable
53
NUT, AJUSTING
8A7-26323-00-00
Unavailable
