TRACK SUSPENSION 1

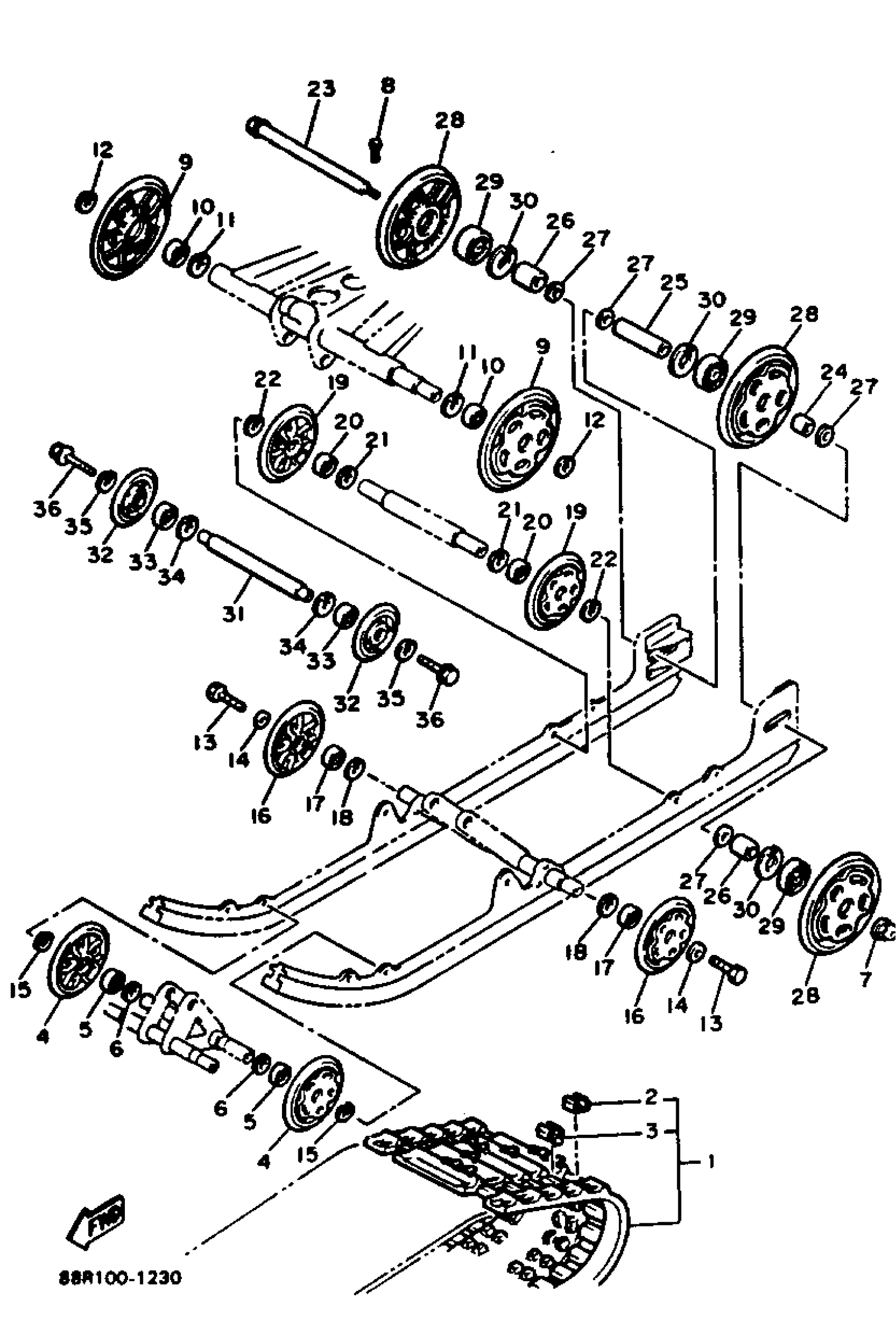

Yamaha EX570R (EXCITER II) 1991 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSEMBLY
82M-47110-00-00
Unavailable
2
PLATE, REINFORCEMENT
89A-47113-00-00
$5.49
3
METAL, SLIDE
8A5-47115-00-00
Unavailable
4
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
5
BEARING(8AB)
93306-00444-00
$41.99
6
CIRCLIP(5U8)
99009-42500-00
$8.49
7
NUT, SELF-LOCKING (8BF)
95607-14200-00
$12.49
8
PIN, COTTER
91490-30030-00
$8.49
9
SUSPENSION WHEEL COMP.
88R-47320-00-00
Unavailable
10
BEARING(8AB)
93306-00444-00
$41.99
11
CIRCLIP(5U8)
99009-42500-00
$8.49
12
CIRCLIP(1AR)
99009-20400-00
$8.49
13
BOLT (8K2)
90109-08559-00
$8.49
14
WASHER (8G1)
90201-08681-00
$7.49
15
CIRCLIP(1AR)
99009-20400-00
$8.49
16
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
17
BEARING(8AB)
93306-00444-00
$41.99
18
CIRCLIP(5U8)
99009-42500-00
$8.49
19
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
20
BEARING(8AB)
93306-00444-00
$41.99
21
CIRCLIP(5U8)
99009-42500-00
$8.49
22
CIRCLIP(1AR)
99009-20400-00
$8.49
23
REAR AXLE COMP.
8L8-47520-02-00
Unavailable
24
COLLAR
90387-204R3-00
Unavailable
25
COLLAR
90387-20023-00
Unavailable
26
COLLAR
90387-20022-00
Unavailable
27
WASHER, PLATE (888)
90201-20279-00
Unavailable
28
GUIDE WHEEL COMP.
8K2-47530-00-00
Unavailable
29
BRG,R-B 62042RS 47MM 110G KY
93306-20417-00
Unavailable
30
CIRCLIP(48Y)
99009-47500-00
Unavailable
31
IDLER
8L1-47461-00-00
Unavailable
32
SUSPENSION WHEEL COMP.
8H8-47320-00-00
Unavailable
33
BEARING(8AB)
93306-00444-00
$41.99
34
CIRCLIP(5U8)
99009-42500-00
$8.49
35
CIRCLIP(1AR)
99009-20400-00
$8.49
36
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
