- EX570R (EXCITER II) 1991
PRIMARY SHEAVE

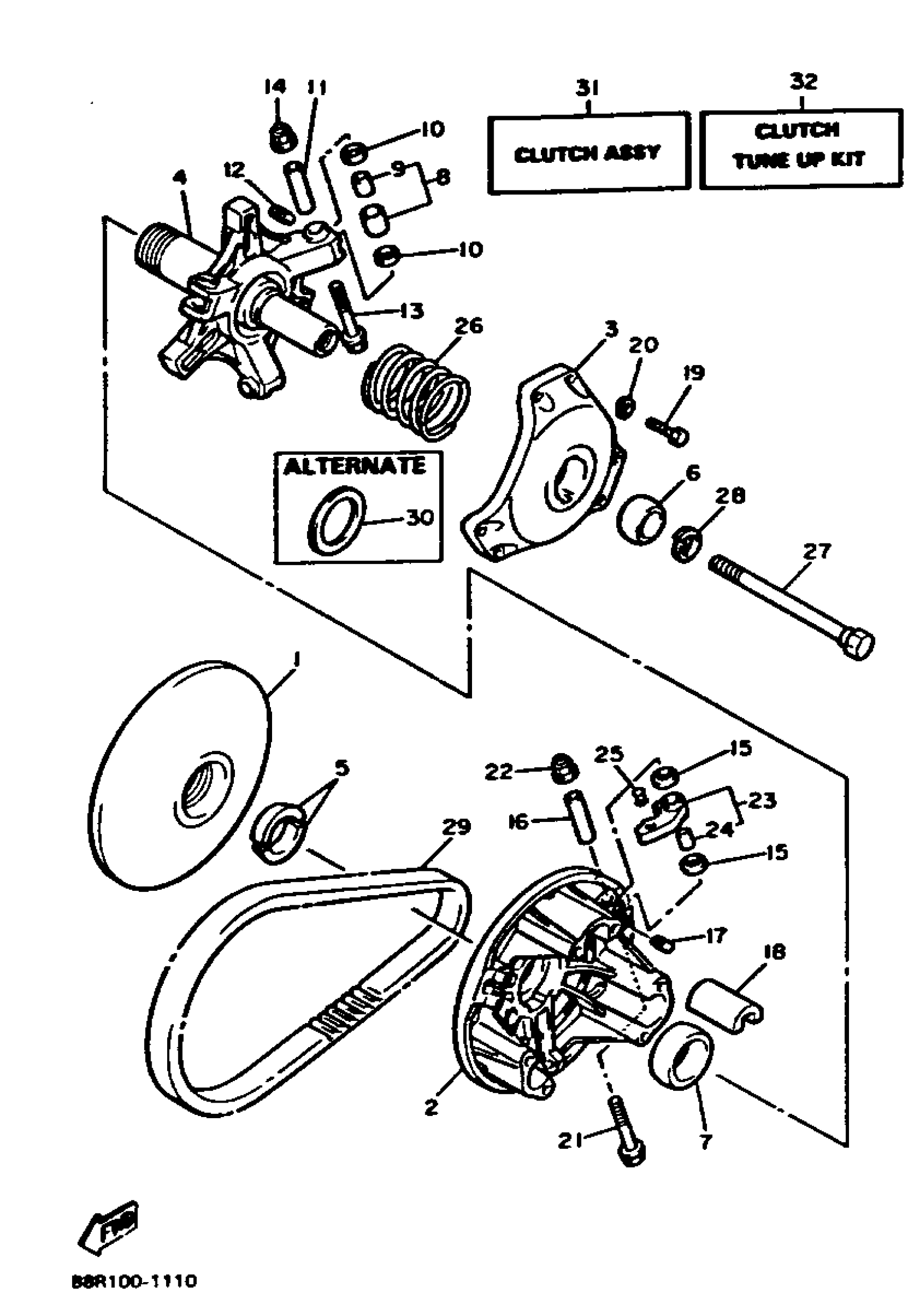

Yamaha EX570R (EXCITER II) 1991 PRIMARY SHEAVE Diagram
#
1
SHEAVE, PRIMARY FIXED
88R-17611-02-00
$113.99
2
SHEAVE, PRIMARY SLIDING
88R-17621-01-00
Unavailable
3
CAP
88R-17631-01-00
Unavailable
4
SPIDER COMPLETE
8BW-17640-11-00
Unavailable
5
STOPPER
8V0-17639-00-00
$14.99
6
BUSH(83R)
90389-28032-00
$61.99
7
BUSH(88R)
90389-41031-00
$78.99
8
ROLLER, COMP
88R-17624-01-00
$47.99
9
BUSH(88R)
90386-08182-00
$28.99
10
WASHER, PLATE(88R)
90202-08204-00
$9.49
12
SCREW SET
92A08-05310-00
Unavailable
13
BOLT, WASHER BASED(88R)
90105-05644-00
$2.39
15
CLUCH TUNE-UP KIT (R)
88R-00000-51-00
Unavailable
15
CLUTCH ASY
89L-17601-09-00
Unavailable
15
WASHER, PLATE(88R)
90202-08204-00
$9.49
18
SLIDER
88R-17653-01-00
Unavailable
19
BOLT, HEXAGON
97017-06030-00
Unavailable
20
WASHER, SPRING
92995-06100-00
Unavailable
21
BOLT, WASHER BASED(88R)
90105-05644-00
$2.39
23
WEIGHT COMP
88R-17605-00-00
Unavailable
24
BUSH(88R)
90386-08182-00
$28.99
25
RIVET, COUNTER SUNK (8G8)
90261-06017-00
Unavailable
25
RIVET, COUNTERSUNK HEAD(88R)
90261-06028-00
Unavailable
26
SPRING, COMPRESSION(88S)
90501-524G4-00
Unavailable
26
SPRING, COMPRESSION
90501-524G5-00
Unavailable
26
SPRING, COMPRESSION(88S)
90501-553G0-00
Unavailable
26
SPRING, COMPRESSION(88R)
90501-553G6-00
Unavailable
26
SPRING, COMPRESSION(8AX)
90501-581J7-00
Unavailable
26
SPRING, COMPRESSION(88R)
90501-605G7-00
Unavailable
27
. BOLT (L=1653MM)
88R-17647-00-00
Unavailable
28
WASHER(JN5)
92907-16100-00
Unavailable
29
V-BELT
89L-17641-02-00
Unavailable
30
WASHER, PLATE(88S)
90201-483P9-00
Unavailable
31
CLUTCH ASY
89L-17601-09-00
Unavailable
32
CLUCH TUNE-UP KIT (R)
88R-00000-51-00
Unavailable
