Description

Price

1

IGNITION COIL ASSY

85T-82310-06-00

$79.99

2

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

3

SCREW, TAPPING

97707-60525-00

$8.49

4

CLAMP, CORD

861-82361-00-00

Unavailable

5

PLUG CAP ASSY

8DG-82370-00-00

$49.99

6

C.D.I. UNIT ASSEMBLY

88R-85540-00-00

Unavailable

7

BOLT, FLANGE

95817-06016-00

$2.75

8

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

9

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

Unavailable

10

NUT, NYLON

95707-06300-00

$3.50

11

WIRE HARNESS ASSEMBLY

88R-82590-00-00

Unavailable

12

BAND, SWITCH CORD

25G-83936-01-00

$4.78

13

CHECKER, PILOT LAMP

38W-85774-00-00

Unavailable

14

WIRE, SUB-LEAD

80N-82319-00-00

Unavailable

15

RESISTOR ASSEMBLY

88T-85370-00-00

Unavailable

16

SCREW, BIND (705)

98980-06016-00

Unavailable

17

NUT, NYLON

95707-06300-00

$3.50

18

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

19

BOLT, HEXAGON

97017-06030-00

Unavailable

20

MAIN SWITCH ASSY

8K4-82510-20-00

Unavailable

21

PILOT LIGHT ASSEMBLY 1

8V0-84301-00-00

Unavailable

22

. BULB (12V5W)

8V0-85353-00-00

Unavailable

23

SWITCH

88H-82917-00-00

Unavailable

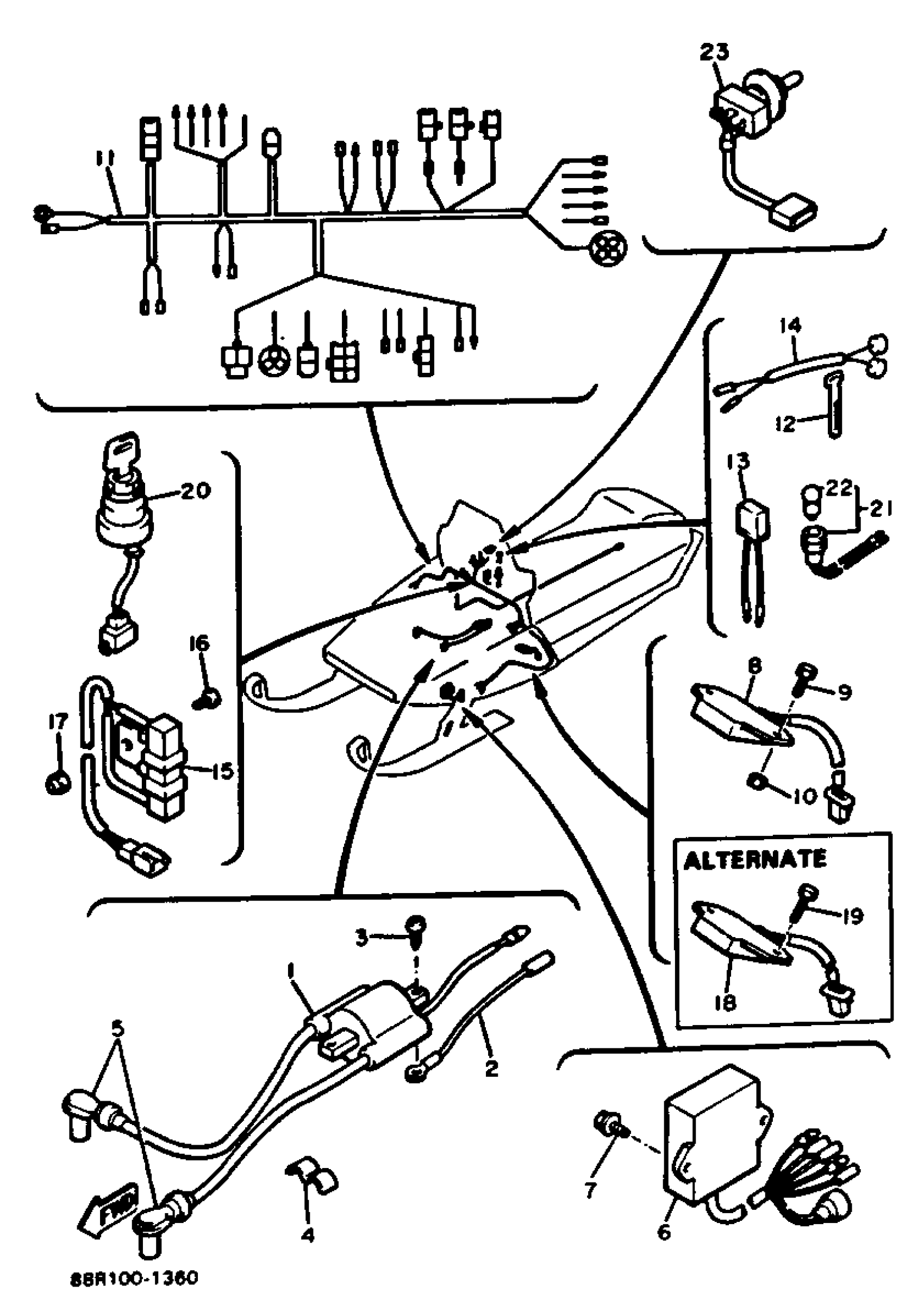

Yamaha EX570R (EXCITER II) 1991 ELECTRICAL 1 Diagram

IGNITION COIL ASSY

WIRE, SUB-LEAD

SCREW, TAPPING

CLAMP, CORD

PLUG CAP ASSY

C.D.I. UNIT ASSEMBLY

BOLT, FLANGE

VOLTAGE REGULATOR ASSY

BOLT, HEXAGON DEEP RECESS

NUT, NYLON

WIRE HARNESS ASSEMBLY

BAND, SWITCH CORD

CHECKER, PILOT LAMP

WIRE, SUB-LEAD

RESISTOR ASSEMBLY

SCREW, BIND (705)

NUT, NYLON

VOLTAGE REGULATOR ASSY

BOLT, HEXAGON

MAIN SWITCH ASSY

PILOT LIGHT ASSEMBLY 1

. BULB (12V5W)

SWITCH
