1990 Yamaha Exciter (EX570P) Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 1990 Yamaha Exciter (EX570P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

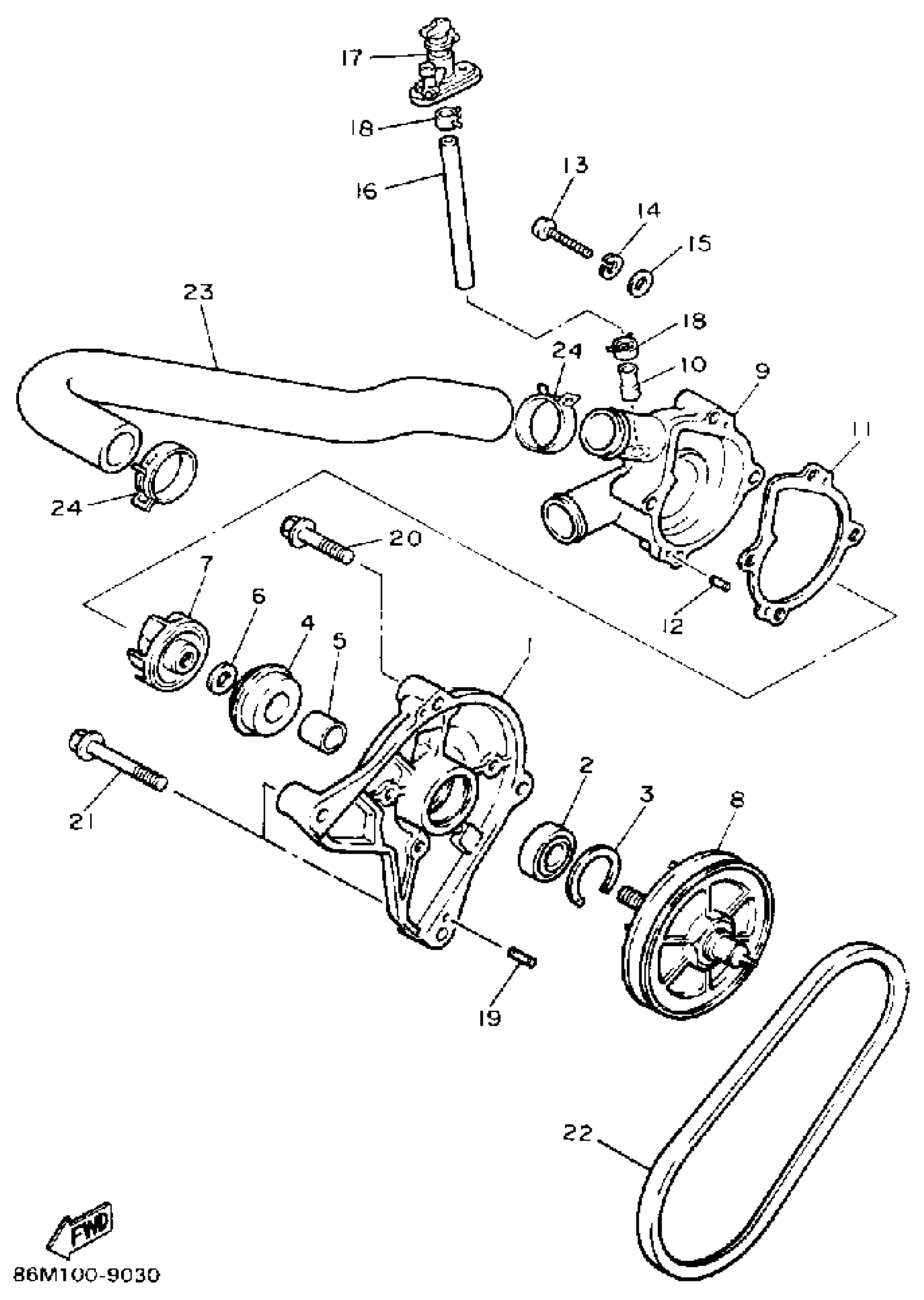

1990 Yamaha Exciter (EX570P) Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, WATER PUMP

82M-W1247-03-00

1
Out of stock

2

BEARING(82M)

93306-20117-00

1
Out of stock

3

CIRCLIP(82M)

93450-34118-00

1
Out of stock

4

SEAL, MECHANICAL

82M-12438-00-00

1
Out of stock

5

STOPPER

82M-12437-00-00

1
Out of stock

6

WASHER, PLATE 2562171800

90201-08088-00

1

$1.07

In stock

7

IMPELLER, WATER PUMP

82M-12451-00-00

1
Out of stock

8

HOUSING, WATER PUMP

82M-W1247-03-00

1
Out of stock

9

COVER, HOUSING

82M-12422-00-00

1
Out of stock

10

JOINT

8A7-12499-00-00

1
Out of stock

11

GASKET,HSNG CVR 1

82M-12427-01-00

1
Out of stock

12

PIN,DOWEL (603)

93604-10011-00

1

$5.10

In stock

13

SCREW, PAN HEAD(6H4)

97885-06035-00

1

$6.38

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

16

HOSE, 4

84M-1244G-00-00

1
Out of stock

17

COCK ASSY

84M-1249A-00-00

—
Out of stock

18

CLIP (7K7)

90467-11044-00

—
Out of stock

19

PIN,DOWEL (168)

93604-12037-00

—
Out of stock

20

BOLT, FLANGE

95817-08040-00

—

$5.43

In stock

21

BOLT, FLANGE(2UJ)

95814-08110-00

—

$5.66

In stock

22

BELT 1

82M-12444-00-00

—

$27.13

In stock

23

PIPE 1

82M-12481-00-00

1
Out of stock

24

CLIP (8M6)

90467-28046-00

—

$12.43

In stock
