1990 Yamaha Exciter (EX570P) OIL Pump Diagram

← All diagrams

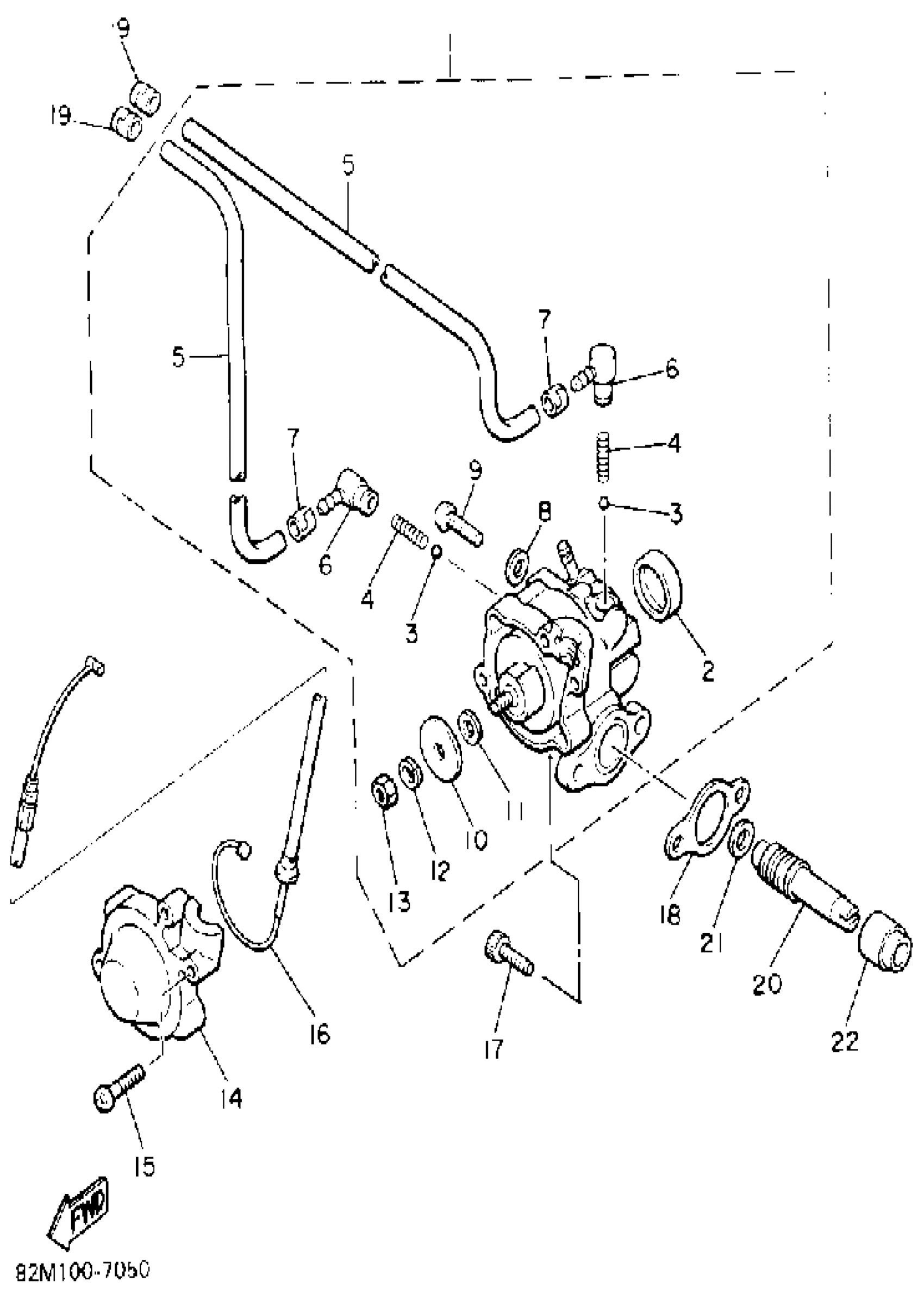

Find the part on the OIL Pump diagram for your 1990 Yamaha Exciter (EX570P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Exciter (EX570P) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

88R-13101-00-00

1
Out of stock

2

. PLUG

90338-21100-00

1
Out of stock

3

BALL

93505-32002-00

1

$2.22

In stock

4

SPRING (278-13169-00)

90501-02018-00

1

$7.69

In stock

5

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

1

$9.15

In stock

6

NOZZLE

353-13552-01-00

1
Out of stock

7

CLIP (2A6)

90468-02025-00

1

$7.02

In stock

8

GASKET 137131870000

90430-04004-00

1
Out of stock

9

SCREW, BINDING

98907-04020-00

—
Out of stock

10

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

11

SHIM,PLUNGER

137-13137-00-03

1

$5.35

In stock

11

SHIM,PLUNGER

137-13137-00-05

1

$5.32

In stock

11

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

13

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

14

UNAVAILABLE IN PRICE BOOKPULLEY

8A5-11460-10-0

1
Out of stock

15

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

16

PUMP CABLE ASSEMBLY

84M-26320-01-00

1
Out of stock

17

BOLT, SOCKET

91317-05016-00

—

$2.48

In stock

18

GASKET, PUMP CASE

126-13116-01-00

—
Out of stock

19

CLIP (2A6)

90468-02025-00

1

$7.02

In stock

20

SHAFT, WORM

82M-13175-00-00

1
Out of stock

21

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

22

METAL, WORM SHAFT OUTER

821-13176-00-00

—

$6.33

In stock
