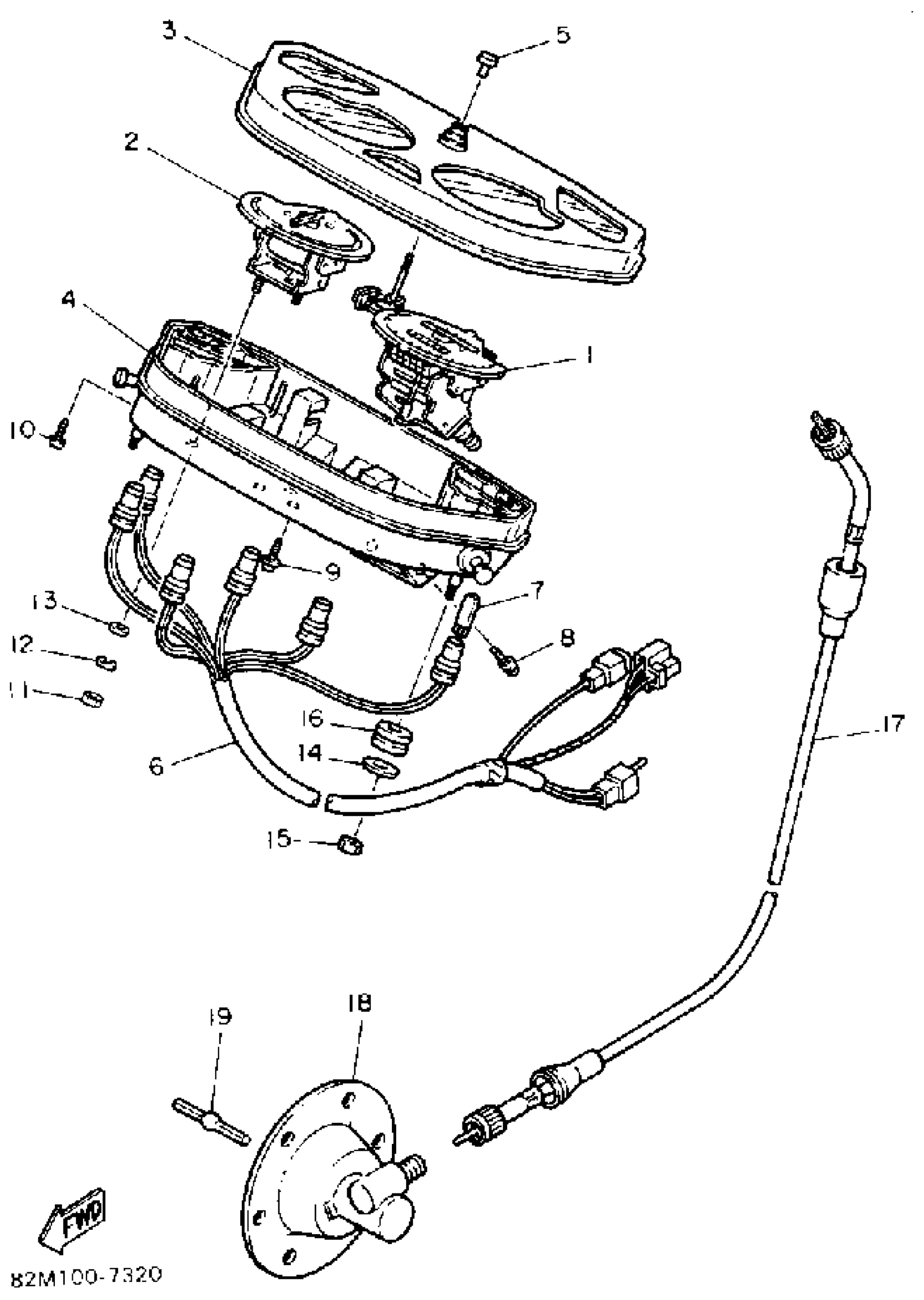

Find the part on the Meter diagram for your 1990 Yamaha Exciter (EX570P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Exciter (EX570P) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY

8CR-83580-40-00

1
Out of stock

2

TACHOMETER ASSEMBLY

88R-83540-20-00

1
Out of stock

3

COVER,METER

88R-83559-20-00

1
Out of stock

4

CASE, INNER

82M-8353H-01-00

1
Out of stock

5

KNOB, TRIP METER

29L-83578-00-00

—

$24.29

In stock

6

SOCKET CORD ASSY

88R-83509-20-00

1
Out of stock

7

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

8

SCREW, PAN HEAD (31A)

90167-04021-00

—

$1.95

In stock

9

SCREW, TAPPING (10M)

90164-04009-00

1
Out of stock

10

NUT(6TA)

95307-04600-00

1

$6.69

In stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

12

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

13

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

14

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

15

DAMPER

5J0-83513-00-00

1
Out of stock

16

SPEEDOMETER CABLE ASSEMBLY

82M-83550-00-00

1
Out of stock

17

METER GEAR HOUSING COMP.

8L9-47700-00-00

—

$68.52

In stock

18

JOINT

8K4-47715-00-00

—

$4.60

In stock
