1990 Yamaha Exciter (EX570P) Instrument Panel Diagram

← All diagrams

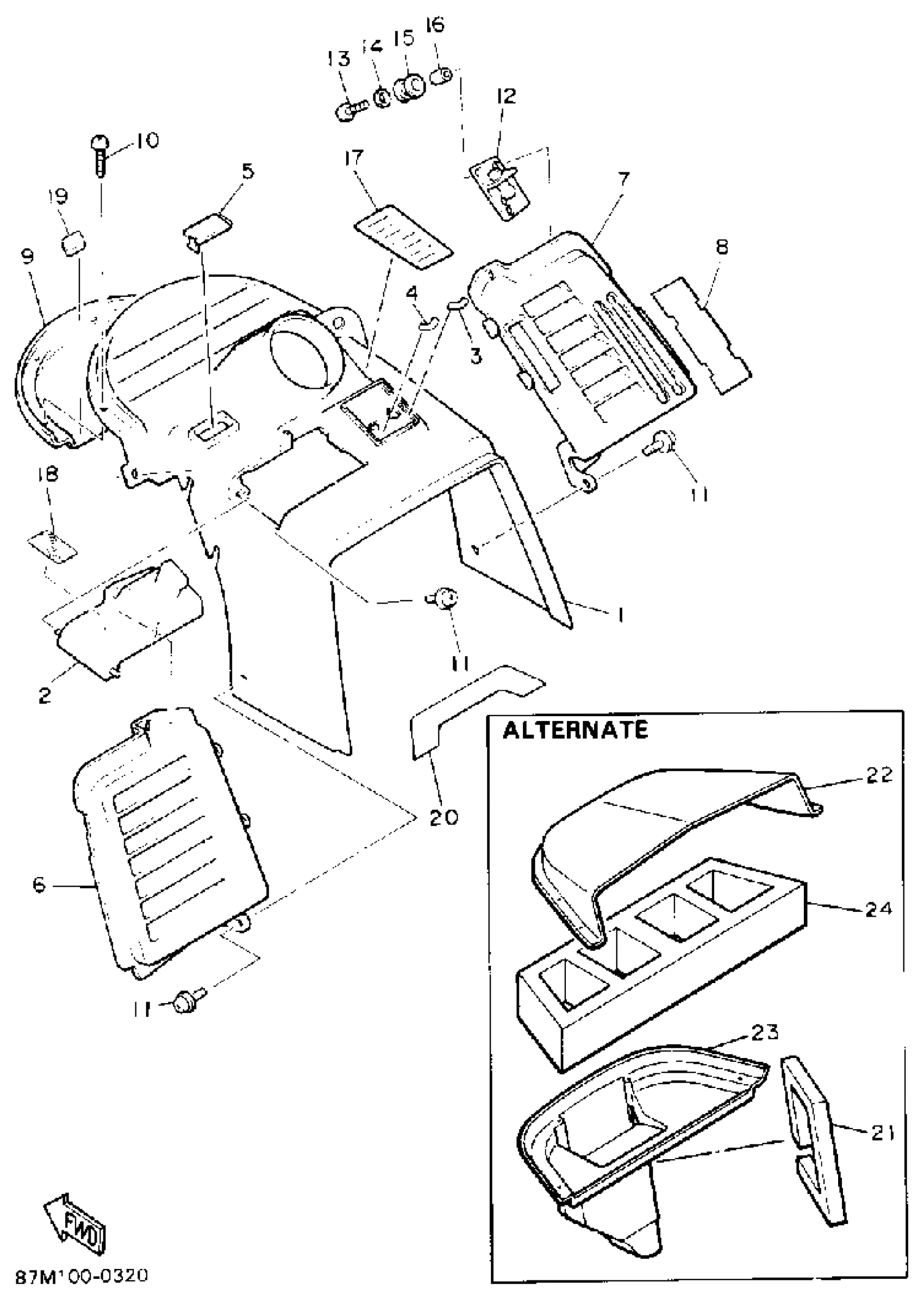

Find the part on the Instrument Panel diagram for your 1990 Yamaha Exciter (EX570P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Exciter (EX570P) Instrument Panel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PANEL, INSTRUMENT

86M-77711-01-00

1
Out of stock

2

PANEL, INSTRUMENT

8X9-77712-01-00

1
Out of stock

3

INDICATOR 1

8U9-77741-00-00

—

$19.49

In stock

4

INDICATOR 2

8U9-77742-00-00

—

$13.05

In stock

5

GROMMET, INSTRUMENT PANEL

8X9-77740-00-00

1
Out of stock

6

UNAVAILABLE IN PRICE BOOK

8X9-77110-00-0

1
Out of stock

7

LOUVER 2

8X9-77132-00-00

1
Out of stock

8

REFLECTOR 1

8V0-7716E-00-00

1
Out of stock

9

SHIELD 1

8V0-77731-00-00

1
Out of stock

10

SCREW, BINDING

98907-05012-00

1
Out of stock

11

SCREW, WITH WASHER

90159-05137-00

1
Out of stock

12

BRACKET 1

80L-77721-00-00

1
Out of stock

13

SCREW, PAN TAP.2 SLIT

97707-50620-00

1

$6.45

In stock

14

WASHER PLATE 829771780000

90201-05033-00

1
Out of stock

15

GROMMET

90480-13014-00

1

$6.85

In stock

16

COLLAR(82M)

90387-050T5-00

—
Out of stock

17

LABEL,WARNING 1

87M-77761-10-00

1
Out of stock

18

ORMNT, INSTR PNL 1

84M-77715-00-00

1
Out of stock

19

SHIELD 1

81H-77731-00-00

1
Out of stock

20

DAMPER, NOISE 16

82M-77276-00-00

1
Out of stock

21

SEAL

86M-14452-00-00

1
Out of stock

22

SHIELD 1

86M-77731-00-00

1
Out of stock

23

DUCT

86M-77194-00-00

1
Out of stock

24

ELEMENT 1 F.A.I.CLEANER

86M-14451-00-00

1
Out of stock
