Description

Price

1

EXHAUST PIPE ASY L

99999-03003-00

Unavailable

2

GASKET, EXHAUST PIPE

89A-14613-00-00

$16.49

3

BOLT, HEXAGON

97013-08020-00

$1.16

4

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

5

MUFFLER ASSEMBLY L

82M-14710-01-00

Unavailable

6

PROTECTOR, MUFFLER 1

86M-14718-00-00

Unavailable

7

PROTECTOR, MUFFLER 2

86M-14728-00-00

Unavailable

8

BOLT, FLANGE

95812-06010-00

$2.98

9

SPRING, TENSION (8R7)

90506-20272-00

$11.49

10

SPRING, TENSION

90506-16394-00

Unavailable

11

SPRING, TENSION

90506-16335-00

Unavailable

12

PROTECTOR, MUFFLER 2

8A5-14728-02-00

Unavailable

13

STOPPER

8M6-14768-00-00

Unavailable

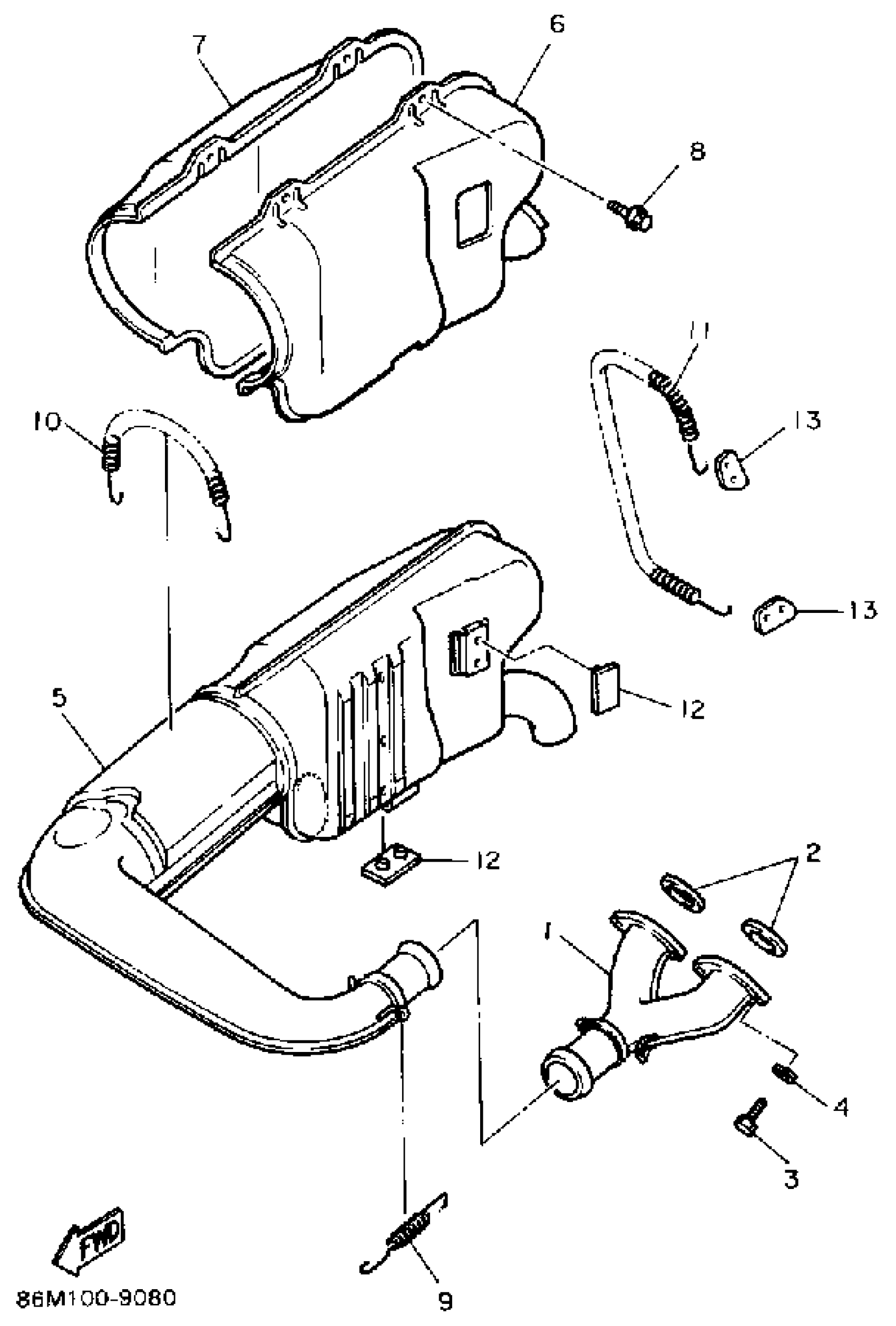

Yamaha EX570P (EXCITER) 1990 EXHAUST Diagram

EXHAUST PIPE ASY L

GASKET, EXHAUST PIPE

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

MUFFLER ASSEMBLY L

PROTECTOR, MUFFLER 1

PROTECTOR, MUFFLER 2

BOLT, FLANGE

SPRING, TENSION (8R7)

SPRING, TENSION

SPRING, TENSION

PROTECTOR, MUFFLER 2

STOPPER
