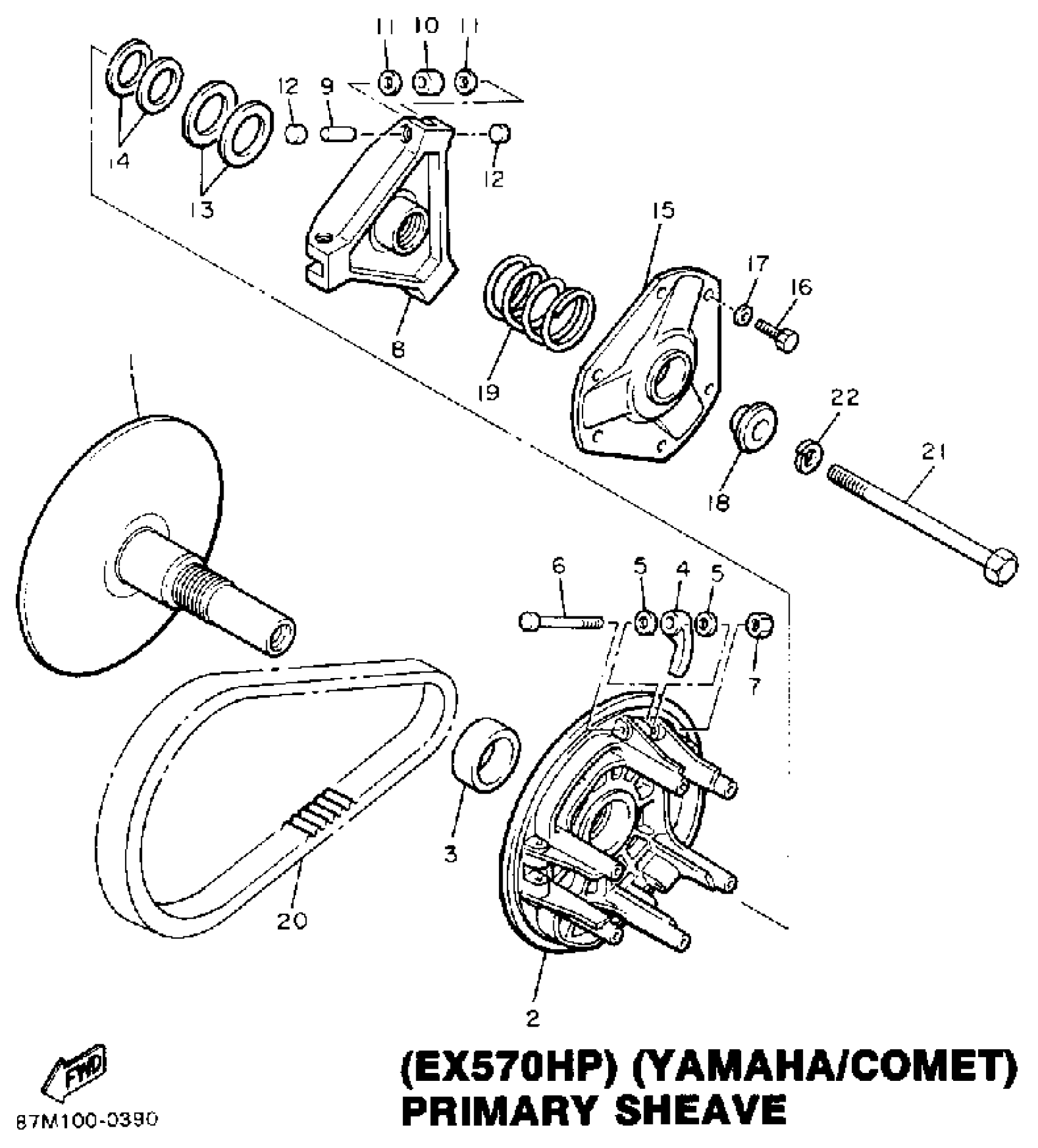

Yamaha EX570P (EXCITER) 1990 (EX570HP) (HAMAHA - COMET) PRIMARY SHEAVE Diagram

#

Description
Price

1

PRI FXDSHVE COMPSHEAVE COMP

87X-17610-00-00

Unavailable

2

SHVE, PR1 SLIDINGSLIDING

87X-17621-00-00

Unavailable

3

BUSH

87X-17625-00-00

Unavailable

4

. WEIGHT

8U7-17633-00-00

Unavailable

5

SPACER

87X-17649-00-00

Unavailable

6

. BOLT WEIGHT COMET

8U7-17616-00-00

Unavailable

7

. NUT

8U7-17668-00-00

Unavailable

8

SPIDER

87X-17627-00-00

Unavailable

9

. PIN

8U7-17636-00-00

Unavailable

10

. COLLAR

8U7-17645-00-00

Unavailable

11

. WASHER, BELLEVILLE

8U7-17658-00-00

Unavailable

12

. SLIDER

8U7-17653-00-00

Unavailable

13

. SPACER 1

8U7-17654-00-00

Unavailable

14

SHIM

87X-17687-00-00

Unavailable

15

PRIMARY SHVECAP COMP

87X-17630-00-00

Unavailable

16

UNAVAILABLE IN PRICE BOOK

8UZ-17617-00-00

Unavailable

17

. WASHER, LOCK

8U7-17646-00-00

Unavailable

18

UNAVAILABLE IN PRICE BOOK

9U717-64800-00

Unavailable

19

. SPRING, PRIMARY

8U9-17643-01-00

Unavailable

20

V-BELT

89L-17641-02-00

Unavailable

21

BOLT

87X-17647-00-00

Unavailable

22

WASHER, SPRING

90204-13010-00

Unavailable
