Description

Price

1

CDI UNIT ASSY

84M-85540-20-00

Unavailable

2

BAND

2A7-85546-00-00

Unavailable

3

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

4

BOLT(8CP)

97017-06014-00

$8.49

5

NUT, NYLON

95707-06300-00

$3.50

6

IGNITION COIL ASSY

85T-82310-06-00

$79.99

7

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

8

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

9

CLAMP, CORD

861-82361-00-00

Unavailable

10

PLUG CAP ASSY

8DG-82370-00-00

$49.99

11

MAIN SWITCH ASSY

8K4-82510-20-00

Unavailable

12

WIRE HARNESS ASSEMBLY

86M-82590-00-00

Unavailable

13

WIRE, SUB-LEAD

80N-82319-00-00

Unavailable

14

BAND, SWITCH CORD

25G-83936-01-00

$4.78

15

CHECKER, PILOT LAMP

38W-85774-00-00

Unavailable

16

PILOT LIGHT ASSEMBLY 1

8V0-84301-00-00

Unavailable

17

. BULB (12V5W)

8V0-85353-00-00

Unavailable

18

OIL LUL GAUGE ASY

47X-85720-02-00

Unavailable

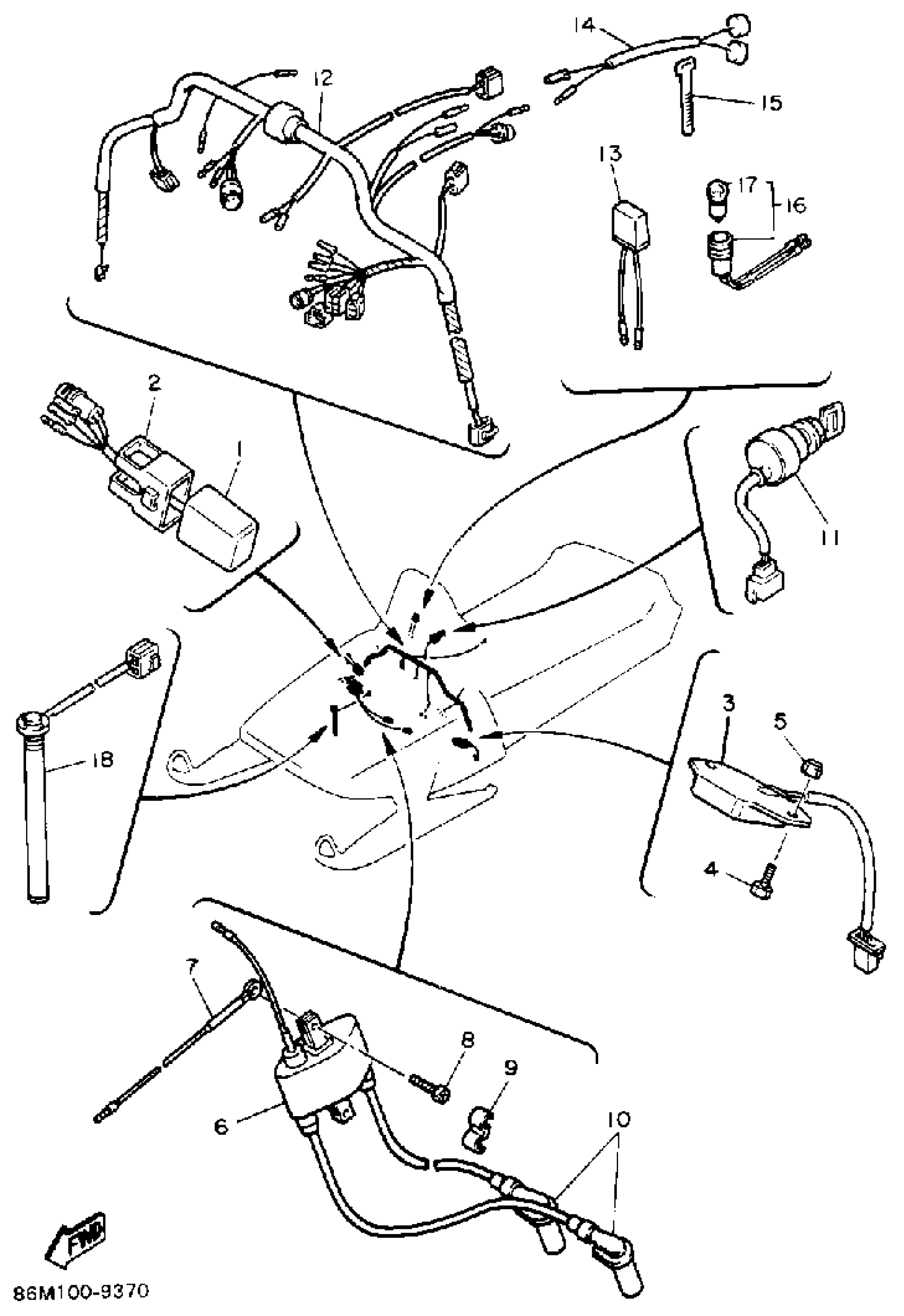

Yamaha EX570P (EXCITER) 1990 ELECTRICAL 1 Diagram

CDI UNIT ASSY

BAND

VOLTAGE REGULATOR ASSY

BOLT(8CP)

NUT, NYLON

IGNITION COIL ASSY

WIRE, SUB-LEAD

SCREW, PAN HEAD (76T)

CLAMP, CORD

PLUG CAP ASSY

MAIN SWITCH ASSY

WIRE HARNESS ASSEMBLY

WIRE, SUB-LEAD

BAND, SWITCH CORD

CHECKER, PILOT LAMP

PILOT LIGHT ASSEMBLY 1

. BULB (12V5W)

OIL LUL GAUGE ASY
