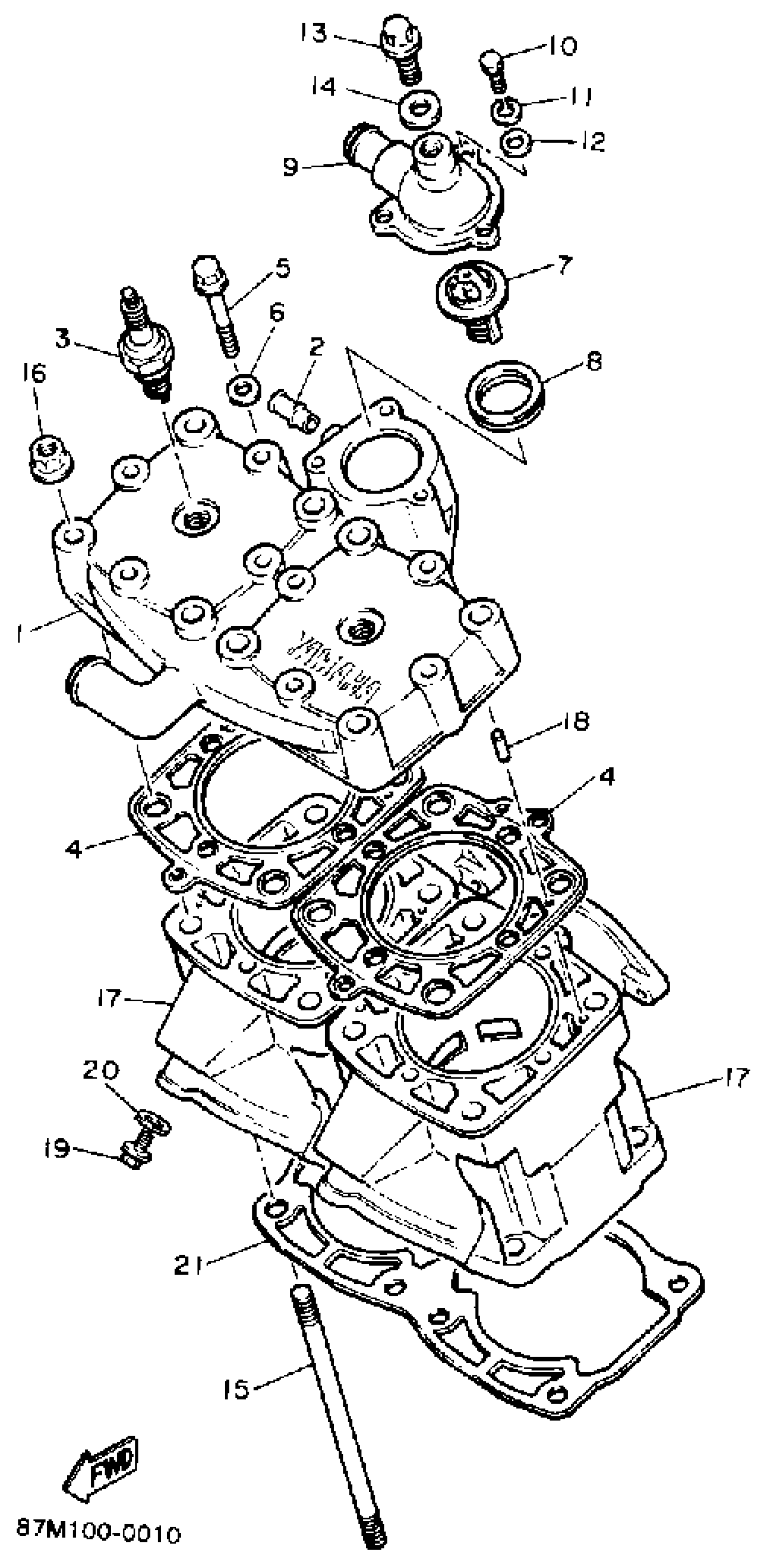

Yamaha EX570P (EXCITER) 1990 CYLINDER HEAD-CYLINDER Diagram

HEAD, CYLINDER 1

82M-11111-00-00

Unavailable

JOINT

8A7-12499-00-00

Unavailable

BR9ES NGK SCREW TOP PLUG 4PK

BR9-ES000-00-00

Unavailable

GASKET, CYLINDER HEAD 1

82M-11181-01-00

Unavailable

BOLT, FLANGE

95817-08060-00

$3.76

WASHER, PLATE

90201-080L7-00

$4.82

THERMOSTAT

82M-12411-00-00

$75.99

SEAL, THERMOSTAT

8A7-12412-01-00

$16.49

COVER, THERMOSTAT

82M-12413-00-00

Unavailable

BOLT, HEXAGON

97017-06025-00

$4.24

WASHER, SPRING

92995-06100-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$2.80

BOLT, FLANGE

95817-06012-00

$1.43

GASKET (4V2)

90430-06166-00

$3.76

BOLT, CYLINDER HOLDING 1

8M6-11361-00-00

Unavailable

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

CYLINDER 1

86M-11311-00-00

Unavailable

PIN,DOWEL (168)

93604-12037-00

Unavailable

BOLT, FLANGE

95026-10016-00

Unavailable

WASHER PLATE 341839090000

90201-10128-00

Unavailable

GASKET, CYLINDER

87M-11351-02-00

Unavailable
