1990 Yamaha Exciter (EX570P) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 1990 Yamaha Exciter (EX570P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

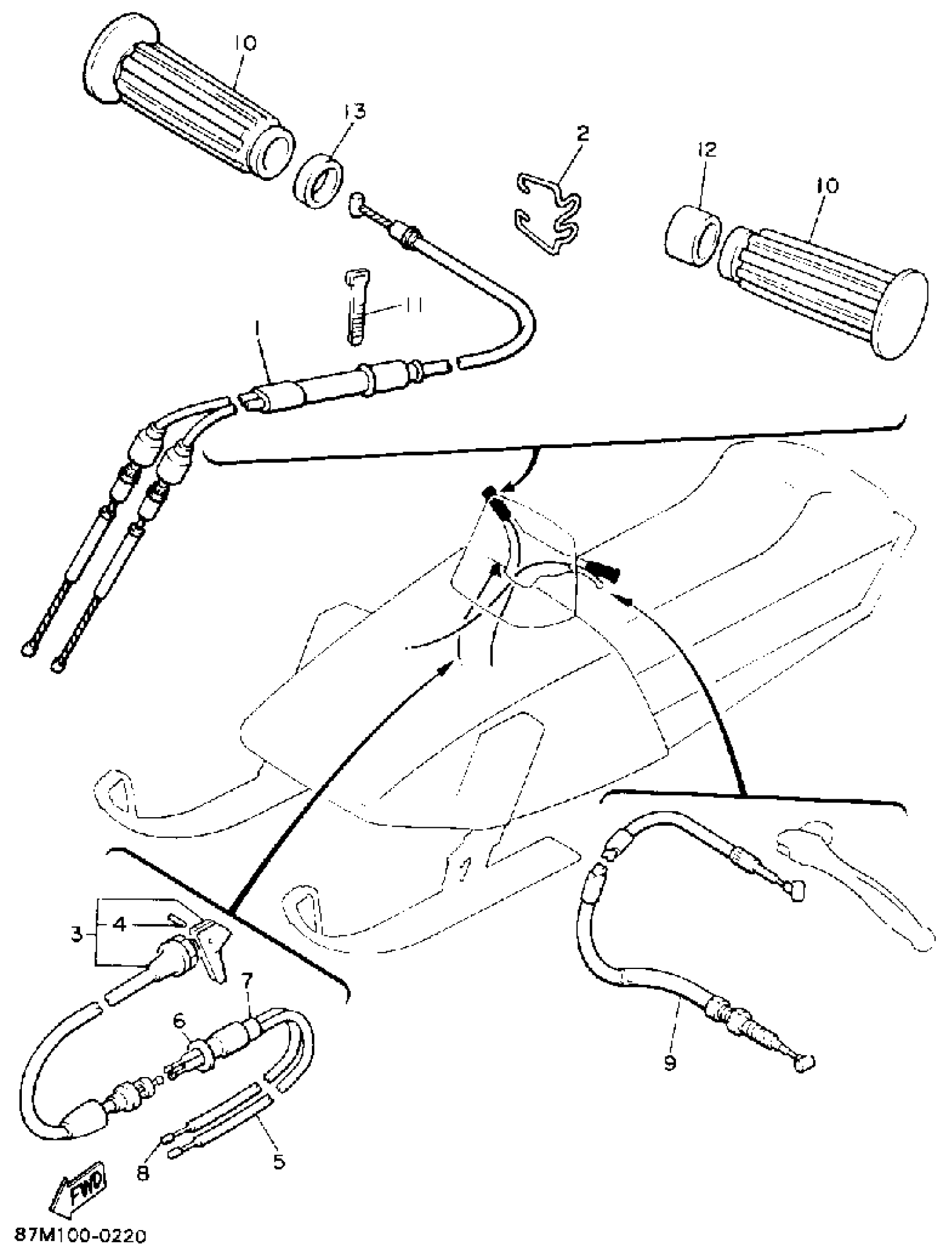

1990 Yamaha Exciter (EX570P) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRE THROTTLE

87X-26311-00-00

—

$36.20

In stock

1

CABLE, THROTTLE 1

88R-26311-00-00

1
Out of stock

2

CLIP, CABLE

8M6-26391-01-00

1
Out of stock

3

CABLE, STARTER 1

82M-26331-01-00

1
Out of stock

4

PIN, SPRING (663)

91690-30010-00

1

$5.46

In stock

5

CABLE, STARTER 2

84M-26334-00-00

1
Out of stock

6

CONNECTER, CABLE

4U1-26261-00-00

1

$33.76

In stock

7

CAP

5L6-26272-00-00

1

$7.51

In stock

8

WIRE, STARTER 3

84M-2633A-00-00

1
Out of stock

9

CABLE, BRAKE

82M-26340-00-00

1
Out of stock

10

GRIP ASSEMBLY

86F-26241-00-00

1
Out of stock

11

BAND, SWITCH CORD

25G-83936-01-00

1

$4.12

In stock

12

COLLAR

90387-223R2-00

1
Out of stock

13

COLLAR

90387-224F9-00

1
Out of stock
