1989 Yamaha Exciter (EX570N) Windshield Diagram

← All diagrams

Find the part on the Windshield diagram for your 1989 Yamaha Exciter (EX570N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

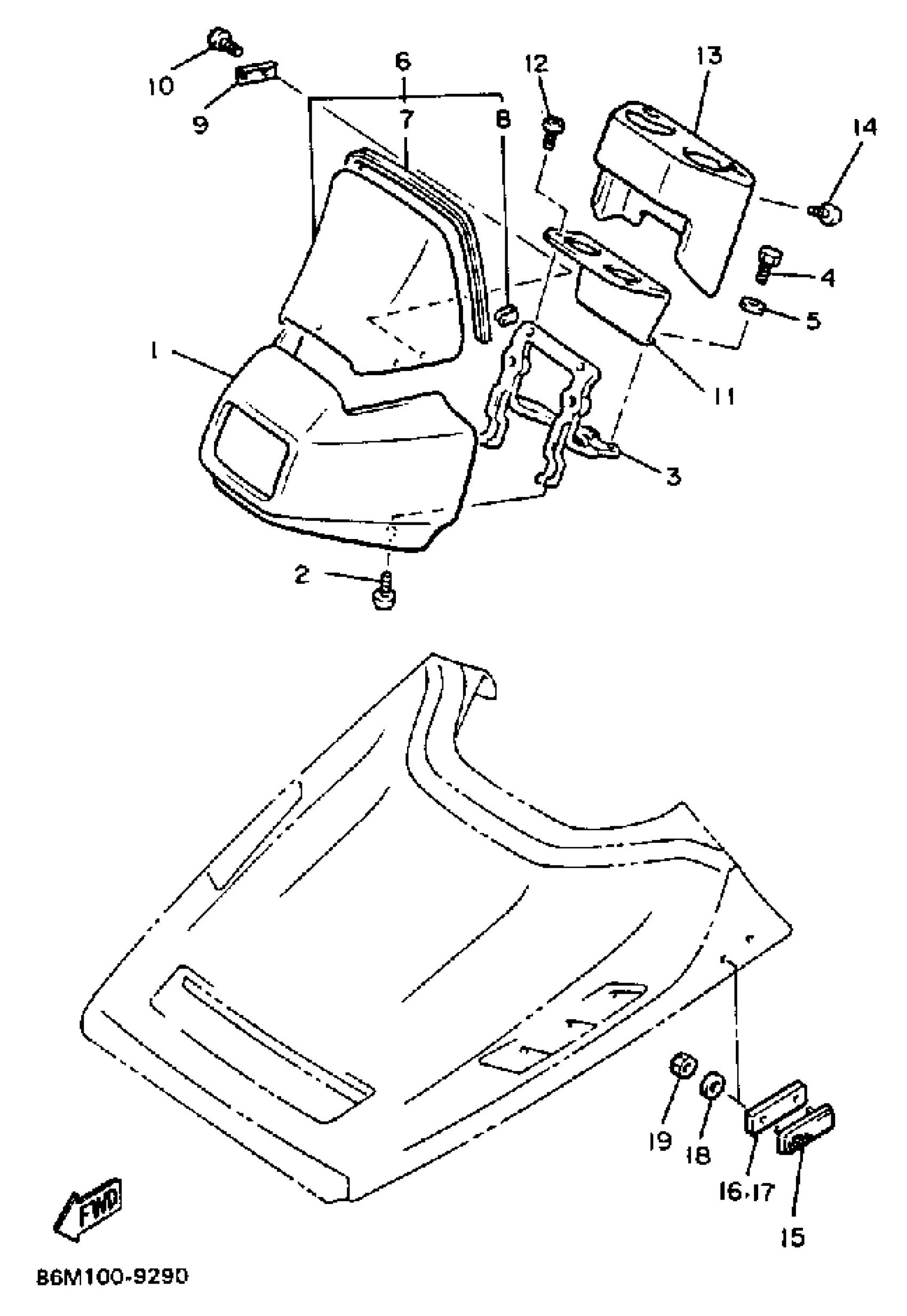

1989 Yamaha Exciter (EX570N) Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FAIRING

80L-77231-01-00

1
Out of stock

2

SCREW, BINDING

98907-06010-00

1

$1.49

In stock

3

STAY, FAIRING

82M-77241-00-00

1
Out of stock

4

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

5

WASHER, SPRING

92907-06100-00

1
Out of stock

6

WINDSHIELD

8BH-77210-00-XX

1
Out of stock

7

TRIM,UPPER

87K-77213-00-00

1
Out of stock

8

. FASTENER

80V-77223-00-00

1
Out of stock

9

WASHER 1

82M-77218-00-00

1
Out of stock

10

SCREW, PAN HEAD

98502-05006-00

1
Out of stock

11

BRACKET, METER

82M-83519-01-00

1
Out of stock

12

SCREW, BINDING

98907-06010-00

1

$1.49

In stock

13

COVER, HEADLIGHT

82M-77251-00-00

1
Out of stock

14

SCREW, BINDING

98907-05016-00

1

$6.18

In stock

15

REFLECTOR ASSEMBLY

81E-85110-00-00

1
Out of stock

16

BASE, REFLECTOR

82M-85115-00-00

1
Out of stock

17

BASE, REFLECTOR

82M-85115-00-00

1
Out of stock

18

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

19

NUT, NYLON

95707-05300-00

—

$2.74

In stock
