1989 Yamaha Exciter (EX570N) Frame Diagram

← All diagrams

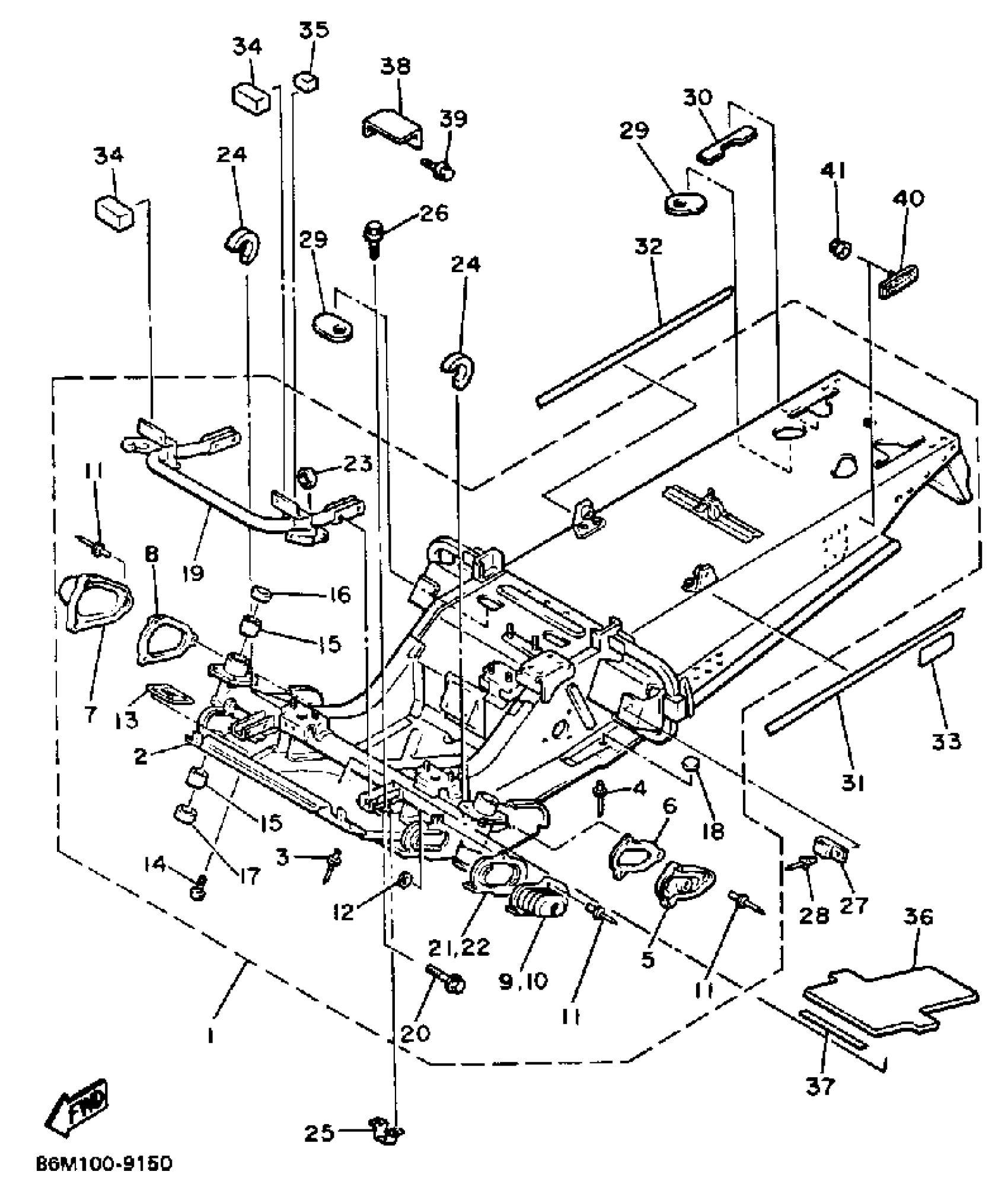

Find the part on the Frame diagram for your 1989 Yamaha Exciter (EX570N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Yamaha Exciter (EX570N) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

99999-02250-00

1
Out of stock

2

. PANEL, SUB FRAME 1

86M-21912-00-00

1
Out of stock

3

RIVET, BLIND

90267-48018-00

1

$7.35

In stock

4

RIVET, BLIND

90267-48060-00

1

$2.00

In stock

5

COVER 1

8M6-2198F-00-00

1

$22.69

In stock

6

SPACER

8M6-21998-00-00

1

$3.05

In stock

7

. COVER, STEERING

82M-23818-00-00

1
Out of stock

8

. WASHER 2

82M-77526-00-00

1
Out of stock

9

. COVER 1 (LH)

82M-2198F-00-00

1
Out of stock

10

. COVER 2 (RH)

82M-2198G-00-00

1
Out of stock

11

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

12

WASHER, PLATE

90201-04027-00

1
Out of stock

13

PANEL, SUB FRAME 6

8M6-21917-00-00

1
Out of stock

14

SCREW, WITH WASHER

90159-05137-00

1
Out of stock

15

1

$9.68

In stock

16

OIL SEAL (8M6)

93102-36232-00

—

$9.51

In stock

17

OIL SEAL (8M6)

93103-36117-00

—

$20.31

In stock

18

SPACER

80F-21998-00-00

—

$11.69

In stock

19

. BUMPER, FRONT 2

84M-77512-01-00

1
Out of stock

20

BOLT, FLANGE

95817-08035-00

—

$6.68

In stock

21

. PLATE, STRING BRACKET 1 (L, H)

82M-2195E-00-00

1
Out of stock

22

. PLATE, STRING BRACKET 2 (R, H)

82M-2195F-00-00

1
Out of stock

23

PATCH 9

80F-21989-00-00

1
Out of stock

24

DAMPER, NOISE 17

82M-77277-00-00

—

$0.78

In stock

25

REINFORCEMENT, SUB FRAME 2

82M-21938-00-00

1
Out of stock

26

BOLT, FLANGE

95812-06010-00

—

$2.75

In stock

27

CLAMP(83R)

90461-08113-00

—

$10.48

In stock

28

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

29

PATCH 5

82M-21965-00-00

1
Out of stock

30

PATCH 6

82M-21966-00-00

1
Out of stock

31

EMBLEM 1

82M-77351-00-00

1
Out of stock

32

EMBLEM 2

82M-77352-00-00

1
Out of stock

33

INDICATOR 2

8K2-77742-00-00

1
Out of stock

34

PROTECTOR 5

84M-77555-00-00

—

$7.31

In stock

35

TAPE, 5

85L-7717J-00-00

1
Out of stock

36

SHIELD, HEAT

86M-2199H-00-00

1
Out of stock

37

TAPE 3

8V0-7717G-00-00

—

$3.82

In stock

38

COVER 1

86M-2198F-00-00

1
Out of stock

39

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

40

REAR REFLECTOR ASSY

3Y6-85130-02-00

1

$22.72

In stock

41

NUT, FLANGE(3GM)

95707-05500-00

—

$6.18

In stock
