TRACK SUSPENSION 3

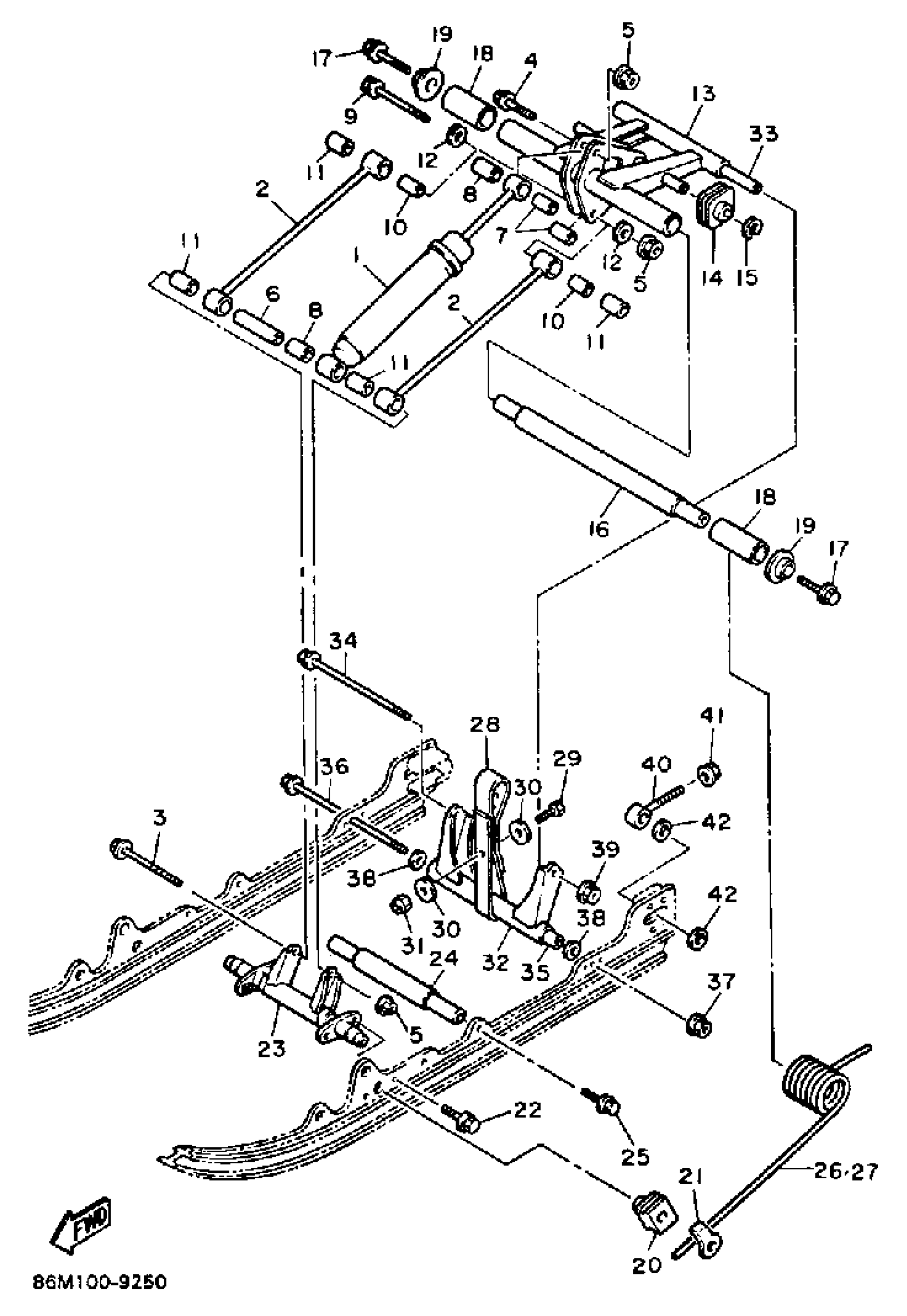

Yamaha EX570N (EXCITER) 1989 TRACK SUSPENSION 3 Diagram
#
1
SHOCK ABSORBER
86M-47480-00-00
Unavailable
2
ROD, RELAY
86M-47494-00-00
Unavailable
3
BOLT, FLANGE
95817-08100-00
$5.60
4
BOLT, FLANGE
95817-08040-00
$7.49
5
NUT, NYLON
95717-08300-00
$2.70
6
COLLAR
90387-081U5-00
Unavailable
7
COLLAR(82M)
90387-084R5-00
Unavailable
8
BUSH, SOLID
90380-12161-00
Unavailable
9
BOLT,WASHER BASED
90105-08100-00
Unavailable
10
COLLAR
90387-081U4-00
Unavailable
11
BUSH, SOLID
90380-12169-00
Unavailable
12
WASHER, PLATE
90201-08049-00
$7.49
13
ARM, PIVOT 2
86M-47332-00-00
Unavailable
14
HOOK 1
86S-47446-01-00
Unavailable
15
CIRCLIP(13H)
99009-14400-00
$3.59
16
SHAFT 2
8L8-47475-00-00
Unavailable
17
BOLT (8V0)
90109-10771-00
Unavailable
18
COLLAR 1
8V0-47365-00-00
Unavailable
19
WASHER
8V0-47384-00-00
Unavailable
20
HOOK 2
84M-47447-00-00
Unavailable
21
PLATE, GUIDE
87M-47467-00-00
Unavailable
22
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
23
BAR, SUSPENSION
86M-47451-00-00
Unavailable
24
SHAFT 4
8V0-47486-00-00
Unavailable
25
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
26
SPRING, REAR 3
8Y3-47473-00-00
Unavailable
27
SPRING, REAR 4
8Y3-47474-00-00
Unavailable
28
STOPPER 2
86M-47496-00-00
Unavailable
29
BOLT(3RV)
97014-06035-00
Unavailable
30
WASHER, PLATE
90201-06747-00
Unavailable
31
NUT, NYLON
95707-06300-00
Unavailable
32
BRACKET, 3
86M-47417-00-00
Unavailable
33
COLLAR (8U7)
90387-083G6-00
Unavailable
34
BOLT (83L)
97027-08220-00
Unavailable
35
COLLAR
90387-08632-00
Unavailable
36
BOLT, WASHER BASED(51X)
90105-08346-00
Unavailable
37
NUT, SELF-LOCKING
90185-08169-00
Unavailable
38
WASHER (1T1)
90201-08649-00
Unavailable
39
NUT, NYLON
95717-08300-00
$2.70
40
COLLAR 3
8K2-47479-01-00
Unavailable
41
NUT, NYLON
95707-10300-00
Unavailable
42
WASHER, PLATE (888)
90201-20279-00
Unavailable
