TRACK SUSPENSION 1

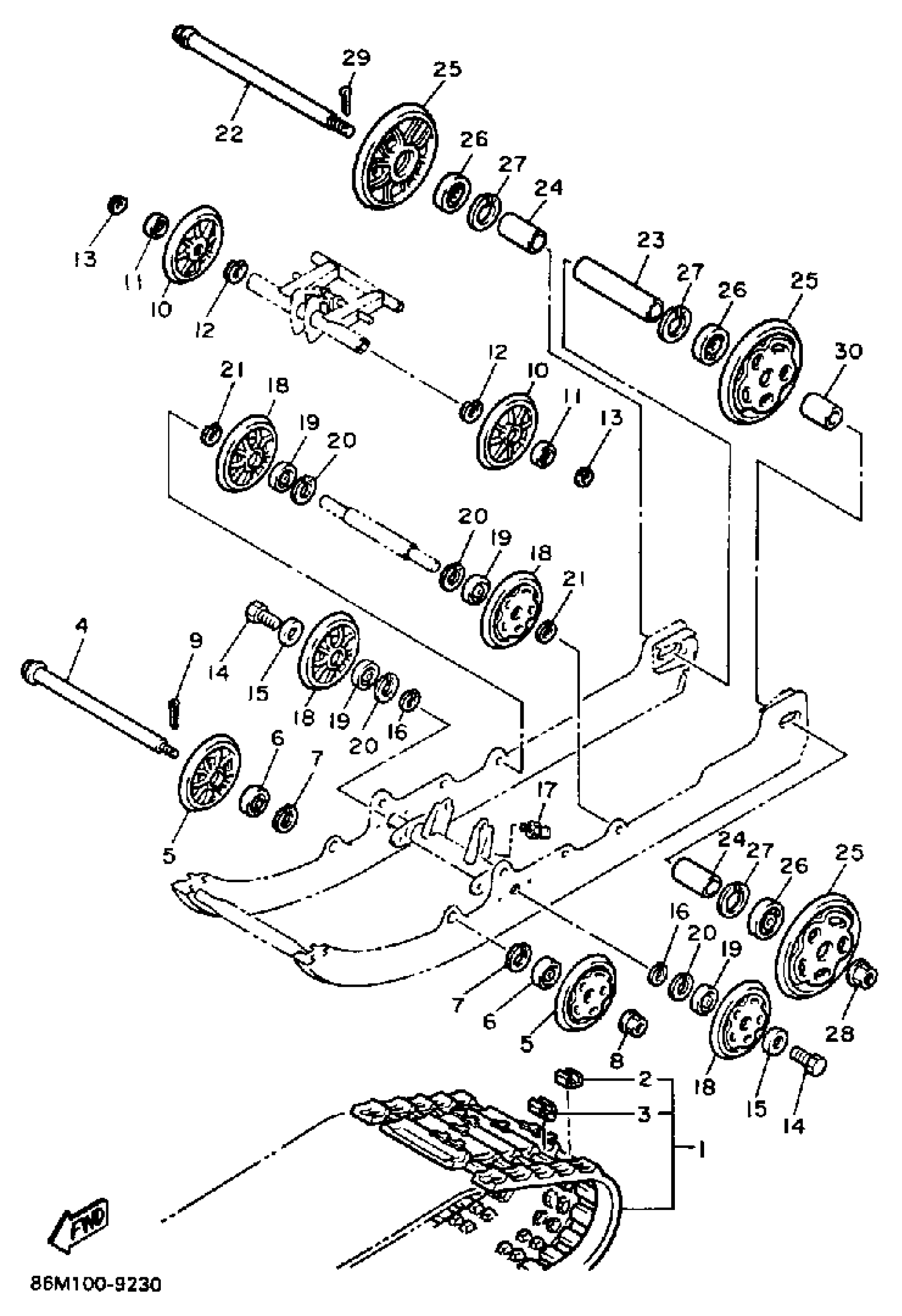

Yamaha EX570N (EXCITER) 1989 TRACK SUSPENSION 1 Diagram
#
Description
Price
1
TRACK ASSEMBLY
82M-47110-00-00
Unavailable
2
PLATE, REINFORCEMENT
89A-47113-00-00
$5.49
3
METAL, SLIDE
8A5-47115-00-00
Unavailable
4
SHAFT 5
82M-47487-00-00
Unavailable
5
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
6
BEARING(8AB)
93306-00444-00
$41.99
7
CIRCLIP(5U8)
99009-42500-00
$8.49
8
NUT, SELF-LOCKING (8BF)
95607-14200-00
$12.49
9
PIN, COTTER
91490-30030-00
$8.49
10
SUSPENSION WHEEL COMP
885-47320-01-00
$72.99
11
BEARING(8AB)
93306-00444-00
$41.99
12
CIRCLIP(5U8)
99009-42500-00
$8.49
13
CIRCLIP(1AR)
99009-20400-00
$8.49
14
BOLT (8K2)
90109-08559-00
$8.49
15
WASHER (8G1)
90201-08681-00
$7.49
16
CIRCLIP(1EY)
99009-22400-00
Unavailable
17
NIPPLE, GREASE
93700-06M03-00
Unavailable
18
SUSPENTION WHEEL COMP
87M-47320-00-00
$84.99
19
BEARING(8AB)
93306-00444-00
$41.99
20
CIRCLIP(5U8)
99009-42500-00
$8.49
21
CIRCLIP(1AR)
99009-20400-00
$8.49
22
REAR AXLE COMP.
8L8-47520-02-00
Unavailable
23
COLLAR
90387-20023-00
Unavailable
24
COLLAR
90387-20022-00
Unavailable
25
GUIDE WHEEL COMP.
8K2-47530-00-00
Unavailable
26
BRG,R-B 62042RS 47MM 110G KY
93306-20417-00
Unavailable
27
CIRCLIP(48Y)
99009-47500-00
Unavailable
28
NUT, SELF-LOCKING (8BF)
95607-14200-00
$12.49
29
PIN, COTTER
91490-30030-00
$8.49
30
COLLAR
90387-204R3-00
Unavailable
