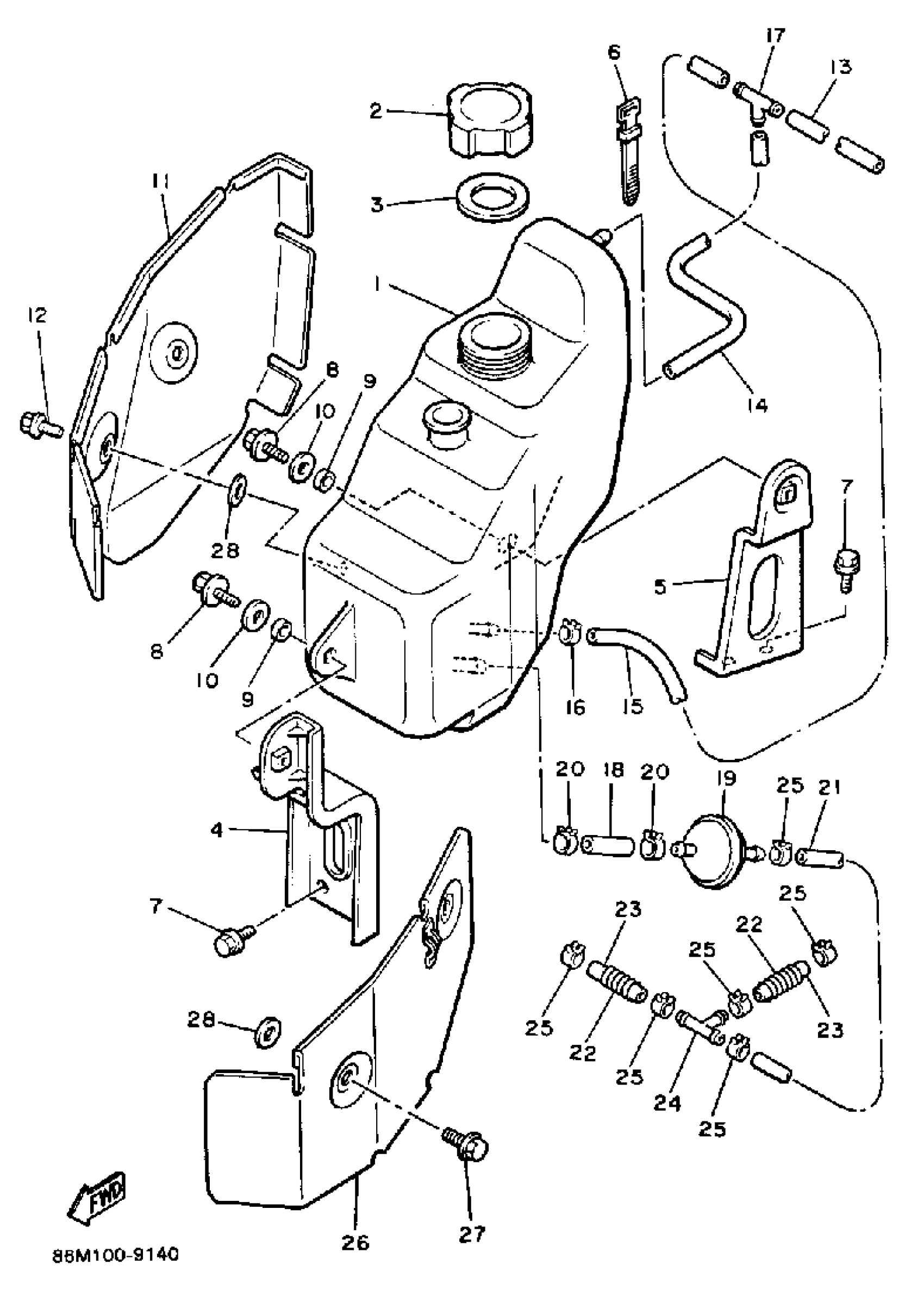

Yamaha EX570N (EXCITER) 1989 OIL TANK Diagram
#
Description
Price
1
TANK, OIL
82M-21751-00-00
Unavailable
2
BODY, CAP
8LU-21771-00-00
$31.99
3
GASKET, TANK (867)
90430-31003-00
$10.49
4
BRACKET, OIL TANK 1
82M-2193E-00-00
Unavailable
5
BRACKET, OIL TANK 2
82M-2193F-00-00
Unavailable
6
BAND, SWITCH CORD
25G-83936-01-00
$4.78
7
BOLT, FLANGE
95817-06012-00
$1.43
8
BOLT
90109-06757-00
Unavailable
9
COLLAR
90387-06704-00
Unavailable
10
WASHER, PLATE
90201-06380-00
$0.60
11
PLATE
84M-2176E-00-00
Unavailable
12
BOLT, FLANGE
95817-06012-00
$1.43
13
TUBE, FLEXIBLE VINYL(8AT)
91A30-05125-00
Unavailable
14
TUBE,FLEXIBLE VINYL(85R)
91A30-05080-00
$18.99
15
HOSE
90446-09262-00
Unavailable
16
CLIP (8A1)
90467-09026-00
Unavailable
17
PIPE, JOINT
801-24376-00-00
Unavailable
18
HOSE
91A30-07036-00
Unavailable
19
HOUSING STRAINER ASSY
8G8-13410-00-00
Unavailable
20
CLIP (7K7)
90467-11044-00
Unavailable
21
TUBE, FLEXIBLE VINYL(8AK)
91A30-05039-00
Unavailable
22
SPRG., COMPRESSION (8BY1)
90501-083J9-00
Unavailable
23
TUBE,FLEXIBLE VINYL(85R)
91A30-05080-00
$18.99
24
PIPE, JOINT
801-24376-00-00
Unavailable
25
CLIP (8A1)
90467-09026-00
Unavailable
26
COVER
8AY-2172W-00-00
Unavailable
27
BOLT, FLANGE
95817-06012-00
$1.43
28
WASHER, SPECIAL 1
84M-21715-00-00
Unavailable
