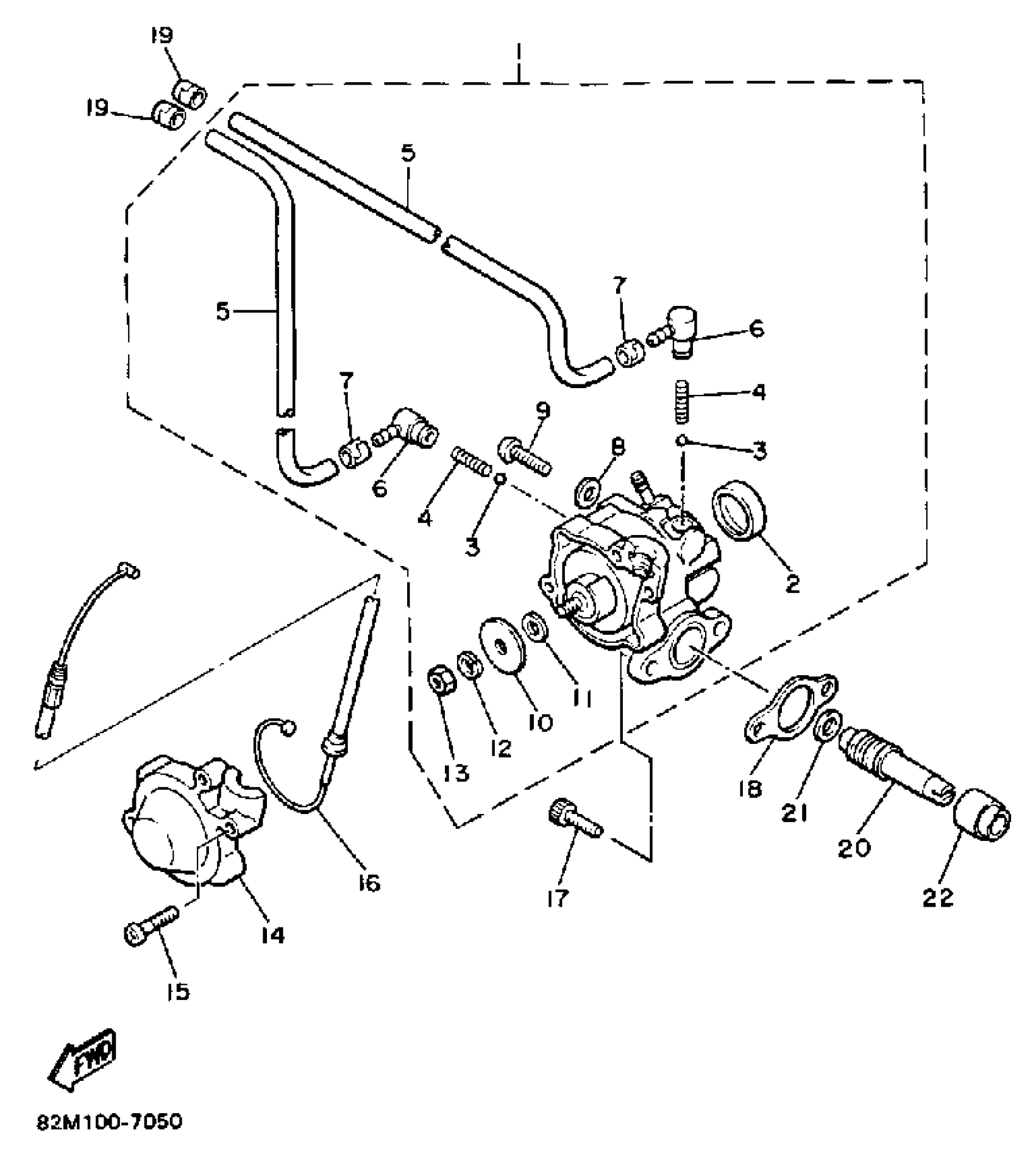

Yamaha EX570N (EXCITER) 1989 OIL PUMP Diagram
#
Description
Price
1
OIL PUMP ASSY
88R-13101-00-00
Unavailable
1
CARBURETOR ASY 1
87M-14101-00-00
Unavailable
2
. PLUG
90338-21100-00
Unavailable
3
BALL
93505-32002-00
$2.92
4
SPRING (278-13169-00)
90501-02018-00
$9.49
5
TUBE, FLEXIBLE VINYL(8AV)
91A30-03039-00
$10.49
6
NOZZLE
353-13552-01-00
$9.99
7
CLIP (2A6)
90468-02025-00
$9.49
8
GASKET 137131870000
90430-04004-00
$9.49
9
SCREW, BINDING
98907-04020-00
Unavailable
10
PLATE, ADJUSTING
137-13138-01-00
Unavailable
11
SHIM,PLUNGER
137-13137-00-03
$5.49
11
SHIM,PLUNGER
137-13137-00-05
$6.99
11
SHIM,PLUNGER
137-13137-00-10
$7.99
12
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
13
NUT, HEXAGON (663)
95380-05600-00
Unavailable
14
COVER, ADJUST PULLEY
8A5-13146-01-00
Unavailable
15
SCREW, PAN HEAD
98507-04018-00
Unavailable
16
PUMP CABLE ASSEMBLY
84M-26320-01-00
Unavailable
17
BOLT, SOCKET
91317-05016-00
Unavailable
18
GASKET, PUMP CASE
126-13116-01-00
Unavailable
19
CLIP (2A6)
90468-02025-00
$9.49
20
SHAFT, WORM
82M-13175-00-00
Unavailable
21
WASHER, PLATE (1E7)
90201-08624-00
Unavailable
22
METAL, WORM SHAFT OUTER
821-13176-00-00
Unavailable
