Description

Price

1

SPEEDOMETER ASSY

8CR-83580-40-00

Unavailable

2

TACHOMETER ASSEMBLY

88R-83540-20-00

Unavailable

3

COVER,METER

88R-83559-20-00

Unavailable

4

CASE, INNER

82M-8353H-01-00

Unavailable

5

KNOB, TRIP METER

29L-83578-00-00

Unavailable

6

SOCKET CORD ASSY

88R-83509-20-00

Unavailable

7

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

8

SCREW, PAN HEAD (31A)

90167-04021-00

Unavailable

9

SCREW, TAPPING (10M)

90164-04009-00

$7.49

10

NUT(6TA)

95307-04600-00

$8.49

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

12

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

13

WASHER, PLATE

90201-06380-00

$0.60

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

DAMPER

5J0-83513-00-00

$15.49

16

SPEEDOMETER CABLE ASSEMBLY

82M-83550-00-00

Unavailable

17

METER GEAR HOUSING COMP.

8L9-47700-00-00

Unavailable

18

JOINT

8K4-47715-00-00

Unavailable

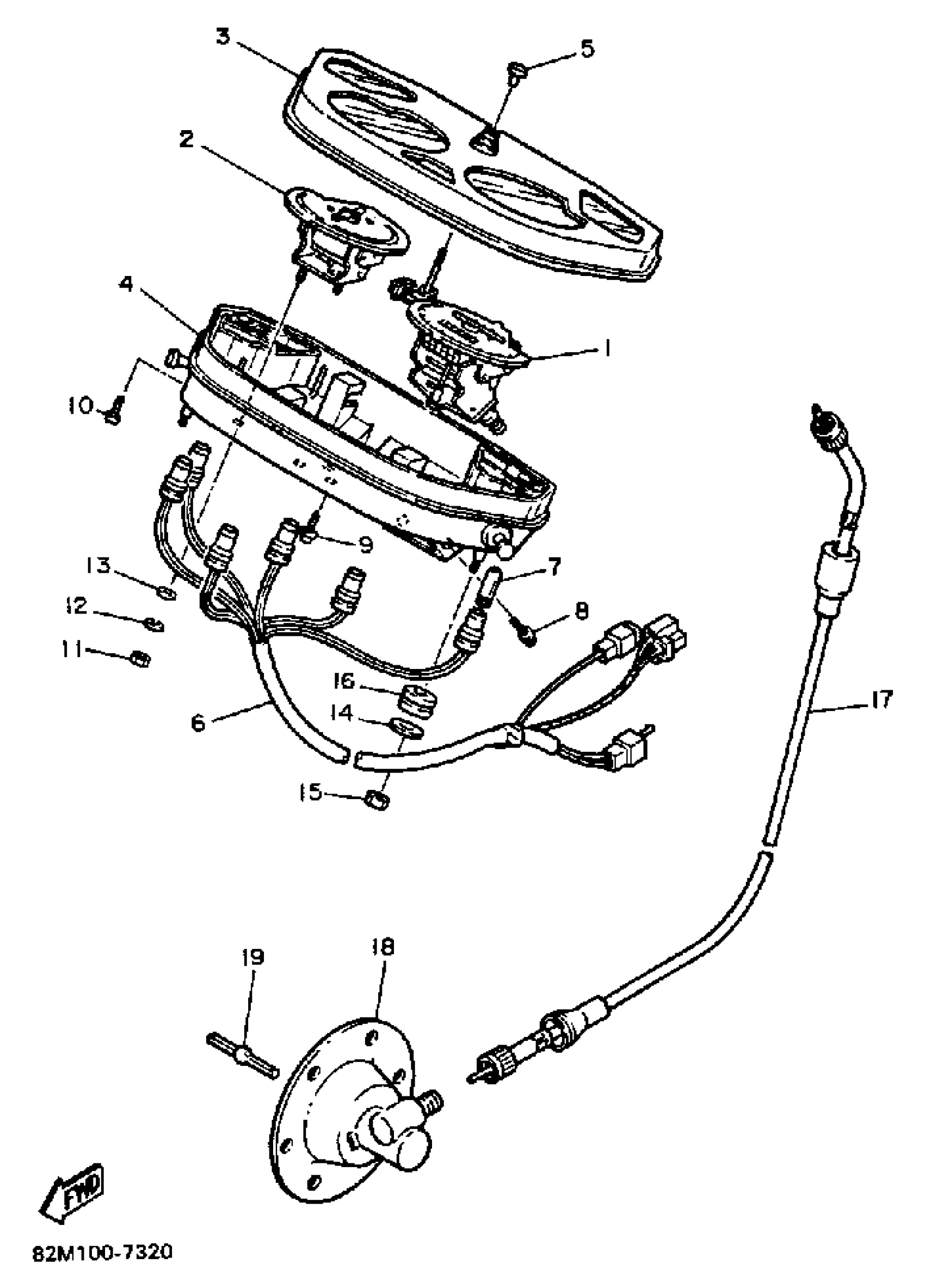

Yamaha EX570N (EXCITER) 1989 METER Diagram

SPEEDOMETER ASSY

TACHOMETER ASSEMBLY

COVER,METER

CASE, INNER

KNOB, TRIP METER

SOCKET CORD ASSY

BULB, MTR.12V3.4W

SCREW, PAN HEAD (31A)

SCREW, TAPPING (10M)

NUT(6TA)

YBS67-4 WASHER, SPRING

YBS66-4 WASHER, PLAIN

WASHER, PLATE

NUT, HEXAGON

DAMPER

SPEEDOMETER CABLE ASSEMBLY

METER GEAR HOUSING COMP.

JOINT
