Description

Price

1

CRANKCASE ASSEMBLY

84N-15100-02-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

PIN, DOWEL (8H1)

93604-07141-00

$2.17

4

PIN (2H7)

93603-10049-00

Unavailable

5

JOINT, BREATHER

J38-11116-00-00

$3.80

6

BOLT, FLANGE(8BN)

95817-08085-00

$4.08

7

COVER, CRANKCASE R

82M-15421-00-00

Unavailable

8

SEAL, OIL (30X)

93102-12321-00

$12.49

9

BEARING(82M)

93306-20117-00

$34.99

10

CIRCLIP(82M)

93450-34118-00

$0.60

11

BOLT, FLANGE

95817-08040-00

$7.49

12

BOLT, FLANGE(JF2)

95817-08080-00

$4.24

13

PLATE

8K4-12633-00-00

Unavailable

14

NUT, FLANGE

95704-08500-00

$8.49

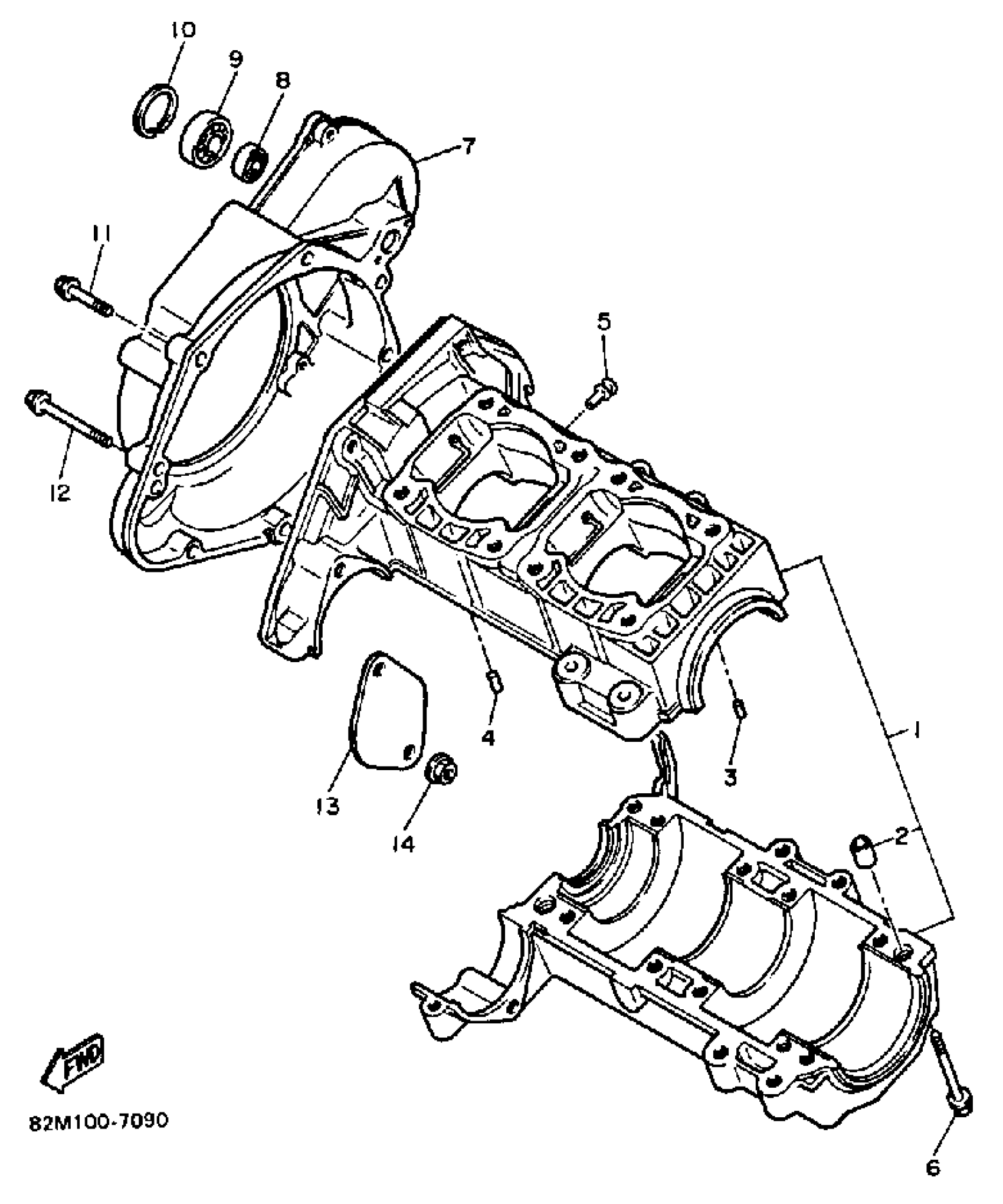

Yamaha EX570N (EXCITER) 1989 CRANKCASE Diagram

CRANKCASE ASSEMBLY

PIN, DOWEL

PIN, DOWEL (8H1)

PIN (2H7)

JOINT, BREATHER

BOLT, FLANGE(8BN)

COVER, CRANKCASE R

SEAL, OIL (30X)

BEARING(82M)

CIRCLIP(82M)

BOLT, FLANGE

BOLT, FLANGE(JF2)

PLATE

NUT, FLANGE
