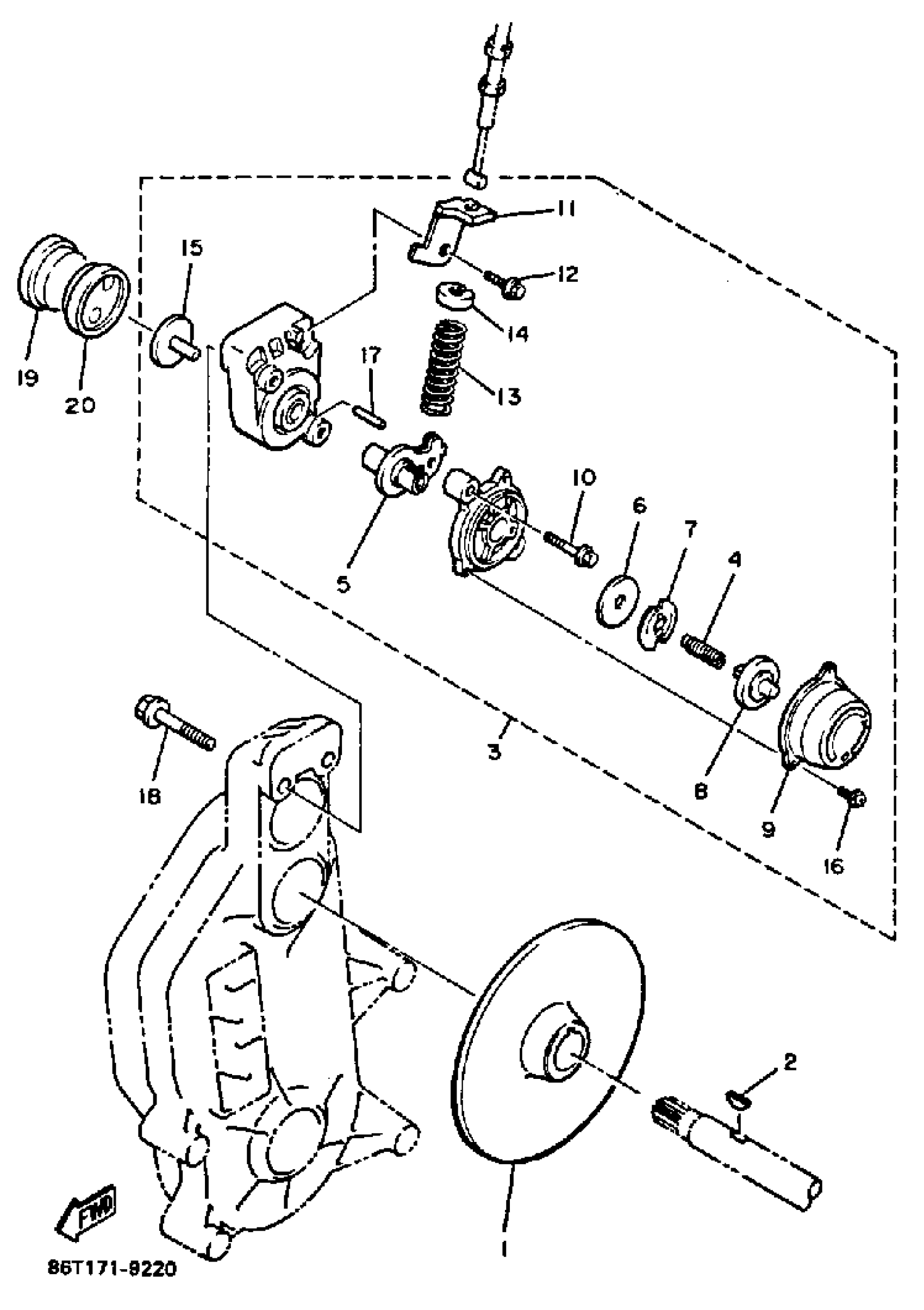

Yamaha EX570N (EXCITER) 1989 BRAKE Diagram

#

Description
Price

1

DISC,BRAKE

8L8-25831-01-00

Unavailable

2

KEY

8J7-25848-00-00

$15.99

3

CALIPER BODY COMP.1

86M-25730-01-00

Unavailable

4

SCREW, ADJUSTING 1

86M-25738-00-00

$17.49

5

. LEVER, BRAKE

86M-25726-00-00

Unavailable

6

SHIM, CALIPER

86M-25827-00-00

Unavailable

7

LOCK, ONE WAY 2

86M-25773-00-00

Unavailable

8

RATCHET, ADJUSTING

86M-25771-00-00

$16.49

9

COVER

86M-25772-00-00

Unavailable

10

BOLT, CALIPER

86M-25818-00-00

Unavailable

11

. BRACKET, CALIPER

86M-25721-00-00

Unavailable

12

BOLT 3

86M-25826-00-00

$1.51

13

. SPRING, COMPRESSION

86M-25743-00-00

Unavailable

14

. SPRING, STOPPER

86M-25714-00-00

Unavailable

15

PLATE, BACK UP

86M-25733-00-00

Unavailable

16

BOLT, FITTING

86M-25833-00-00

Unavailable

17

PIN 2

86M-25744-00-00

Unavailable

18

BOLT, FLANGE(8AB)

95817-10050-00

Unavailable

19

PAD, CALIPER 2

89J-25811-00-00

Unavailable

20

PAD, CALIPER 2

89J-25911-00-00

Unavailable
