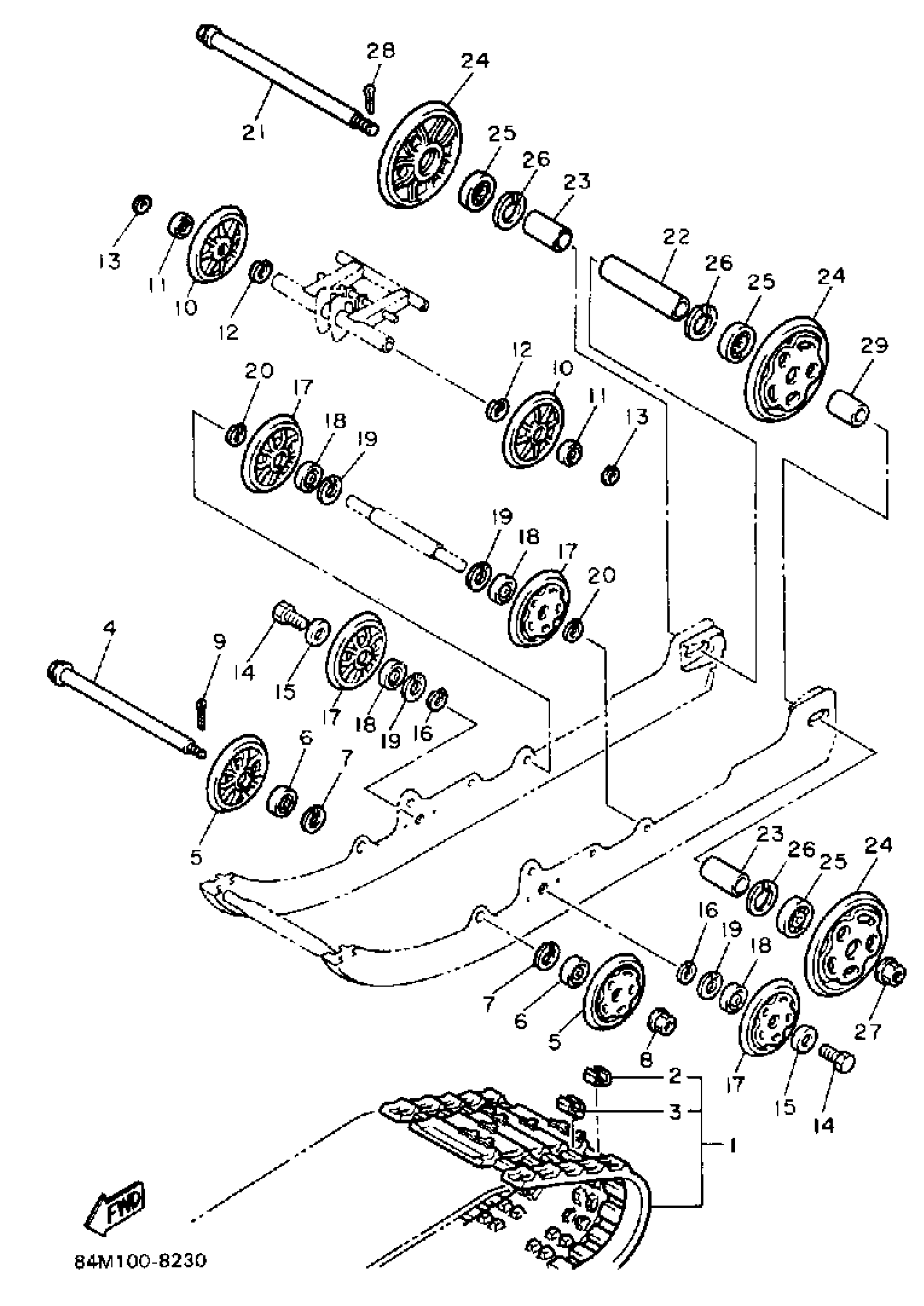

Yamaha EX570M (EXCITER) 1988 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSEMBLY

82M-47110-00-00

Unavailable

2

PLATE, REINFORCEMENT

89A-47113-00-00

$4.11

3

METAL, SLIDE

8A5-47115-00-00

$12.99

4

SHAFT 5

82M-47487-00-00

Unavailable

5

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.01

6

BEARING(8AB)

93306-00444-00

$34.26

7

CIRCLIP(5U8)

99009-42500-00

$6.32

8

NUT, SELF-LOCKING (8BF)

95607-14200-00

$9.49

9

PIN, COTTER

91490-30030-00

$6.88

10

SUSPENSION WHEEL COMP

885-47320-01-00

$66.62

11

BEARING(8AB)

93306-00444-00

$34.26

12

CIRCLIP(5U8)

99009-42500-00

$6.32

13

CIRCLIP(1AR)

99009-20400-00

$5.75

14

BOLT (8K2)

90109-08559-00

$6.82

15

WASHER (8G1)

90201-08681-00

$6.12

16

CIRCLIP(1EY)

99009-22400-00

Unavailable

17

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.01

18

BEARING(8AB)

93306-00444-00

$34.26

19

CIRCLIP(5U8)

99009-42500-00

$6.32

20

CIRCLIP(1AR)

99009-20400-00

$5.75

21

REAR AXLE COMP.

8L8-47520-02-00

Unavailable

22

COLLAR

90387-20023-00

Unavailable

23

COLLAR

90387-20022-00

Unavailable

24

GUIDE WHEEL COMP.

8K2-47530-00-00

Unavailable

25

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

Unavailable

26

CIRCLIP(48Y)

99009-47500-00

Unavailable

27

NUT, SELF-LOCKING (8BF)

95607-14200-00

$9.49

28

PIN, COTTER

91490-30030-00

$6.88

29

COLLAR

90387-204R3-00

Unavailable
