- EX570M (EXCITER) 1988
RADIATOR-HOSE

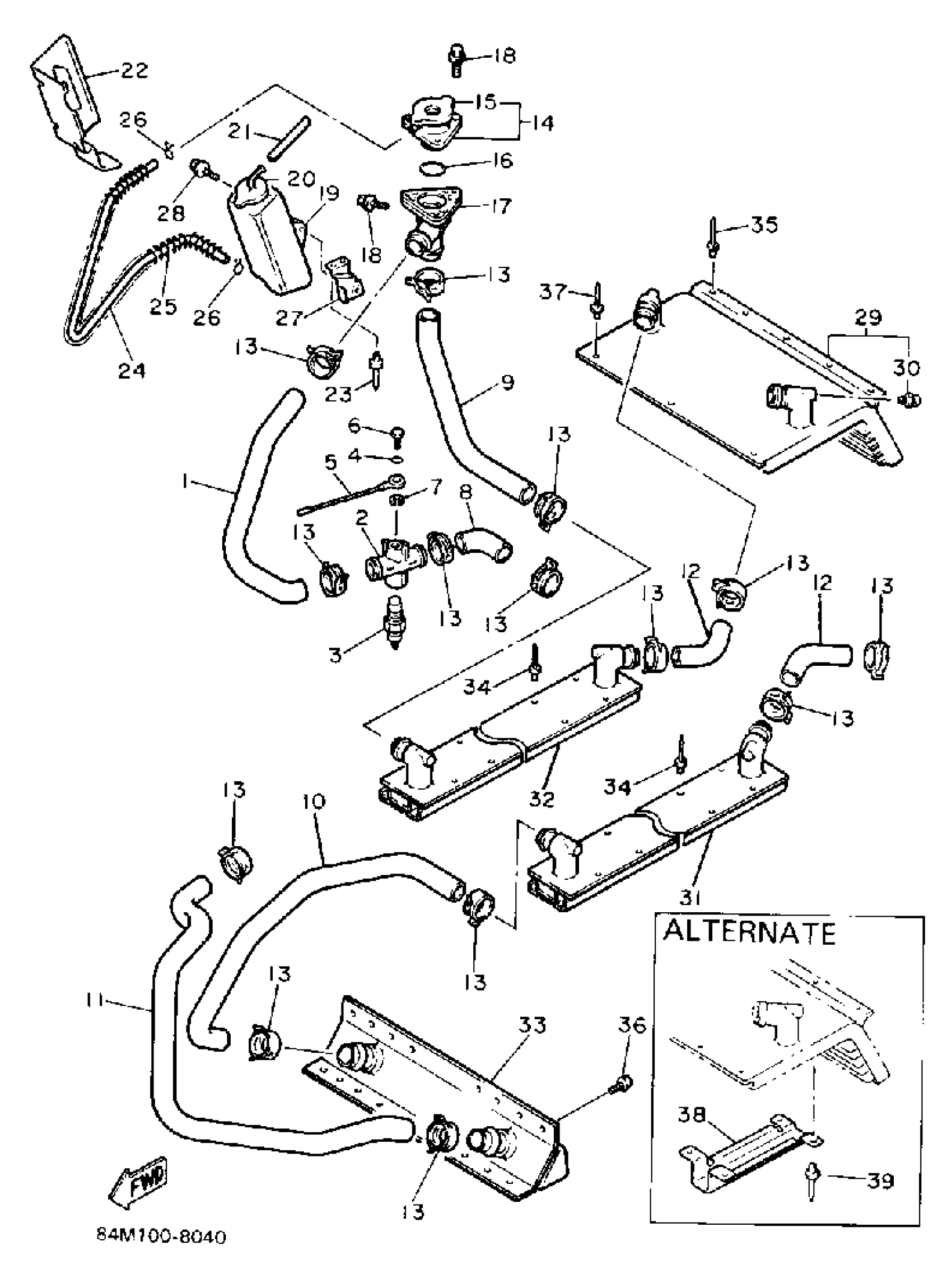

Yamaha EX570M (EXCITER) 1988 RADIATOR-HOSE Diagram
#
1
PIPE 2
82M-12482-00-00
Unavailable
2
JOINT
82M-12446-00-00
Unavailable
3
THERMO SWITCH ASSEMBLY
83M-82560-01-00
Unavailable
4
GASKET (716)
90430-16152-00
Unavailable
5
WIRE, SUB-LEAD
87D-82318-00-00
Unavailable
6
BOLT(3JP)
97017-06010-00
$3.76
7
WASHER, SPRING
92995-06100-00
Unavailable
8
PIPE 8
82M-1248A-00-00
Unavailable
9
PIPE 3
82M-12483-00-00
Unavailable
10
PIPE 4
82M-12484-00-00
Unavailable
11
PIPE 5
82M-12485-01-00
Unavailable
12
PIPE 6
82M-12476-00-00
Unavailable
13
CLIP (8M6)
90467-28046-00
$16.99
14
SUPT, FILLER NECK
1FK-12591-00-00
Unavailable
15
CAP, RADIATOR
1B3-12462-00-00
$67.99
16
O-RING(1KT)
93210-27778-00
Unavailable
17
JOINT HOSE 1
82M-W1258-00-00
Unavailable
18
BOLT, FLANGE
95817-06016-00
Unavailable
19
TANK, RECOVERY
82M-21871-00-00
Unavailable
20
CAP
81E-21815-00-00
Unavailable
21
HOSE (L70)
90445-112E0-00
Unavailable
22
BRACKET, RECOVERY TANK
82M-21873-00-00
Unavailable
23
RIVET, BLIND
90267-48125-00
Unavailable
24
HOSE (L420)
90445-092K1-00
Unavailable
25
SPRG., COMPRESSION (8BY1)
90501-083J9-00
Unavailable
26
CLIP (8A1)
90467-09026-00
Unavailable
27
BRACKET 1
89J-1244E-00-00
Unavailable
28
BOLT, WITH WASHER(8V7)
90119-06108-00
Unavailable
29
HEAT EXCHANGER ASY
82M-12440-02-00
Unavailable
30
SCREW, BREED
82M-1247H-00-00
Unavailable
31
HEAT EXCHANGER
82M-1240E-01-00
Unavailable
32
HEAT EXCHANGER
82M-1240F-02-00
Unavailable
33
HEAT EXCHANGER ASSEMBLY 4
82M-1241A-00-00
Unavailable
34
RIVET, BLIND
90267-48060-00
Unavailable
35
RIVET, BLIND
90267-47197-00
Unavailable
36
SCREW, BINDING
98907-06012-00
Unavailable
37
RIVET, BLIND
90267-48117-00
Unavailable
38
PROTECTOR, FRAME
82M-21978-00-00
Unavailable
39
RIVET, BLIND
90267-48060-00
Unavailable
