Description

Price

1

STATOR ASSEMBLY

82M-85510-20-00

Unavailable

2

. COIL, SOURCE (8T0-85511-20)

86M-85511-00-00

Unavailable

3

. COIL, LIGHTING 1

8H8-85513-20-00

Unavailable

4

. COIL, PULSER (8N5-85580-20)

82M-85580-20-00

Unavailable

5

CLAMP, READ

445-81328-20-00

Unavailable

6

SCREW, PAN HEAD

98507-04018-00

$2.19

7

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

8

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

9

. COIL, LIGHTING 2 (8V0-85514-20)

82M-85514-20-00

Unavailable

10

. SPACER

8T0-85519-20-00

Unavailable

11

SCREW, PAN

98507-05040-00

$8.49

12

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

13

ROTOR ASSY

8V0-85550-21-00

Unavailable

14

SCREW, BIND (705)

98980-06016-00

$8.49

15

WASHER, PLATE 6261117600

90201-06043-00

$7.49

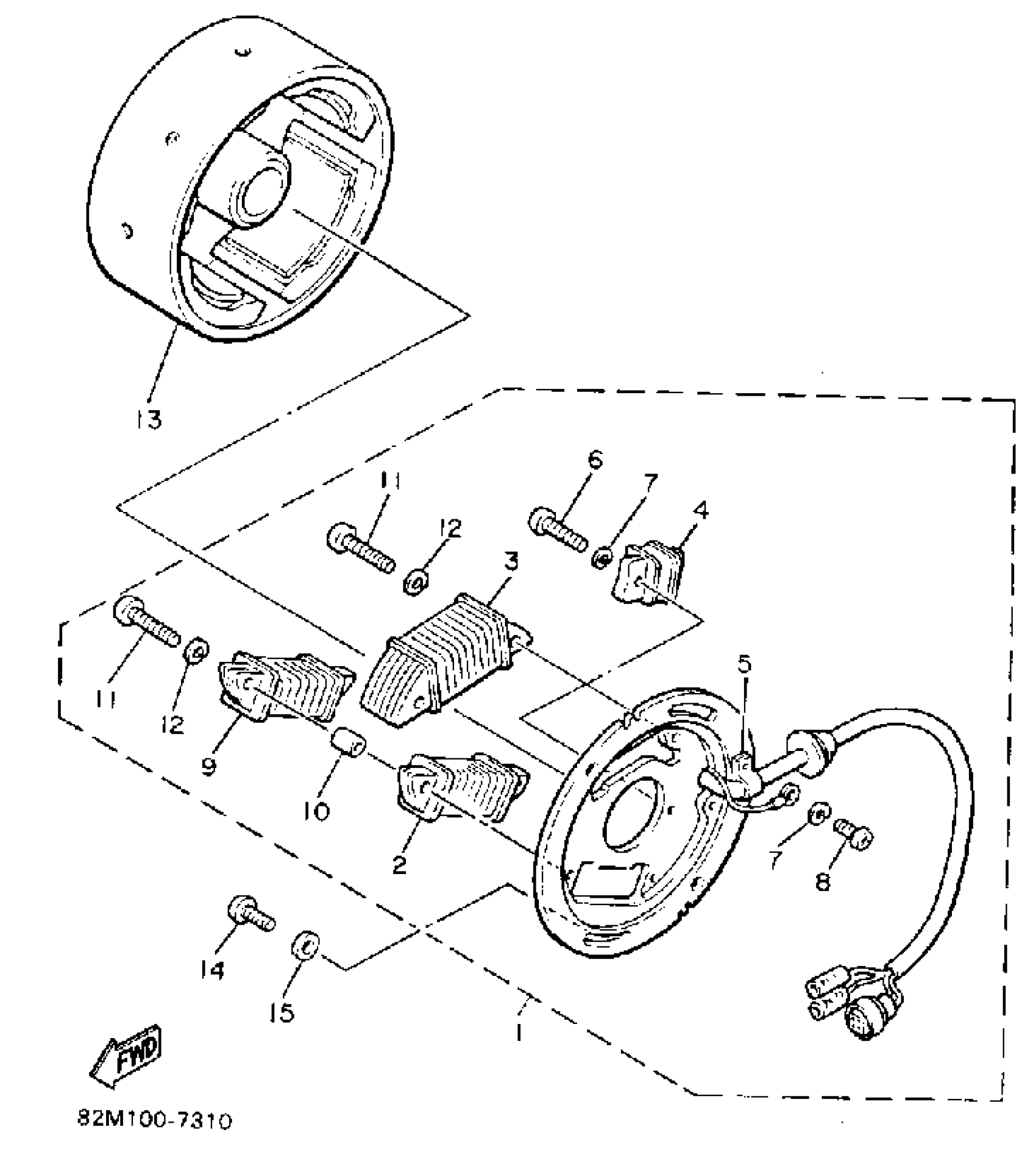

Yamaha EX570M (EXCITER) 1988 GENERATOR Diagram

STATOR ASSEMBLY

. COIL, SOURCE (8T0-85511-20)

. COIL, LIGHTING 1

. COIL, PULSER (8N5-85580-20)

CLAMP, READ

SCREW, PAN HEAD

YBS67-4 WASHER, SPRING

SCREW, PAN HEAD (713)

. COIL, LIGHTING 2 (8V0-85514-20)

. SPACER

SCREW, PAN

YBS67-5 WASHER, SPRING

ROTOR ASSY

SCREW, BIND (705)

WASHER, PLATE 6261117600
