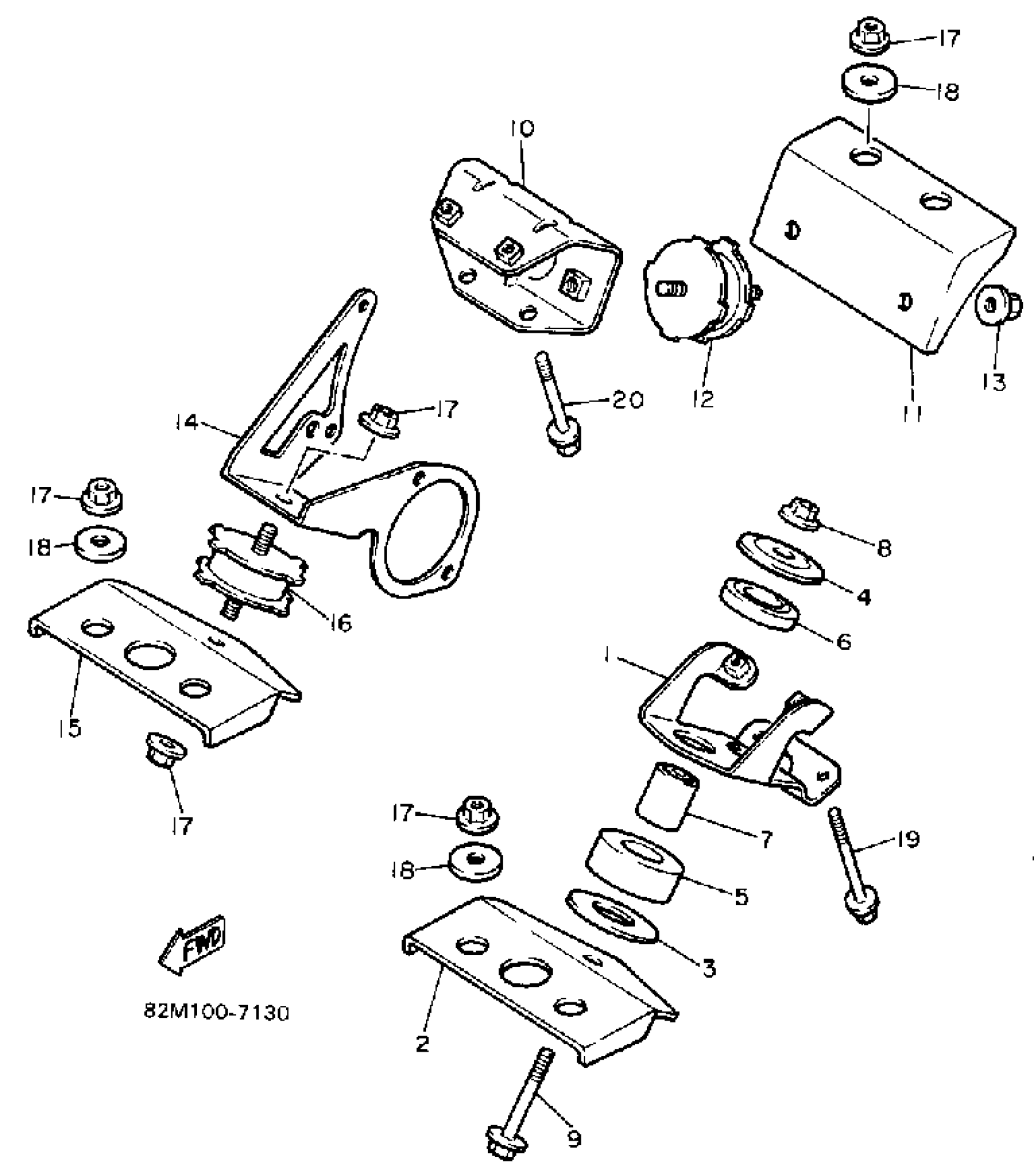

Yamaha EX570M (EXCITER) 1988 ENGINE BRACKET Diagram

#

Description
Price

1

BRACKET, FRONT UPPER 1

82M-21415-00-00

Unavailable

2

BRACKET, FRONT LOWER 1

82M-21417-00-00

Unavailable

3

WASHER (888)

90201-10151-00

Unavailable

4

WASHER, CONICAL SPRING

90208-10034-00

Unavailable

5

DAMPER, RUBBER 1

8U9-21485-00-00

Unavailable

6

DAMPER 2

8U9-21486-00-00

Unavailable

7

BUSH, SOLID

90380-10113-00

Unavailable

8

NUT, FLANGE(3BM)

95704-10500-00

$4.29

9

BOLT, FLANGE(87Y)

95817-10055-00

$5.60

10

BRACKET, REAR UPPER 1

82M-21425-00-00

Unavailable

11

BRACKET, REAR LOWER 1

82M-21427-01-00

Unavailable

12

DAMPER 2

8M6-21486-02-00

Unavailable

13

NUT, FLANGE(3BM)

95704-10500-00

$4.29

14

BRACKET, FRONT UPPER 2

82M-21416-00-00

Unavailable

15

BRACKET, FRONT LOWER 1

82M-21417-00-00

Unavailable

16

DAMPER 2

8M6-21486-02-00

Unavailable

17

NUT, FLANGE(3BM)

95704-10500-00

$4.29

18

WASHER, PLATE (856)

90201-10321-00

Unavailable

19

BOLT, FLANGE(8BN)

95817-08085-00

Unavailable

20

BOLT, FLANGE

95814-08065-00

Unavailable
