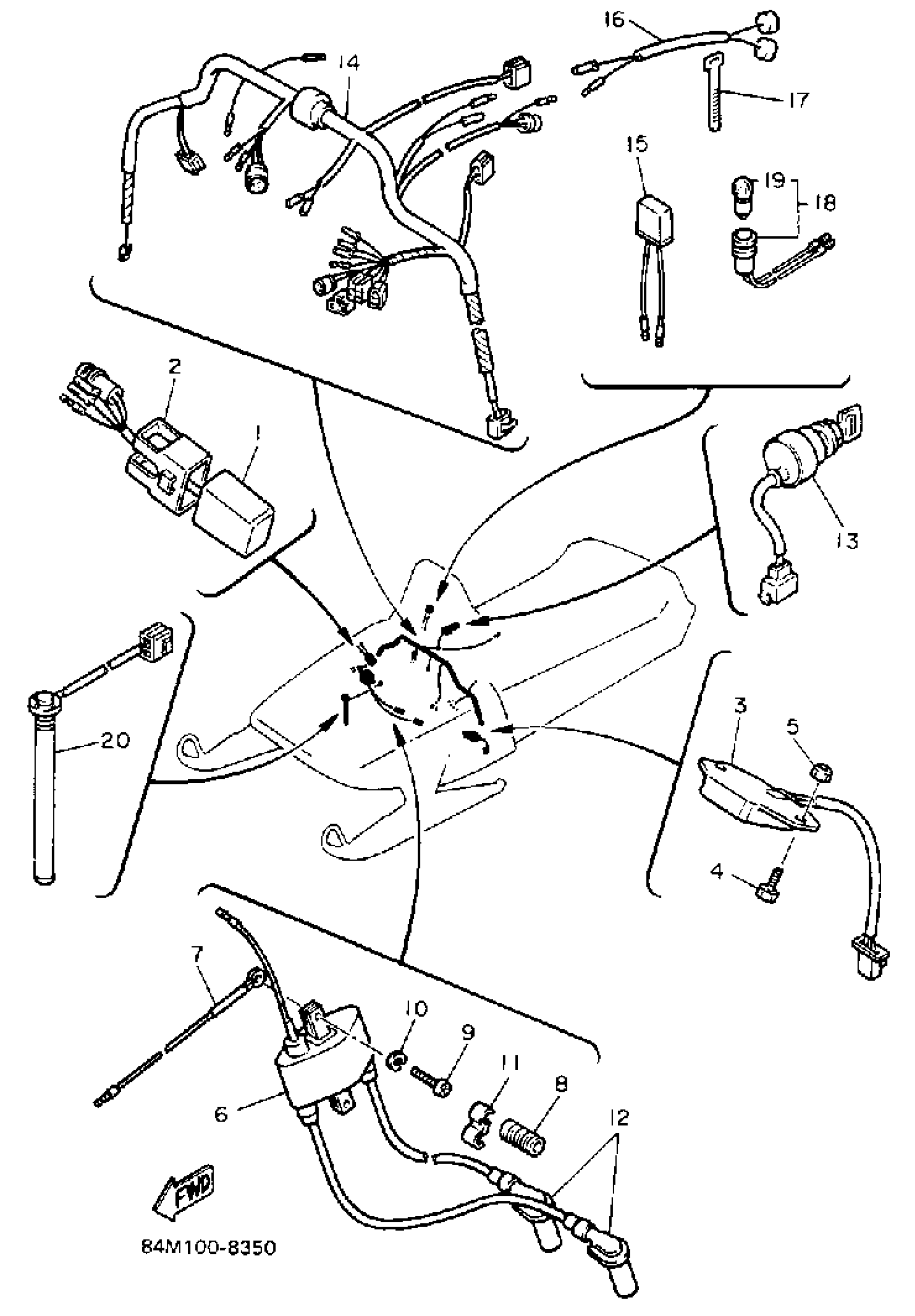

Yamaha EX570M (EXCITER) 1988 ELECTRICAL 1 Diagram

#

Description
Price

1

CDI UNIT ASSY

84M-85540-20-00

Unavailable

2

BAND

2A7-85546-00-00

Unavailable

3

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

4

BOLT(8CP)

97017-06014-00

$8.49

5

NUT, NYLON

95707-06300-00

$3.50

6

IGNITION COIL ASSEMBLY (82M-82310-10)

82M-82310-T0-00

Unavailable

7

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

8

TUBE 1

82M-87196-00-00

Unavailable

9

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

10

WASHER, SPRING

92995-06100-00

Unavailable

11

CLAMP, CORD

861-82361-00-00

Unavailable

12

PLUG CAP ASSY

8DG-82370-00-00

$49.99

13

MAIN SWITCH ASSY

8K4-82510-20-00

Unavailable

14

WIRE HARNESS ASSEMBLY

84M-82590-20-00

Unavailable

15

CHECKER, PILOT LAMP

38W-85774-00-00

Unavailable

16

WIRE, SUB-LEAD

80N-82319-00-00

Unavailable

17

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

18

PILOT LIGHT ASSEMBLY 1

8V0-84301-00-00

Unavailable

19

. BULB (12V5W)

8V0-85353-00-00

Unavailable

20

OIL LUL GAUGE ASY

47X-85720-02-00

Unavailable
