CRANKSHAFT-PISTON

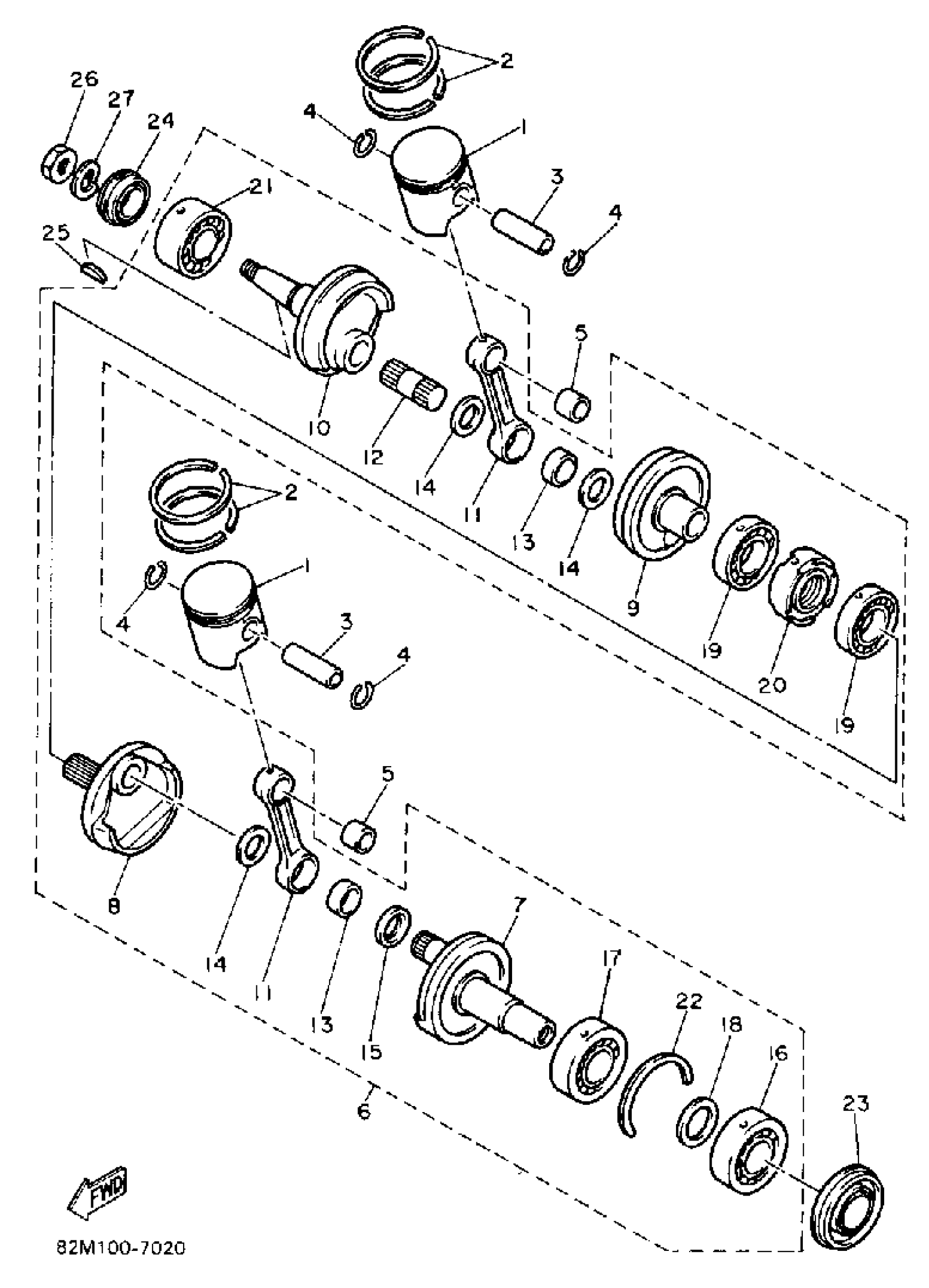

Yamaha EX570M (EXCITER) 1988 CRANKSHAFT-PISTON Diagram
#
1
PISTON STD (STD) (82M-11631-00-93)
82M-11631-02-92
Unavailable
1
PISTON (0.25MM O/S)
82M-11635-00-00
Unavailable
1
PISTON 2 O/S 0.50 (0.50MM O/S)
82M-11636-00-00
Unavailable
2
PISTON RING SET (STD)
8R6-11601-00-00
$70.99
2
PISTON RING SET (1ST O/S)
8R6-11601-10-00
$64.99
2
PISTON RING SET (2ND O/S)
8R6-11601-20-00
$60.99
3
PIN, PISTON
8H8-11633-00-00
$36.99
4
CIRCLIP (8H0)
93450-21053-00
$3.85
5
BRG,CYL-CAL ROLLER 25G KY
93310-320G0-00
$47.99
6
CRANKSHAFT ASSY (8AY)
99999-02922-00
Unavailable
7
CRANK 1
99999-02923-00
Unavailable
8
. CRANK 2
82M-11422-00-00
Unavailable
9
. CRANK 3
82M-11432-00-00
Unavailable
10
. CRANK 4
82M-11442-00-00
Unavailable
11
. ROD, CONNECTING
82M-11651-00-00
Unavailable
12
. PIN, CRANK 1
82M-11681-00-00
Unavailable
13
BEARING,CYL.(8AB)
93310-525S1-00
Unavailable
14
WASHER(8AY)
90209-25325-00
Unavailable
15
WASHER, CRANK PIN
8AY-11685-00-00
Unavailable
16
BEARING
93306-30718-00
Unavailable
17
BEARING (8U9)
93306-20712-00
Unavailable
18
WASHER, PLATE (8R9)
90201-357E4-00
Unavailable
19
BEARING (8U9)
93306-20712-00
Unavailable
20
SEAL, LABYRINTH 1
82M-11515-00-00
Unavailable
21
BEARING(8AB)
93305-30601-00
Unavailable
22
CIRCLIP (834)
93440-80023-00
Unavailable
23
UNAVAILABLE IN PRICE BOOK
93013-35140-00
Unavailable
24
OIL SEAL(82M)
93103-32153-00
Unavailable
25
KEY, WOODRUFF (8R9)
90280-05033-00
Unavailable
26
NUT
90170-16425-00
Unavailable
27
WASHER(JN5)
92907-16100-00
Unavailable
