1987 Yamaha Exciter (EX570L) Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 1987 Yamaha Exciter (EX570L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

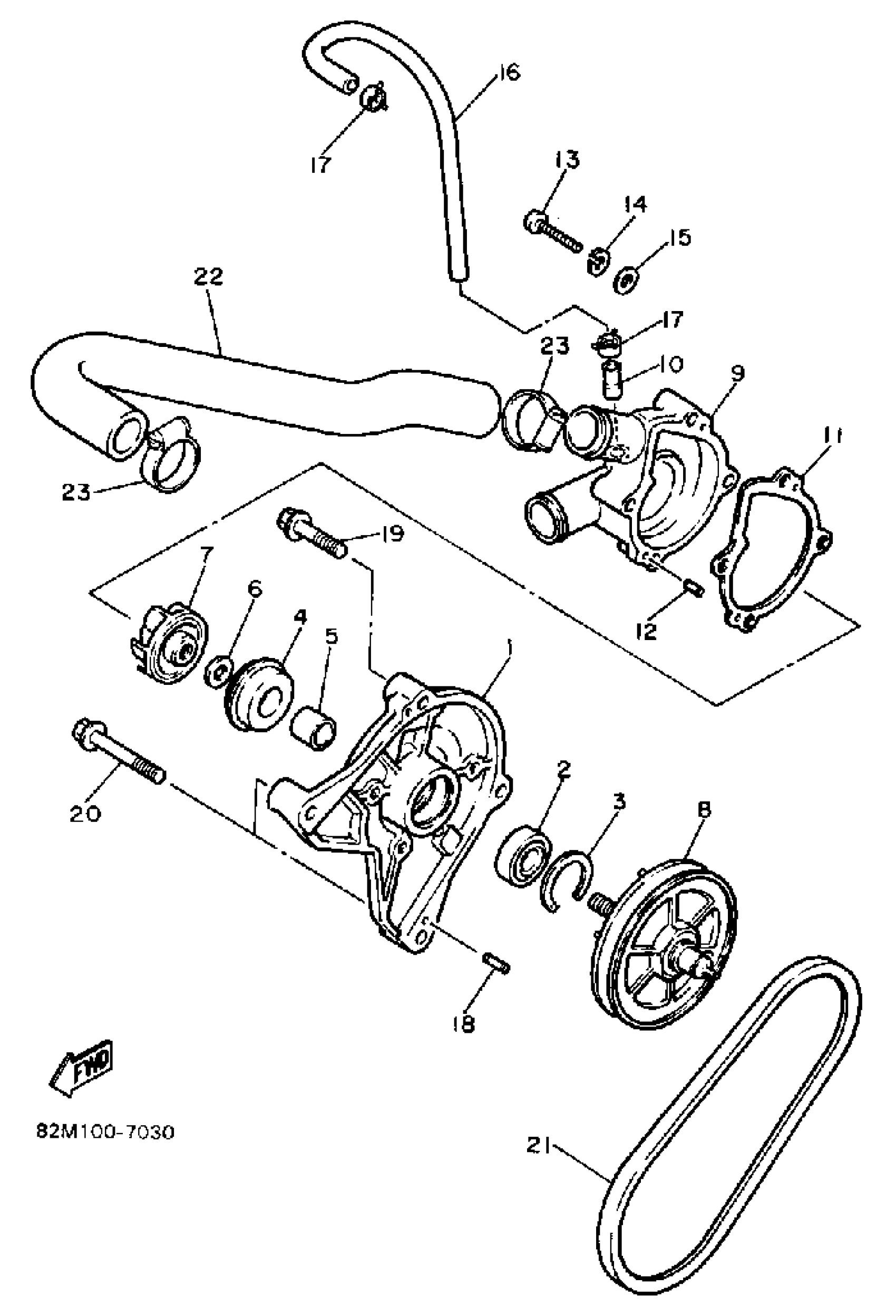

1987 Yamaha Exciter (EX570L) Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, WATER PUMP

82M-W1247-03-00

1
Out of stock

2

BEARING(82M)

93306-20117-00

1
Out of stock

3

CIRCLIP(82M)

93450-34118-00

1
Out of stock

4

SEAL, MECHANICAL

82M-12438-00-00

1
Out of stock

5

STOPPER

82M-12437-00-00

1
Out of stock

6

WASHER, PLATE 2562171800

90201-08088-00

1
Out of stock

7

IMPELLER, WATER PUMP

82M-12451-00-00

1
Out of stock

8

HOUSING, WATER PUMP

82M-W1247-03-00

1
Out of stock

9

COVER, HOUSING

82M-12422-00-00

1
Out of stock

10

JOINT

8A7-12499-00-00

1
Out of stock

11

GASKET,HSNG CVR 1

82M-12427-01-00

1
Out of stock

12

PIN,DOWEL (603)

93604-10011-00

1
Out of stock

13

SCREW, PAN HEAD(6H4)

97885-06035-00

1
Out of stock

14

WASHER, SPRING

92995-06100-00

1
Out of stock

15

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

16

PIPE, 7

82M-12477-00-00

1
Out of stock

17

CLIP (7K7)

90467-11044-00

—
Out of stock

18

PIN,DOWEL (168)

93604-12037-00

—
Out of stock

19

BOLT, FLANGE

95817-08040-00

—
Out of stock

20

BOLT, FLANGE(2UJ)

95814-08110-00

—
Out of stock

21

BELT 1

82M-12444-00-00

—
Out of stock

22

PIPE 1

82M-12481-00-00

1
Out of stock

23

CLAMP, HOSE

90460-38292-00

1
Out of stock
