1987 Yamaha Exciter (EX570L) Engine Bracket Diagram

← All diagrams

Find the part on the Engine Bracket diagram for your 1987 Yamaha Exciter (EX570L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

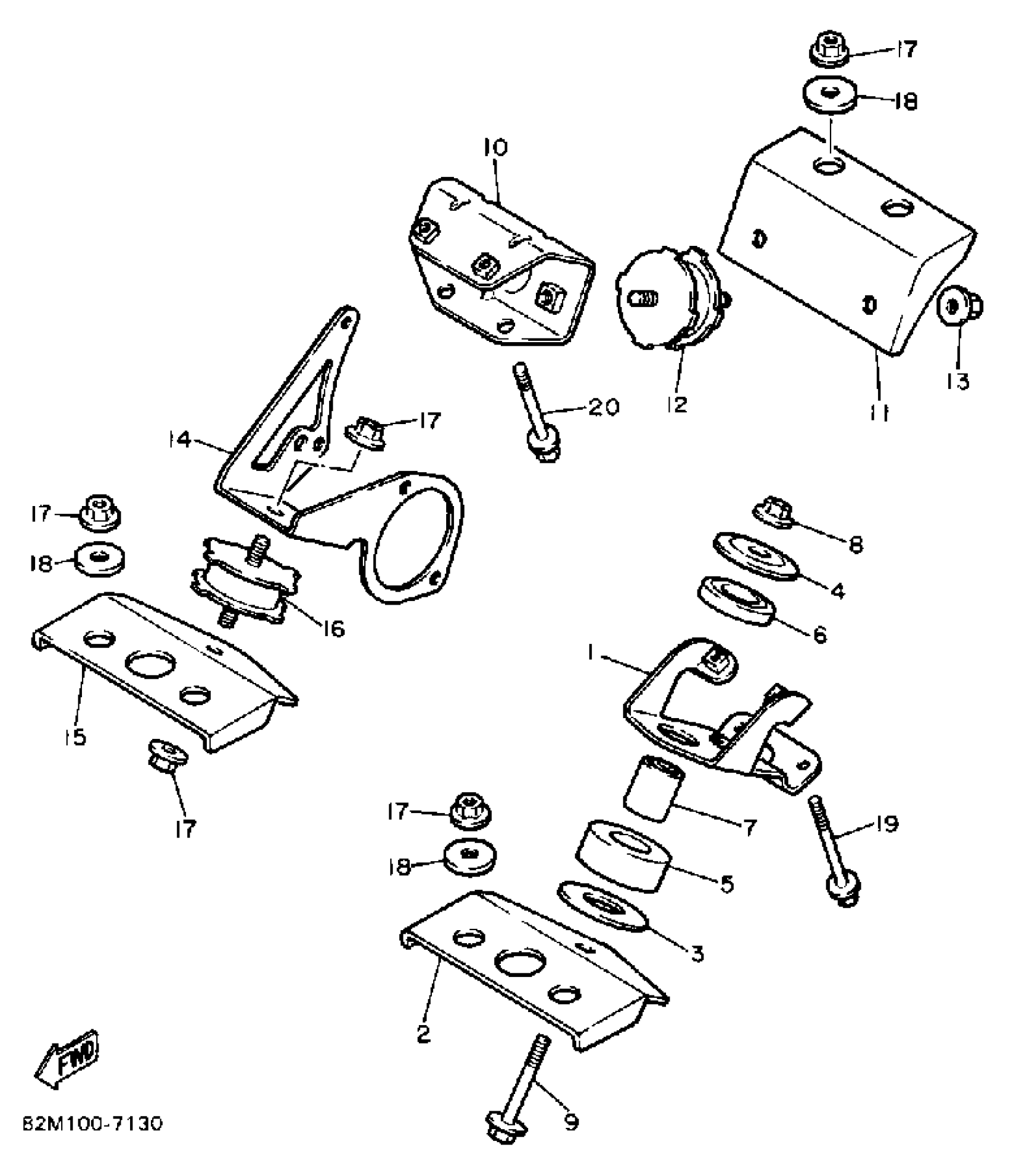

1987 Yamaha Exciter (EX570L) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FRONT UPPER 1

82M-21415-00-00

1
Out of stock

2

BRACKET, FRONT LOWER 1

82M-21417-00-00

1
Out of stock

3

WASHER (888)

90201-10151-00

—

$3.94

In stock

4

WASHER, CONICAL SPRING

90208-10034-00

1
Out of stock

5

DAMPER, RUBBER 1

8U9-21485-00-00

1
Out of stock

6

DAMPER 2

8U9-21486-00-00

1
Out of stock

7

BUSH, SOLID

90380-10113-00

1
Out of stock

8

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

9

BOLT, FLANGE(87Y)

95817-10055-00

1

$4.54

In stock

10

BRACKET, REAR UPPER 1

82M-21425-00-00

—

$14.58

In stock

11

BRACKET, REAR LOWER 1

82M-21427-01-00

1
Out of stock

12

DAMPER 2

8M6-21486-02-00

1
Out of stock

13

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

14

BRACKET, FRONT UPPER 2

82M-21416-00-00

1
Out of stock

15

BRACKET, FRONT UPPER 2

82M-21416-00-00

1
Out of stock

16

DAMPER 2

8M6-21486-02-00

1
Out of stock

17

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

18

WASHER, PLATE (856)

90201-10321-00

—

$5.43

In stock

19

BOLT, FLANGE(8BN)

95817-08085-00

—
Out of stock

20

BOLT, FLANGE

95814-08065-00

—

$3.54

In stock
