SHROUD - WINDSHIELD

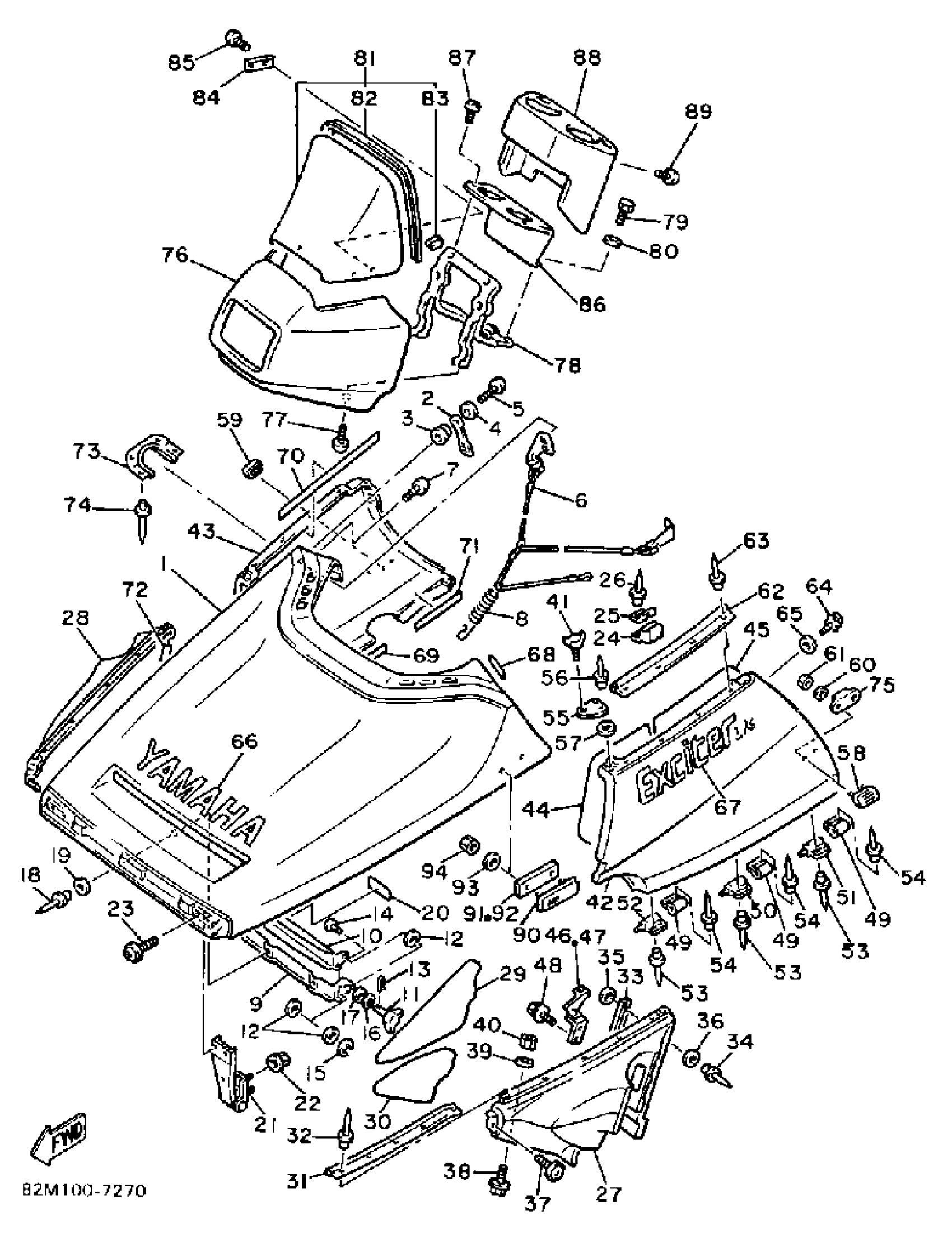

Yamaha EX570L (EXCITER) 1987 SHROUD - WINDSHIELD Diagram
#
1
SHROUD ASSEMBLY (82M-W7711-00)
82M-W7711-02-00
Unavailable
2
BODY, LATCH 1
8V0-77171-00-00
$21.99
3
COLLAR (420)
90387-06241-00
$8.49
4
WASHER, PLATE 8221447500
90201-06057-00
$5.60
5
SCREW, BINDING
98907-06025-00
$8.49
6
STOPPER, SHROUD
82M-77118-00-00
Unavailable
7
SCREW, BINDING
98907-06012-00
$9.49
8
CLAMP, ROD
80L-77159-00-00
Unavailable
9
STAY 1
82M-77125-00-00
Unavailable
10
STAY 2
82M-77126-00-00
Unavailable
11
BOLT, WING(8W1)
90122-05022-00
$7.49
12
. WASHER, PLATE
90202-05088-00
Unavailable
13
PIN, HAIR 6474123500
90468-10003-00
$1.96
14
PIN
90249-05136-00
Unavailable
15
CIRCLIP (EU0)
99080-04600-00
Unavailable
16
WASHER(3SX)
92907-05100-00
Unavailable
17
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
18
RIVET (856)
90267-48014-00
Unavailable
19
WASHER, PLATE (34L)
90201-043H7-00
Unavailable
20
LABEL,WARNING 2
8BE-77762-00-00
Unavailable
21
HINGE ASSEMBLY
82M-77140-00-00
Unavailable
22
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
23
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
24
STOPPER
8V0-77188-00-00
Unavailable
25
WASHER, SPECIAL
8V0-77116-01-00
Unavailable
26
RIVET, BLIND
90267-40029-00
Unavailable
27
HOOD 1
82M-21982-00-00
Unavailable
28
HOOD 2
82M-21983-00-00
Unavailable
29
DAMPER, NOISE 12
82M-77272-00-00
Unavailable
30
DAMPER, NOISE 13
82M-77273-00-00
Unavailable
31
BUSH, RUBBER 1
82M-77515-00-00
Unavailable
32
RIVET(81E)
90269-05055-00
Unavailable
33
TRIM 1
82M-2196T-00-00
Unavailable
34
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
35
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
36
WASHER, PLATE (8M6)
90201-047A2-00
Unavailable
37
SCREW, WITH WASHER
90159-05137-00
Unavailable
38
BOLT, WITH WASHER(81H)
90119-06118-00
Unavailable
39
WASHER(6TA)
92907-06200-00
Unavailable
40
NUT, NYLON
95707-06300-00
Unavailable
41
BOLT, WING
90122-06015-00
Unavailable
42
HOOD 3
82M-2197H-00-00
Unavailable
43
HOOD 4
82M-2198H-00-00
Unavailable
44
DAMPER, NOISE 14
82M-77274-01-00
Unavailable
45
DAMPER, NOISE 15
82M-77275-00-00
Unavailable
46
BRACKET 3
82M-2196F-00-00
Unavailable
47
BRACKET 4
82M-2196G-00-00
Unavailable
48
BOLT, FLANGE
95812-06010-00
Unavailable
49
BRACKET, 1
8V0-2194X-00-00
Unavailable
50
BRACKET 2
88R-2195X-00-00
Unavailable
51
BRACKET 2
88R-2195X-00-00
Unavailable
52
BRACKET 2
82M-2195X-00-00
Unavailable
53
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
54
RIVET, BLIND (8J5)
90267-48057-00
Unavailable
55
STAY 3
82M-77127-00-00
Unavailable
56
RIVET, BLIND (8H4)
90267-48053-00
Unavailable
57
WASHER, PLATE
90201-04027-00
Unavailable
58
PROTECTOR 1
8V0-77551-00-00
Unavailable
59
PROTECTOR 2
8V0-77552-00-00
Unavailable
60
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
61
NUT, NYLON
95707-05300-00
Unavailable
62
BUSH, RUBBER 2
82M-77516-00-00
Unavailable
63
RIVET(81E)
90269-05055-00
Unavailable
64
HOLDER, LATCH
8V0-77175-00-00
Unavailable
65
PLATE
4U5-2176E-00-00
Unavailable
66
ORNAMENT 1
82M-77163-00-00
Unavailable
67
ORNAMENT 2
82M-77164-00-00
Unavailable
68
INDICATOR 2
82M-77742-00-00
Unavailable
69
TAPE 1
82M-7717E-00-00
Unavailable
70
TAPE 2
82M-7717F-01-00
Unavailable
71
TAPE 3
82M-7717G-01-00
Unavailable
72
TAPE 3
8V0-7717G-00-00
Unavailable
73
PATCH 10
82M-21997-00-00
Unavailable
74
RIVET, BLIND
90267-48101-00
Unavailable
75
DAMPER 1
82M-77198-01-00
Unavailable
76
FAIRING
80L-77231-01-00
Unavailable
77
SCREW, BINDING
98907-06010-00
Unavailable
78
STAY, FAIRING
82M-77241-00-00
Unavailable
79
BOLT, HEXAGON
97017-06030-00
Unavailable
80
WASHER, SPRING
92907-06100-00
Unavailable
81
WINDSHIELD
8BH-77210-00-XX
Unavailable
82
TRIM,UPPER
87K-77213-00-00
Unavailable
83
. FASTENER
80V-77223-00-00
Unavailable
84
WASHER 1
82M-77218-00-00
Unavailable
85
SCREW, PAN HEAD
98502-05006-00
Unavailable
86
BRACKET, METER
82M-83519-01-00
Unavailable
87
SCREW, BINDING
98907-06010-00
Unavailable
88
COVER, HEADLIGHT
82M-77251-00-00
Unavailable
89
SCREW, BINDING
98907-05016-00
Unavailable
90
REFLECTOR ASSEMBLY
81E-85110-00-00
Unavailable
91
BASE, REFLECTOR
82M-85115-00-00
Unavailable
92
BASE, REFLECTOR
82M-85115-50-00
Unavailable
93
WASHER, PLAIN (646)
92990-05600-00
Unavailable
94
NUT, NYLON
95707-05300-00
Unavailable
