Description

Price

1

OIL PUMP ASY

8AY-13101-00-00

Unavailable

2

. PLUG

90338-21100-00

Unavailable

3

BALL

93505-32002-00

$2.92

4

SPRING (278-13169-00)

90501-02018-00

$9.49

5

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$10.49

6

NOZZLE

353-13552-01-00

$9.99

7

CLIP (2A6)

90468-02025-00

$9.49

8

GASKET 137131870000

90430-04004-00

$9.49

9

SCREW, BINDING

98907-04020-00

Unavailable

10

WASHER, PLAIN (646)

92990-04600-00

$5.99

11

PLATE, ADJUSTING

137-13138-01-00

Unavailable

12

SHIM,PLUNGER

137-13137-00-03

$5.49

12

SHIM,PLUNGER

137-13137-00-05

$6.99

12

SHIM,PLUNGER

137-13137-00-10

$7.99

13

. UNAVAILABLE IN PRICE BOOK (92903-05100)

92990-09100-00

Unavailable

14

NUT, HEXAGON (663)

95380-05600-00

Unavailable

15

COVER, ADJUST PULLEY

8A5-13146-01-00

Unavailable

16

SCREW, PAN HEAD

98507-04018-00

Unavailable

17

PUMP CABLE ASSEMBLY

82M-26320-00-00

Unavailable

18

BOLT, SOCKET

91317-05016-00

Unavailable

19

GASKET, PUMP CASE

126-13116-01-00

Unavailable

20

CLIP (2A6)

90468-02025-00

$9.49

21

SHAFT, WORM

82M-13175-00-00

Unavailable

22

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

23

UNAVAILABLE IN PRICE BOOK

321-13176-00-00

Unavailable

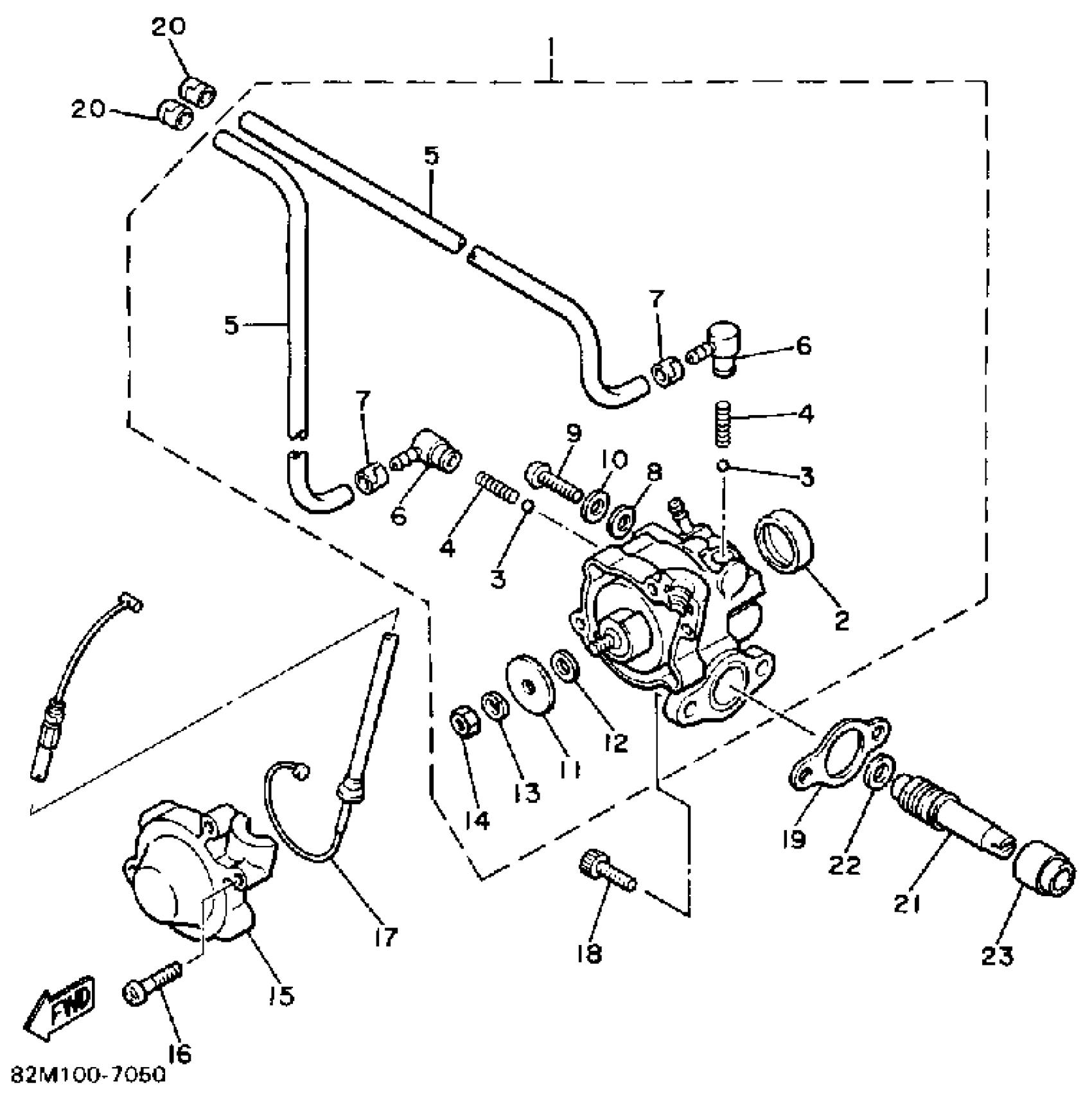

Yamaha EX570L (EXCITER) 1987 OIL PUMP Diagram

OIL PUMP ASY

. PLUG

BALL

SPRING (278-13169-00)

TUBE, FLEXIBLE VINYL(8AV)

NOZZLE

CLIP (2A6)

GASKET 137131870000

SCREW, BINDING

WASHER, PLAIN (646)

PLATE, ADJUSTING

SHIM,PLUNGER

SHIM,PLUNGER

SHIM,PLUNGER

. UNAVAILABLE IN PRICE BOOK (92903-05100)

NUT, HEXAGON (663)

COVER, ADJUST PULLEY

SCREW, PAN HEAD

PUMP CABLE ASSEMBLY

BOLT, SOCKET

GASKET, PUMP CASE

CLIP (2A6)

SHAFT, WORM

WASHER, PLATE (1E7)

UNAVAILABLE IN PRICE BOOK
