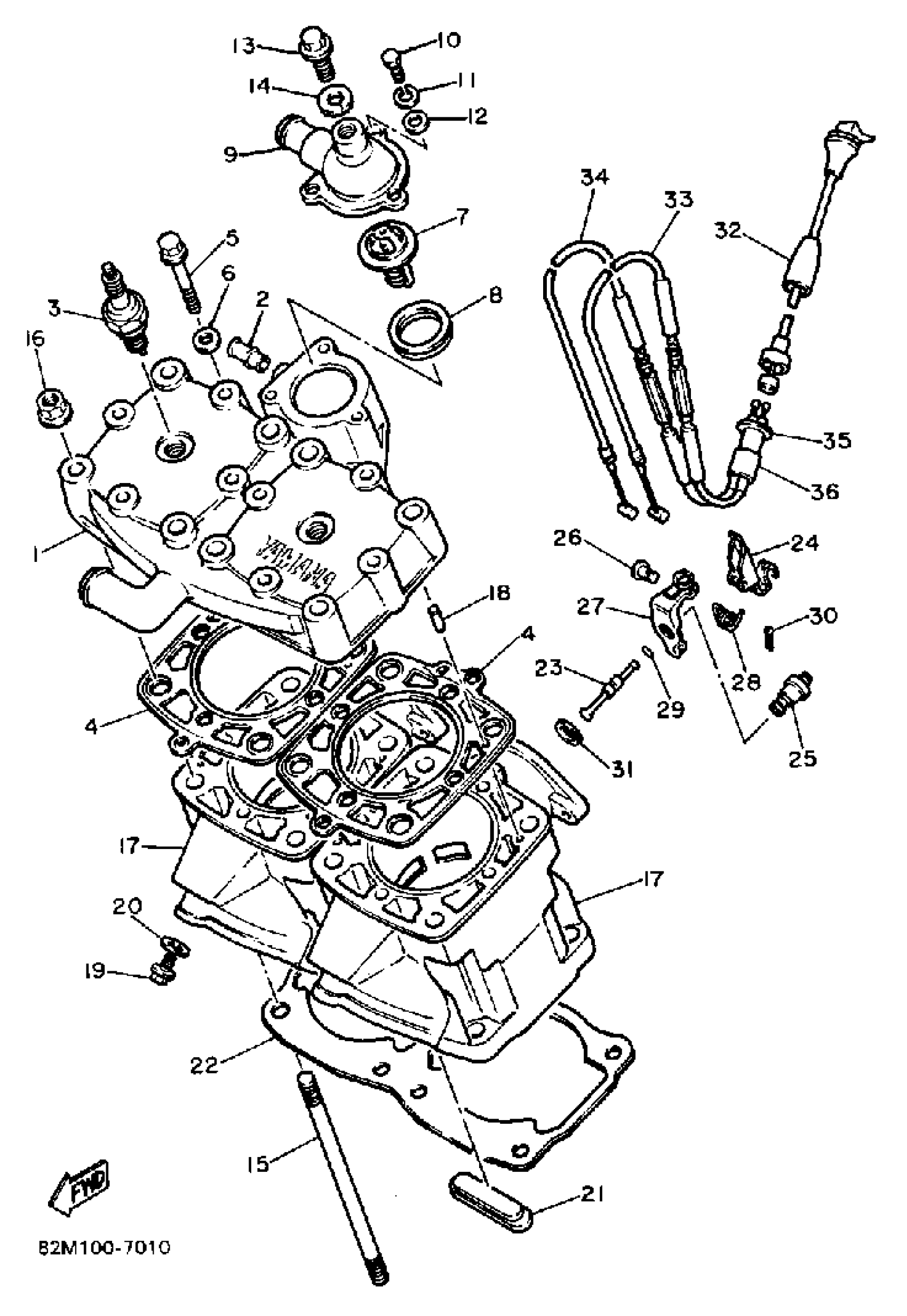

Yamaha EX570L (EXCITER) 1987 CYLINDER HEAD - CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

82M-11111-00-00

Unavailable

2

JOINT

8A7-12499-00-00

Unavailable

3

BR9ES NGK SCREW TOP PLUG 4PK

BR9-ES000-00-00

Unavailable

4

GASKET, CYLINDER HEAD 1

82M-11181-01-00

Unavailable

5

BOLT, FLANGE

95817-08060-00

$3.76

6

WASHER, PLATE

90201-080L7-00

$4.82

7

THERMOSTAT

82M-12411-00-00

$75.99

8

SEAL, THERMOSTAT

8A7-12412-01-00

$16.49

9

COVER, THERMOSTAT

82M-12413-00-00

Unavailable

10

BOLT, FLANGE

95026-10016-00

Unavailable

10

BOLT, HEXAGON

97017-06025-00

$4.24

11

WASHER, SPRING

92995-06100-00

Unavailable

12

WASHER, PLAIN (646)

92990-06600-00

$2.80

13

BOLT, FLANGE

95817-06012-00

$1.43

14

GASKET (4V2)

90430-06166-00

$3.76

15

BOLT, CYLINDER HOLDING 1

8M6-11361-00-00

Unavailable

16

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

17

CYLINDER 1

82M-11311-00-00

Unavailable

18

PIN,DOWEL (168)

93604-12037-00

Unavailable

20

WASHER PLATE 341839090000

90201-10128-00

Unavailable

21

SEAL, CYLINDER 1

47X-11355-00-00

Unavailable

22

GASKET, CYLINDER

87M-11351-02-00

Unavailable

23

VALVE, DCOMP

822-12281-00-00

Unavailable

24

LEVER, DCOMP

275-12282-01-00

Unavailable

25

BRACKET, DCOMP

822-12283-00-00

Unavailable

26

PIN, CLEVIS

90240-03002-00

Unavailable

27

HOLDER, CABLE

812-12273-01-00

Unavailable

28

SPRING, TORSION

90508-10183-00

Unavailable

29

O-RING (210)

93210-04092-00

Unavailable

30

PIN, COTTER

91490-16020-00

Unavailable

31

GASKET

812-11198-00-00

Unavailable

32

CABLE, DCOMP

82M-12292-01-00

Unavailable

33

WIRE, DECOMP 1

82M-2632A-00-00

Unavailable

34

WIRE, DECOMP 2

82M-2632E-00-00

Unavailable

35

CONNECTER, CABLE

4U1-26261-00-00

Unavailable

36

CAP

5L6-26272-00-00

Unavailable
