CARBURETOR

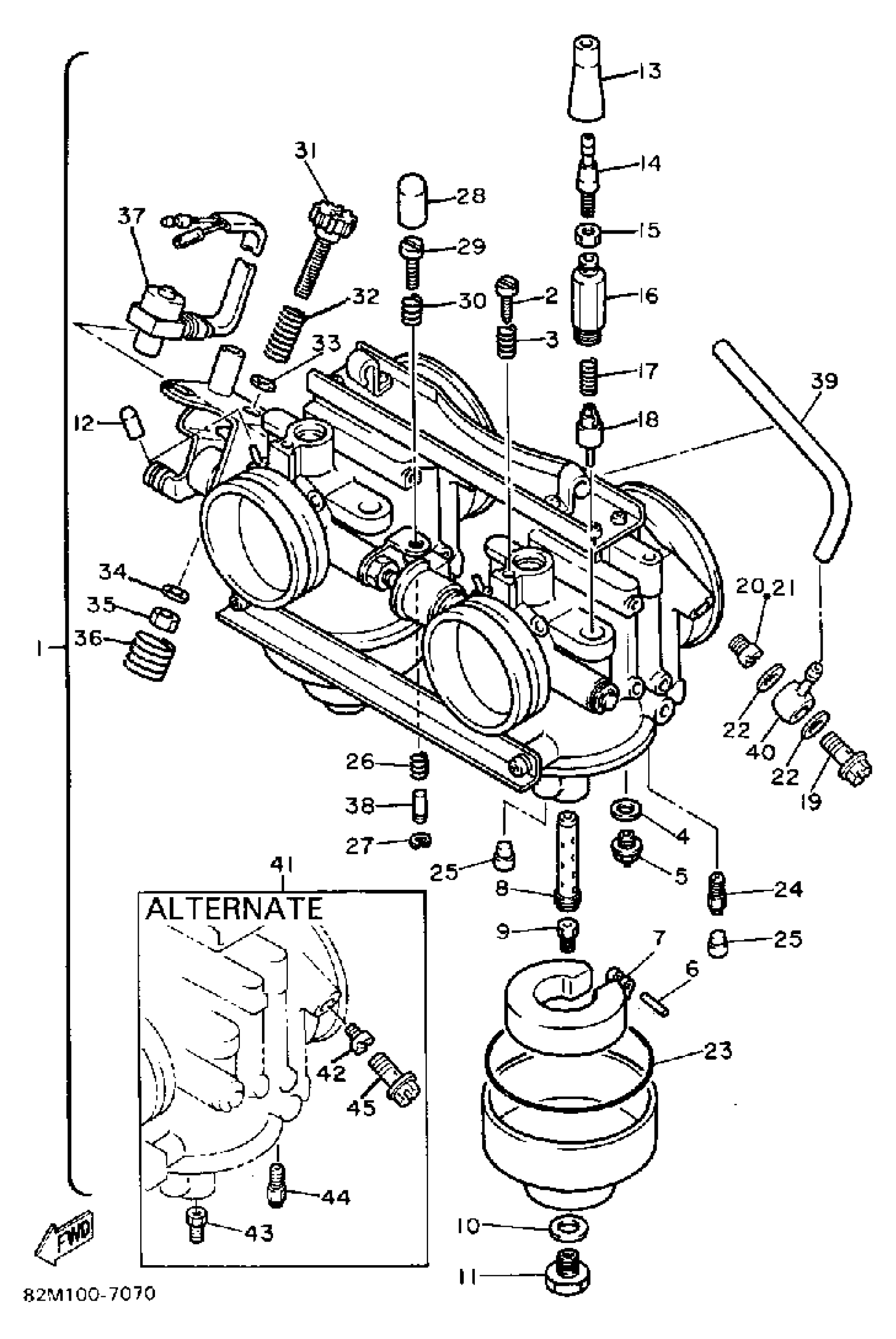

Yamaha EX570L (EXCITER) 1987 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY
82M-14100-00-00
Unavailable
2
. SCREW, PILOT ADJUST
82M-14211-00-00
Unavailable
3
SPRING, AIR ADJUSTING
82A-14134-00-00
$8.99
4
WASHER, VALVE SEAT
214-14195-00-00
$7.99
5
VALVE SEAT ASSY
168-14190-15-00
$42.99
6
PIN,FLOAT
8M6-14186-00-00
$9.49
7
FLOAT ASSY
8M6-14185-00-00
$91.99
8
. NOZZLE, MAIN
8Y2-14941-4A-00
Unavailable
9
. MAIN JET #1325 (#1325)
3G2-1414A-77-00
Unavailable
9
JET,MAIN #142.5
3G2-1423A-79-00
$11.99
9
JET, MAIN (#138.8)
3G2-1423E-55-00
$13.49
9
JET MAIN (#143.8)
3G2-1423E-57-00
$16.49
9
JET, MAIN (#130)
3G2-14231-26-A0
$10.99
9
JET, MAIN (#135)
3G2-14231-27-00
$13.49
9
JET, MAIN (#140)
3G2-14231-28-00
$15.49
10
GASKET
286-14198-00-00
Unavailable
11
HOLDER
8M6-14261-00-00
Unavailable
12
CAP
895-14169-00-00
Unavailable
13
CAP
8A7-14169-00-00
Unavailable
14
CABLE ADJUST SCREW SET
12G-14106-00-00
Unavailable
15
NUT, WIRE ADJUSTING
802-14161-00-00
Unavailable
16
. CAP, PLUNGER
82M-14174-00-00
Unavailable
17
SPRING, PLUNGER
127-14135-00-00
Unavailable
18
PLUNGER, STARTER
8G8-14171-00-00
Unavailable
19
. POWER JET (13) (13)
82M-14172-13-00
Unavailable
19
. POWER JET (20) (20)
82M-14172-20-00
Unavailable
20
. JET, MAIN (#1238)
3G2-1423E-49-00
Unavailable
21
JET, MAIN (#128.8)
3G2-1423E-51-00
Unavailable
22
WASHER
256-14956-01-00
Unavailable
23
GASKET, FLOAT CHAMBER
8M6-14126-00-00
Unavailable
24
. PILOT JET (#105) (#105)
193-1414F-05-00
Unavailable
24
. JET, PILOT #115 (#115) (193-1414F-15)
193-1414F-15-A1
Unavailable
24
. PILOT JET (#125) (#125)
193-1414F-25-00
Unavailable
24
. JET, PILOT (#130) (#130)
193-1414F-30-00
Unavailable
25
CAP
8V0-14118-00-00
Unavailable
26
. SPRING, ADJUSTER
584-14934-00-00
Unavailable
27
. CLIP
256-14937-00-00
Unavailable
28
. CAP
620-14225-00-00
Unavailable
29
. STOP SCREW SET
12R-1490K-00-00
Unavailable
30
. SPRING, THROTTLE STOP
3F7-14133-00-00
Unavailable
31
SCREW,THROTTLE
80L-14122-00-00
Unavailable
32
SPRING
8X0-14500-00-00
Unavailable
33
RING
8X0-14184-00-00
Unavailable
34
WASHER, PLUG SCREW
22F-14117-00-00
Unavailable
35
NUT
8X0-14358-00-00
Unavailable
36
SPRING, THROTTLE STOP
8X0-14133-00-00
Unavailable
37
SWITCH, CARBURETOR
87S-8259A-01-00
Unavailable
38
. ROD, PUSH
584-14992-00-00
Unavailable
39
. PIPE
82M-14197-00-00
Unavailable
40
. BOLT, BANJO
82M-14166-00-00
Unavailable
41
EX H1-ALT JET KIT
82M-14210-00-00
Unavailable
42
JET, MAIN (#130)
3G2-14231-26-A0
$10.99
43
. MAIN JET #1325 (#1325)
3G2-1414A-77-00
Unavailable
44
. JET, PILOT #115 (#115) (193-1414F-15)
193-1414F-15-A1
Unavailable
44
. PILOT JET (#125) (#125)
193-1414F-25-00
Unavailable
44
. JET, PILOT (#130) (#130)
193-1414F-30-00
Unavailable
45
. POWER JET (20) (20)
82M-14172-20-00
Unavailable
